Project Overview
As part of the Piccadilly Line Upgrade, Transport for London (TfL) embarked on a project to modernise the cable management system at Cockfosters Depot. The initiative aimed to replace aging infrastructure with a solution that was quick to install, durable, and compliant with stringent safety standards. Ellis Patents collaborated with Anchor Systems (International) Ltd and Arbourtech Services Ltd to deliver an innovative Cable Route Management System (CRMS) tailored to these requirements.

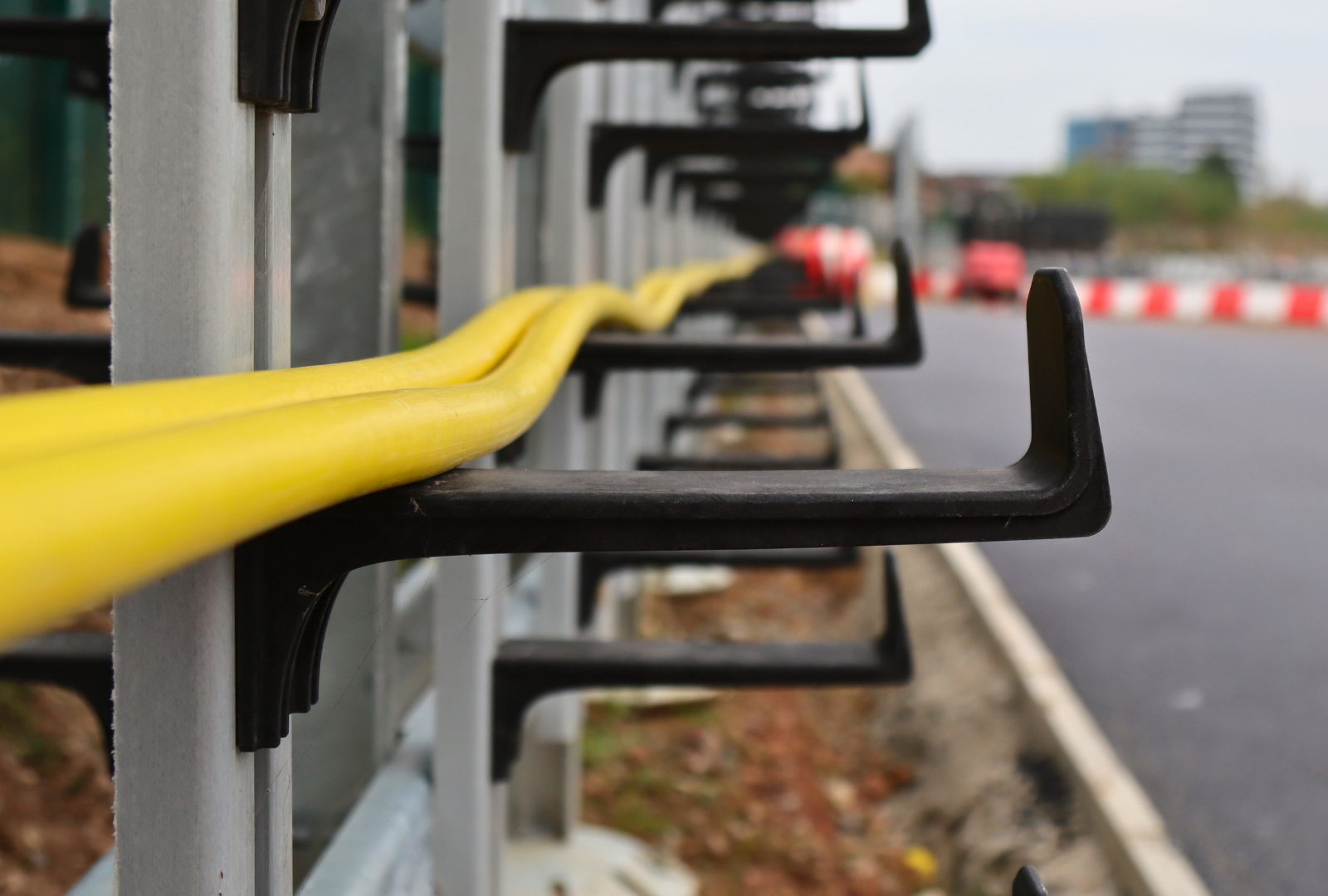

Ellis supplied the Pegasus® Composite Cable Hanger System, renowned for its strength and lightweight design. The hangers are constructed from high-strength glass-reinforced nylon, ensuring resistance to corrosion and suitability for harsh environments. The design allows for easy installation and adaptability to various cable configurations.
Collaborative Partnership
Anchor Systems (International) Ltd: Provided the patented domed anchor screws, forming the foundation of the CRMS. These anchors eliminate the need for concrete, allowing for rapid installation and minimal disruption to existing infrastructure.
Arbourtech Services Ltd: Manufactured the GRP posts that support the cable hangers. The posts are designed to integrate seamlessly with both the anchor screws and the Pegasus® hangers, ensuring a cohesive and robust system.
Implementation and Results

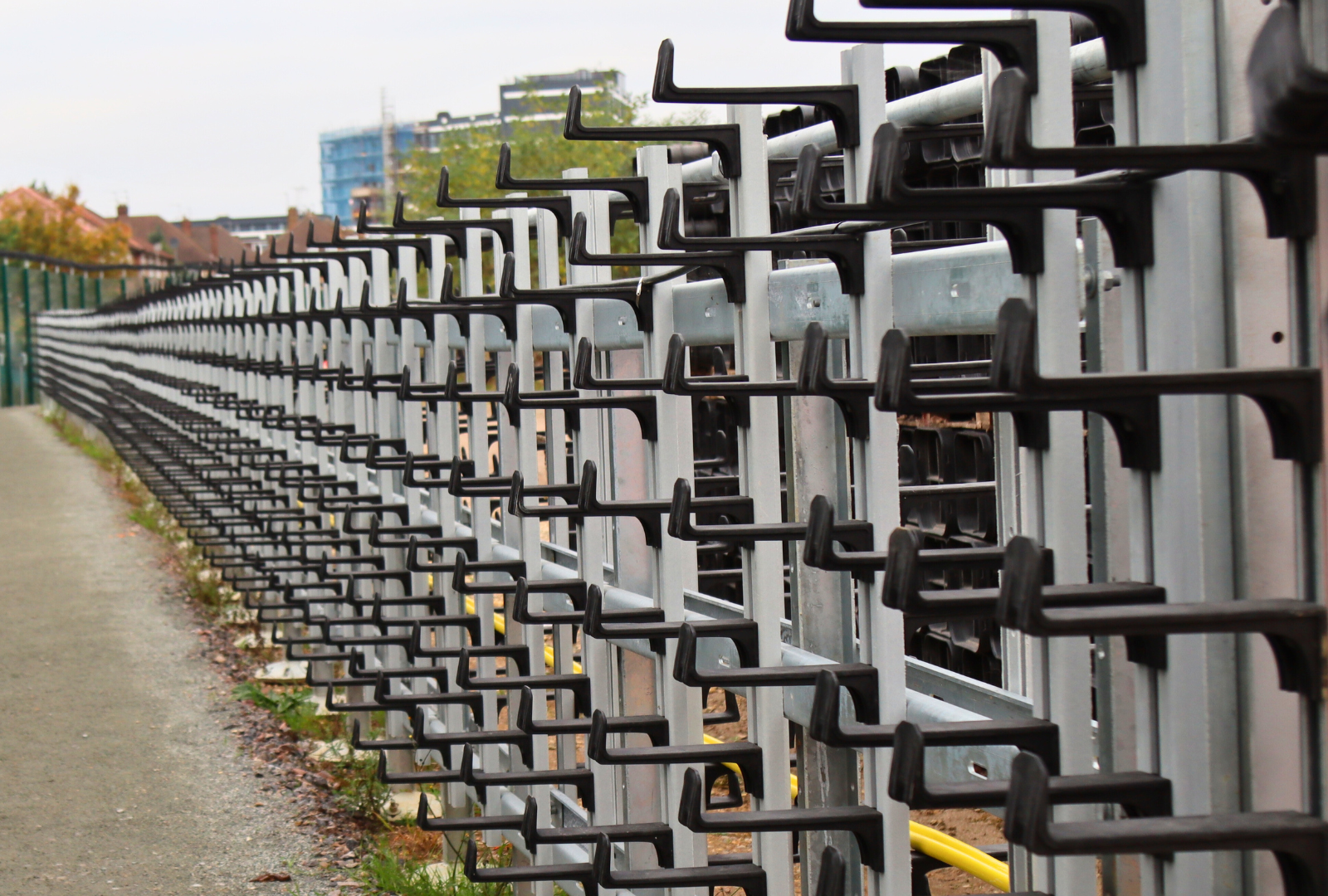

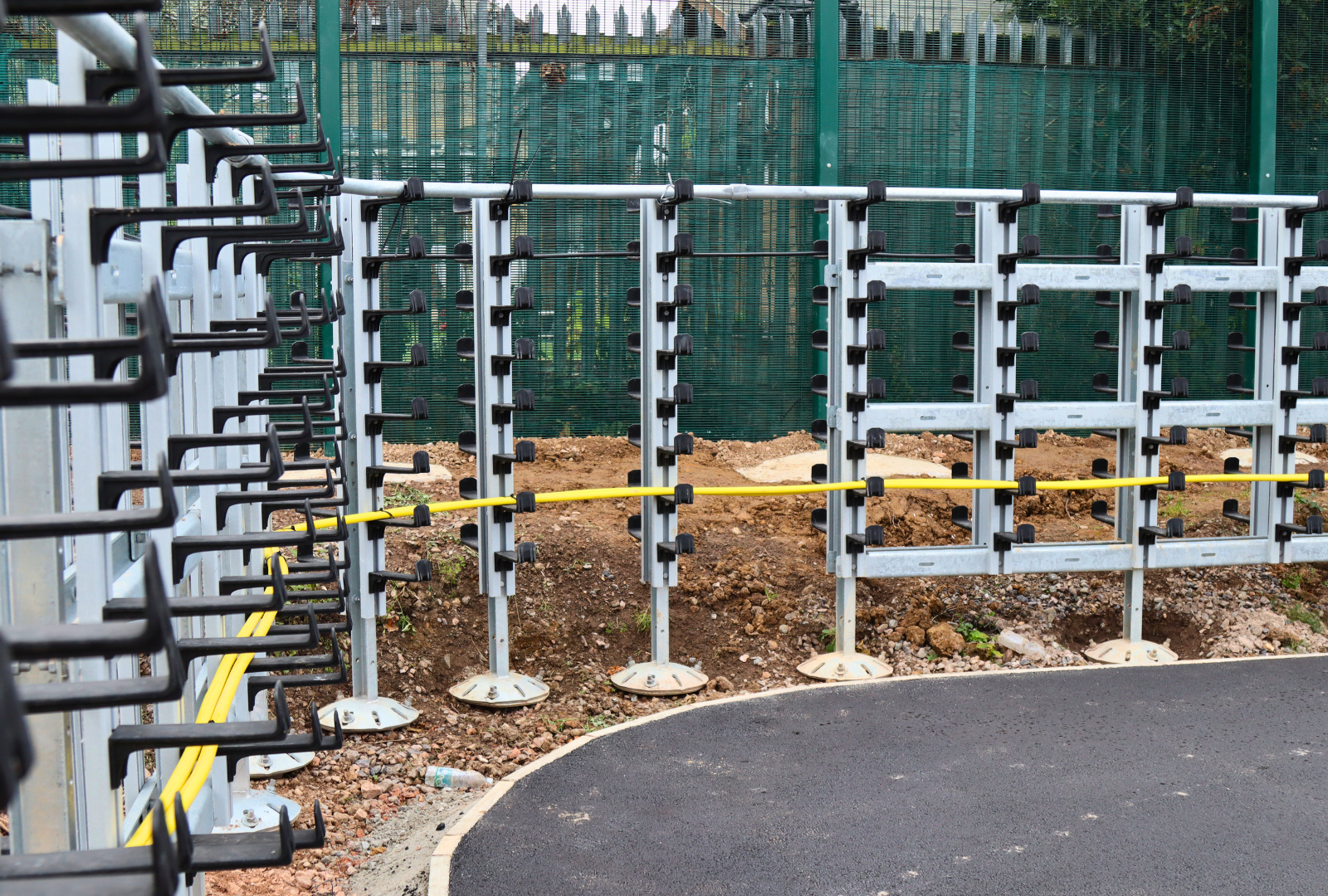

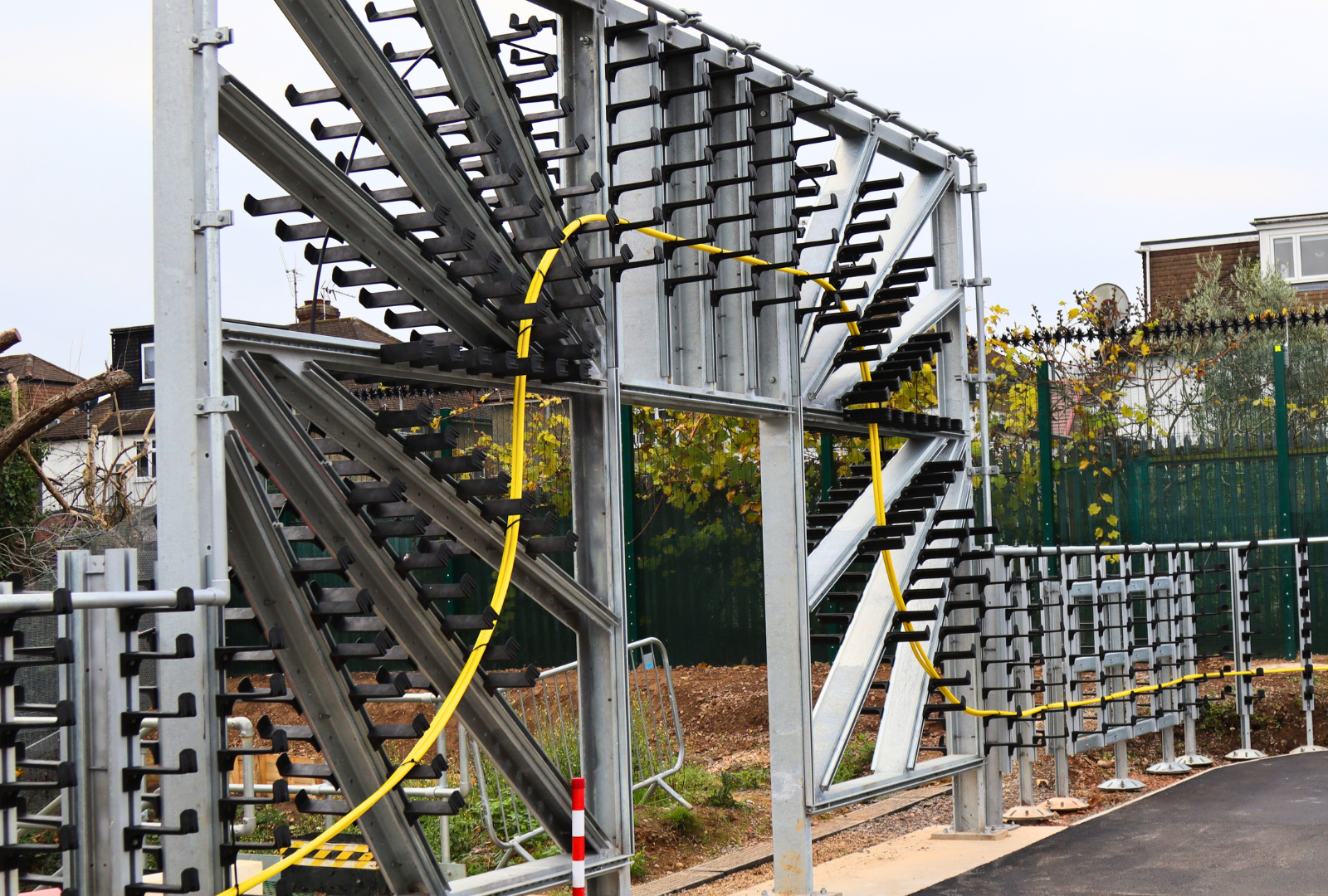

The integrated system was deployed along a 500-meter stretch at Cockfosters Depot. The use of domed anchor screws allowed for installation times of 4 to 8 minutes per anchor, depending on ground conditions, significantly reducing project timelines. The modularity of the Pegasus® hangers facilitated efficient cable management, accommodating various cable sizes and configurations. The entire system was installed without the use of concrete, minimising environmental impact and allowing for immediate load-bearing capacity.
Conclusion
The collaboration between Ellis Patents, Anchor Systems, and Arbourtech Services Ltd resulted in a state-of-the-art cable management solution that met TfL's stringent requirements. The success of the project at Cockfosters Depot demonstrates the efficacy of the Pegasus® Composite Cable Hanger System in modern rail infrastructure projects, setting a benchmark for future installations.
