sector
Renewables
project type
Structure
location
South Korea
The customer sought Ellis’s help for a cable support solution in a constrained joint bay.
Limited space and multiple cables needed accommodation.
Structures required in kit form due to site and shipping limitations.
Ellis modelled the available space and designed steel structures to support cables and handle the required loads.

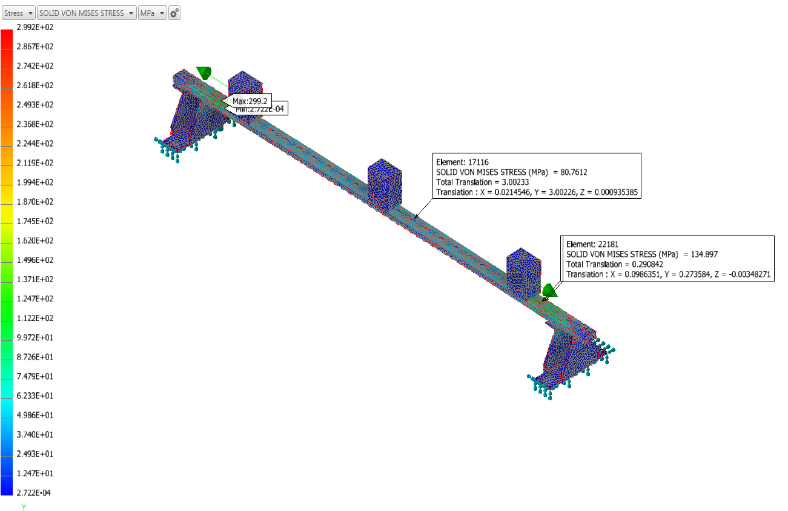

Validated designs through hand calculations and FEA software.
Conducted load testing for structural performance verification.

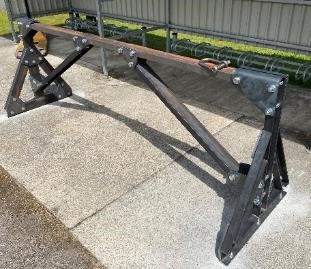

Manufactured from galvanised steel and bolted together.
Provided structures in kit format for on-site assembly.
