Fort Randall Dam Pipe Cable System Replacement Project

sector

Power Generation

project type

Innovation

location

USA

Situation

Situation

  • US Army Corps of Engineers (USACE) required an upgrade to the Fort Randall Dam cable systems so that they could accommodate the thermodynamic movement of the cables.

  • USACE and Interstate Electrical Contractors Inc. had no prior experience of managing something like this so sought assistance from Ellis.

  • Additional challenge: Limited space for installing 12 cables on the existing framework. Standard cable cleats were not an option.

Solution

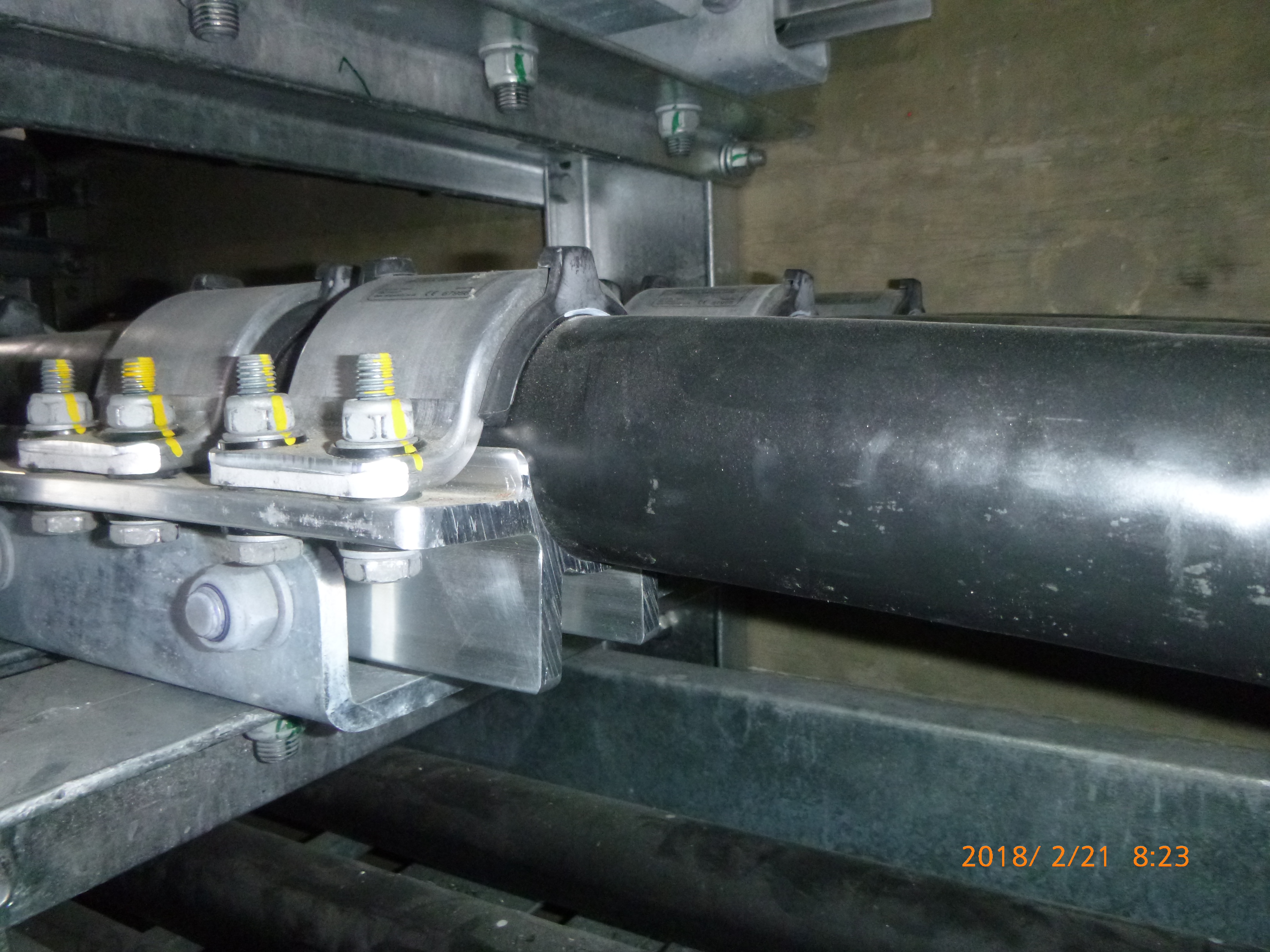

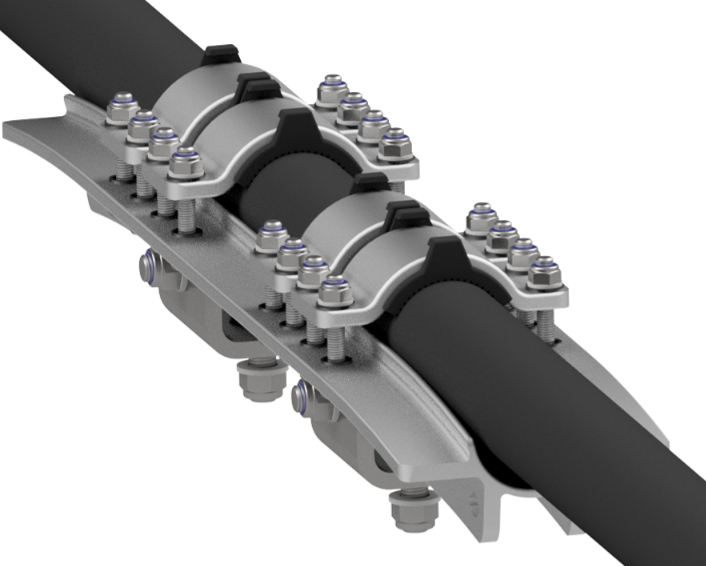

  • Ellis developed a custom version of the Centaur Cable Saddle with a 68-73mm cable range.

  • Anchor Clamps were also designed to secure cables along the multiple bends and risers on the route.

  • The Centaur Roller System was provided to aid installation.
