TWO WAY SINGLE FIXING CABLE CLEAT
Data sheet DS77E
Manufactured as standard in Black Polypropylene (B) & Grey Flame Retardant Polypropylene (FR).
A robust cleat used for securing two armoured power cables on flat surfaces.

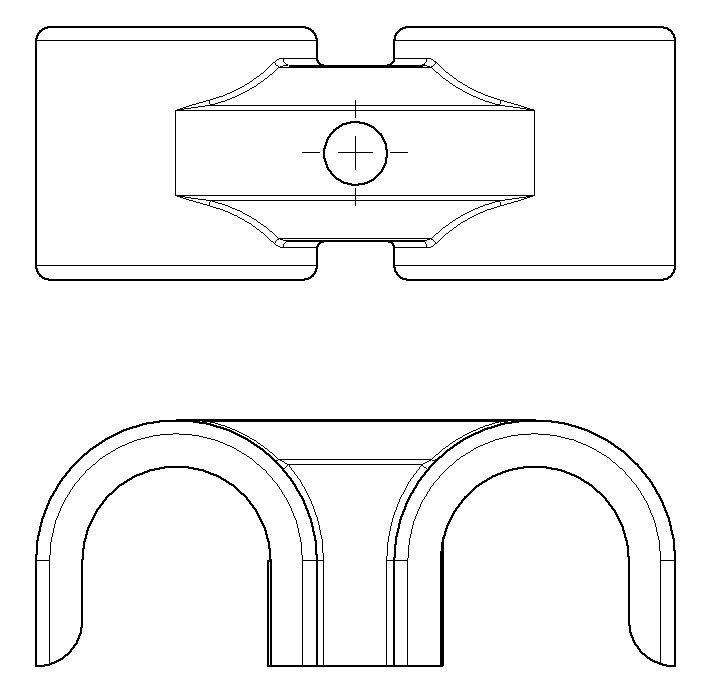

Detailed drawings can be provided on request.
| PART NO. | MATERIAL SUFFIX | CABLE Ø (mm) | FIXING HOLES (mm) | PACK QTY. | WEIGHT (g) |
|---|---|---|---|---|---|
| 2W37 | B | 9.4 | 4 | 100 | 2.2 |
| 2W42 | B or FR | 10.6 | 4 | 100 | 3.3 |
| 2W46 | B or FR | 11.7 | 4 | 100 | 3.6 |
| 2W53 | B or FR | 13.5 | 4 | 100 | 4.0 |
| 2W56 | B or FR | 14.2 | 4 | 100 | 5.0 |
