2A TWO HOLE CABLE CLAMP
Data sheet DS17E
2A Two Hole Cable Clamp
Single cable formation
Standard duty cable clamp for single cable formation
Cable range of Ø32mm – Ø168mm
Cast LM6 aluminium
Optional Low Smoke and Fume Zero Halogen (LSF0H), Phosphorus Free polymeric liners available, for increased cable protection
Optional epoxy coating available for harsh or corrosive environments
Fixing options: two fixings required, sizing shown in table below. Fixings are not supplied as standard but are available on request
Designed, tested and manufactured in accordance with IEC 61914
For the linered version add L as a suffix to the part no.
E.g. 2A-07NL.

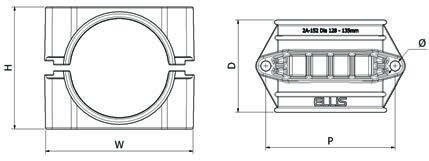

| Part No. | Cable Range | Liner Thickness (mm) | Cable Range with Liner | Dimensions (mm) | Weight (g) | Axial Load | Lateral Load - Horizontal | Lateral Load - Vertical | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min Ø (mm) | Max Ø (mm) | Min Ø (mm) | Max Ø (mm) | W | H | D | P | Ø | ||||||
| 2A-07N | 38 | 46 | 3 | 32 | 40 | 94 | 48-57 | 49 | 68 | 2 x M10 | 174 | 800N | 12.5kN | 25kN |
| 2A-08N | 46 | 51 | 3 | 40 | 45 | 104 | 54-60 | 49 | 79 | 2 x M10 | 214 | 800N | 12.5kN | 25kN |
| 2A-09N | 51 | 57 | 3 | 45 | 51 | 105 | 61-68 | 49 | 79 | 2 x M10 | 224 | 800N | 12.5kN | 25kN |
| 2A-10N | 57 | 64 | 3 | 51 | 58 | 105 | 68-76 | 49 | 79 | 2 x M10 | 234 | 800N | 12.5kN | 25kN |
| 2A-11N | 64 | 70 | 3 | 58 | 64 | 133 | 74-80 | 64 | 106 | 2 x M10 | 360 | 1300N | 12.5kN | 25kN |
| 2A-1200N | 70 | 76 | 3 | 64 | 70 | 133 | 80-87 | 64 | 106 | 2 x M10 | 376 | 1300N | 12.5kN | 25kN |
| 2A-1201N | 76 | 83 | 3 | 70 | 77 | 133 | 87-95 | 64 | 106 | 2 x M10 | 388 | 1300N | 12.5kN | 25kN |
| 2A-1202N | 83 | 90 | 3 | 77 | 84 | 133 | 94-102 | 64 | 106 | 2 x M10 | 392 | 1300N | 12.5kN | 25kN |
| 2A-131N | 90 | 97 | 4 | 82 | 89 | 154 | 101-109 | 76 | 126 | 2 x M10 | 520 | 1500N | 12.5kN | 25kN |
| 2A-132N | 97 | 105 | 4 | 89 | 97 | 154 | 109-118 | 76 | 126 | 2 x M10 | 524 | 1500N | 12.5kN | 25kN |
| 2A-141N | 105 | 112 | 4 | 97 | 104 | 165 | 118-126 | 76 | 135 | 2 x M10 | 590 | 1500N | 12.5kN | 25kN |
| 2A-142N | 112 | 120 | 4 | 104 | 112 | 173 | 124-133 | 76 | 143 | 2 x M10 | 642 | 1500N | 12.5kN | 25kN |
| 2A-151N | 120 | 128 | 5 | 110 | 118 | 196 | 148-157 | 125 | 168 | 2 x M12 | 1700 | 5.5kN | 20kN | 50kN |
| 2A-152N | 128 | 135 | 5 | 118 | 125 | 203 | 158-166 | 125 | 176 | 2 x M12 | 1840 | 5.5kN | 20kN | 50kN |
| 2A-161N | 135 | 144 | 5 | 125 | 134 | 222 | 168-178 | 150 | 190 | 2 x M16 | 2633 | 6kN | 35kN | 60kN |
| 2A-162N | 144 | 152 | 5 | 134 | 142 | 232 | 179-188 | 150 | 200 | 2 x M16 | 2856 | 6kN | 35kN | 60kN |
| 2A-171N | 152 | 160 | 5 | 142 | 150 | 242 | 190-199 | 150 | 210 | 2 x M16 | 3089 | 6kN | 35kN | 60kN |
| 2A-172N | 160 | 168 | 5 | 150 | 158 | 252 | 201-210 | 150 | 220 | 2 x M16 | 3332 | 6kN | 35kN | 60kN |
2A TWO HOLE CABLE CLAMP
Data sheet DS17E
Testing Summary
2A Clamps have been tested in line with the International Standard “Cable Cleats for Electrical Installations” IEC 61914. Typical results are detailed below, please note that these testing values are maximums and safety factors appropriate to your application should be used:
| Property Classification | Clause IEC 61914 | Units / Classification | Test Data |
|---|---|---|---|
| Cleat type | 6.1, 6.1.3 | Metallic | - |
| Temp. for permanent application | 6.2 | °C | -40 to +90 |
| UV resistance | 6.5.1.2 | N/A | - |
| Corrosion resistance | 6.5.2.2 | High | Aluminium is non-ferrous |
| Impact rating | 6.3.5 | Very heavy | Pass |
| Flame propagation test | 10.0, 10.1 | Application time ≥30s | N/A |
| Axial load | 6.4.3, 9.4 | Newtons (N) | Refer to Ellis |
| Lateral load rating | 6.4.2, 9.3 | Newtons (N) | Refer to Ellis |
| Resistance to electromechanical force (short circuit testing) | 6.4, 6.4.4, 9.5 | Cleats at 300mm intervals (withstanding one short circuit) | 183kA (Report no. PDL-18.071.1) Cable OD= Ø36mm Phase spacing = 100mm |
| Resistance to electromechanical force (short circuit testing) | 6.4, 6.4.5, 9.5 | Cleats at 600mm intervals (withstanding more than one short circuit) | 113kA (Report no. PDL-15.025.1) Cable OD= Ø117mm Phase spacing = 200mm |
The test data provided above is for the standard version only, for test data with the liner option please contact Ellis.
Lateral load: vertical direction
Lateral load: horizontal direction
