TRIDENT™ WITH SPACER
Data sheet DS50E
Trident With Spacer

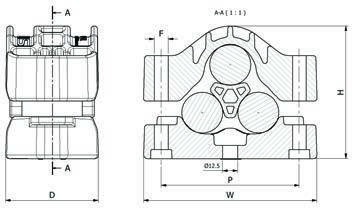

Trefoil formation
Standard duty cable cleat for spaced trefoil cable formation
The spacer piece ensures an equidistant cable spacing whilst providing a larger clamp range
Cable range of Ø29mm – Ø54mm
Low Smoke and Fume Zero Halogen (LSF0H), Phosphorus Free Nylon
Fixing options: Single or Twin Bolt fixing options, sizing shown in table below. Fixings are not supplied as standard but are available on request
Designed, tested and manufactured in accordance with IEC 61914
| Part No. | Cable Range with Spacer | Cable Range without Spacer | Dimensions (mm) | Weight (g) | Corresponding Trident | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Min Ø (mm) | Max Ø (mm) | Min Ø (mm) | Max Ø (mm) | W | H | D | P | F | |||
| TR29-41SP | 29 | 34 | 34 | 41 | 144 | 115 | 77 | 114.5 | M10 | 530 | TR34-41 |
| TR33-47SP | 33 | 39 | 39 | 47 | 156 | 127 | 77 | 125 | M12 | 618 | TR39-47 |
| TR41-54SP | 41 | 45 | 45 | 54 | 172 | 141 | 77 | 145 | M12 | 706 | TR45-54 |
Note: removal of the spacer piece can be utilised to provide a product with a large range take. Refer to standard trident data sheet.
TRIDENT™ WITH SPACER
Data sheet DS50E
Testing Summary
Trident Cleats have been tested in line with the International Standard ‘Cable Cleats for Electrical Installations’ IEC 61914. Typical results are detailed below, please note that these testing values are maximums and safety factors appropriate to your application should be used:
| Property | Classification Clause IEC 61914 | Units / Classification | Test Data |
|---|---|---|---|
| Cleat type | 6.1.2 | Non-metallic | - |
| Temp. for permanent application | 6.2 | °C | -40 to +120 |
| UV resistance | 6.5.1.2 | Xenon arc method A | Pass |
| Corrosion resistance | 6.5.2 | N/A | N/A |
| Impact rating | 6.3.5 | Very heavy | Heavy |
| Flame propagation test | 10.0, 10.1 | Application time ≥30s | Pass |
| Axial load rating | 6.4.3, 9.4 | Newtons (N) | Refer to Ellis |
| Lateral load rating | 6.4.2, 9.3 | Newtons (N) | Refer to Ellis |
| Resistance to electromechanical force (short circuit testing) | 6.4, 6.4.5, 9.5 | Cleats at 300mm intervals (withstanding more than one short circuit) | 106kA (Report No. PDL-21.085.3) Cable OD= Ø36mm Cable spacing = 50mm |
