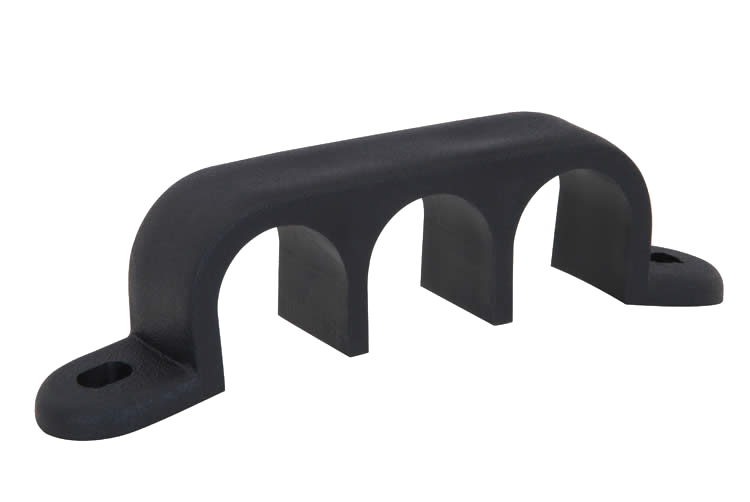

THREE & FOUR WAY DOUBLE FIXING CABLE CLEAT
Data sheet DS26E
Manufactured as standard in Black Polypropylene (B) & Grey Flame Retardant Polypropylene (FR).
A robust cleat used for securing three or four armoured power cables on flat surfaces.

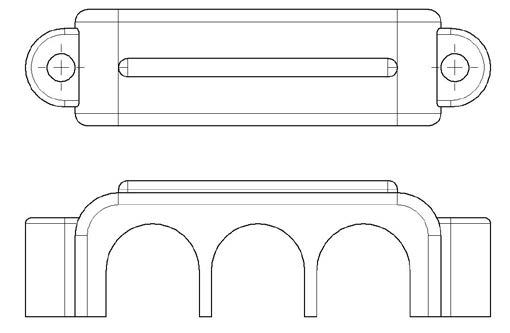

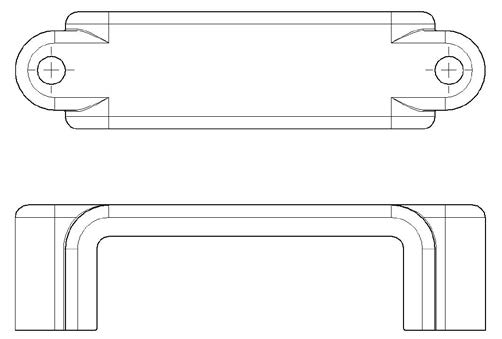

Detailed drawings can be provided on request.
| PART NO. | MATERIAL SUFFIX | CABLE Ø (mm) | FIXING HOLES (mm) | PACK QTY. | WEIGHT (g) |
|---|---|---|---|---|---|
| 3W46 | B or FR | 11.7 | 4 | 200 | 8.7 |
| 3W56 | B or FR | 14.2 | 4 | 200 | 9.3 |
| 4W10 | B | 4 x 15 | 4 | 100 | 9.5 |
