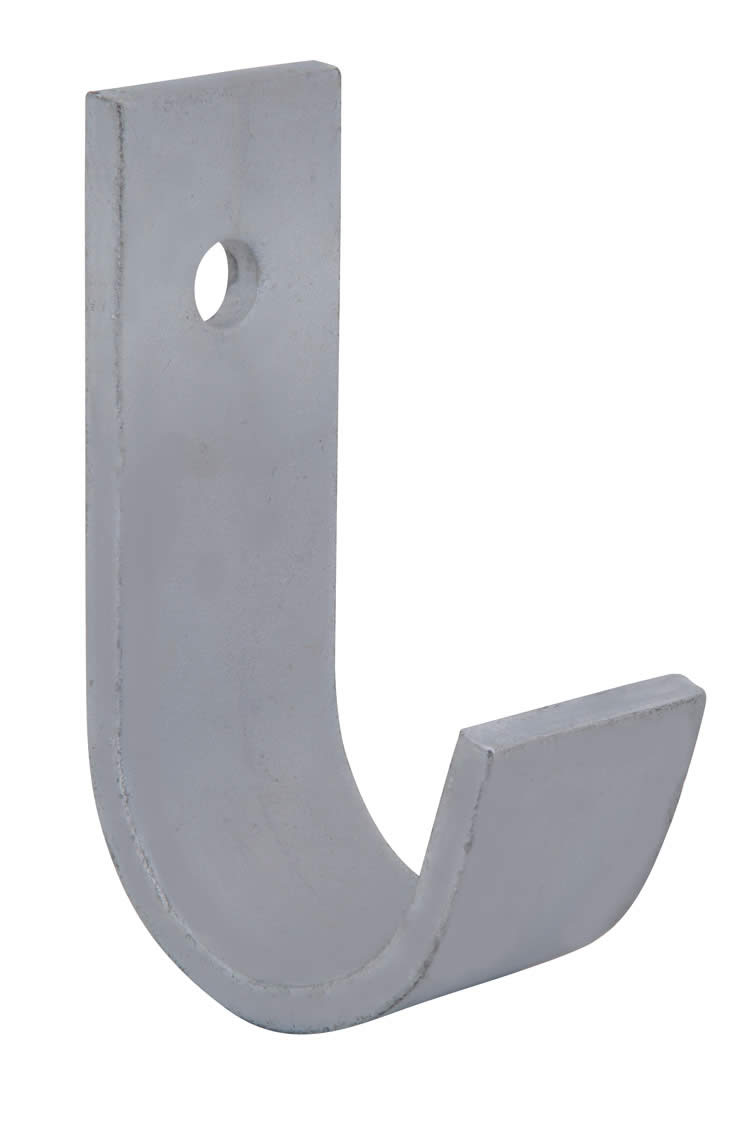

SUSPENSION HOOK
Data sheet DS48E
Manufactured in Mild Steel.
Hot-dipped galvanised after manufacture to BS EN ISO 1461:1999.
Special designs available on request.
Used to hang cables on walls and support structures.

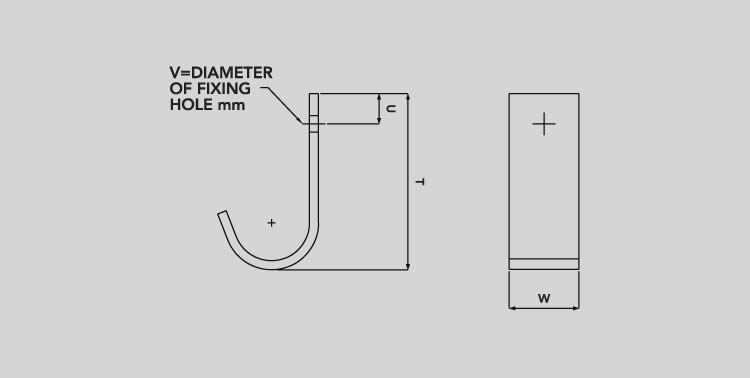

| Part No. | Max Cable Diameter (mm) | Dimensions (mm) | Material Size | Pack Qty | Weight | |||
|---|---|---|---|---|---|---|---|---|
| T | U | V | W | Thickness | ||||
| SHA1 | 50 | 105 | 25 | 11 | 40 | 6 | 1 | 320 |
| SHA2 | 75 | 120 | 25 | 13 | 50 | 6 | 1 | 490 |
| SHA3 | 100 | 155 | 25 | 13 | 50 | 6 | 1 | 640 |
