STRAND MARKERS
Data sheet DS56E

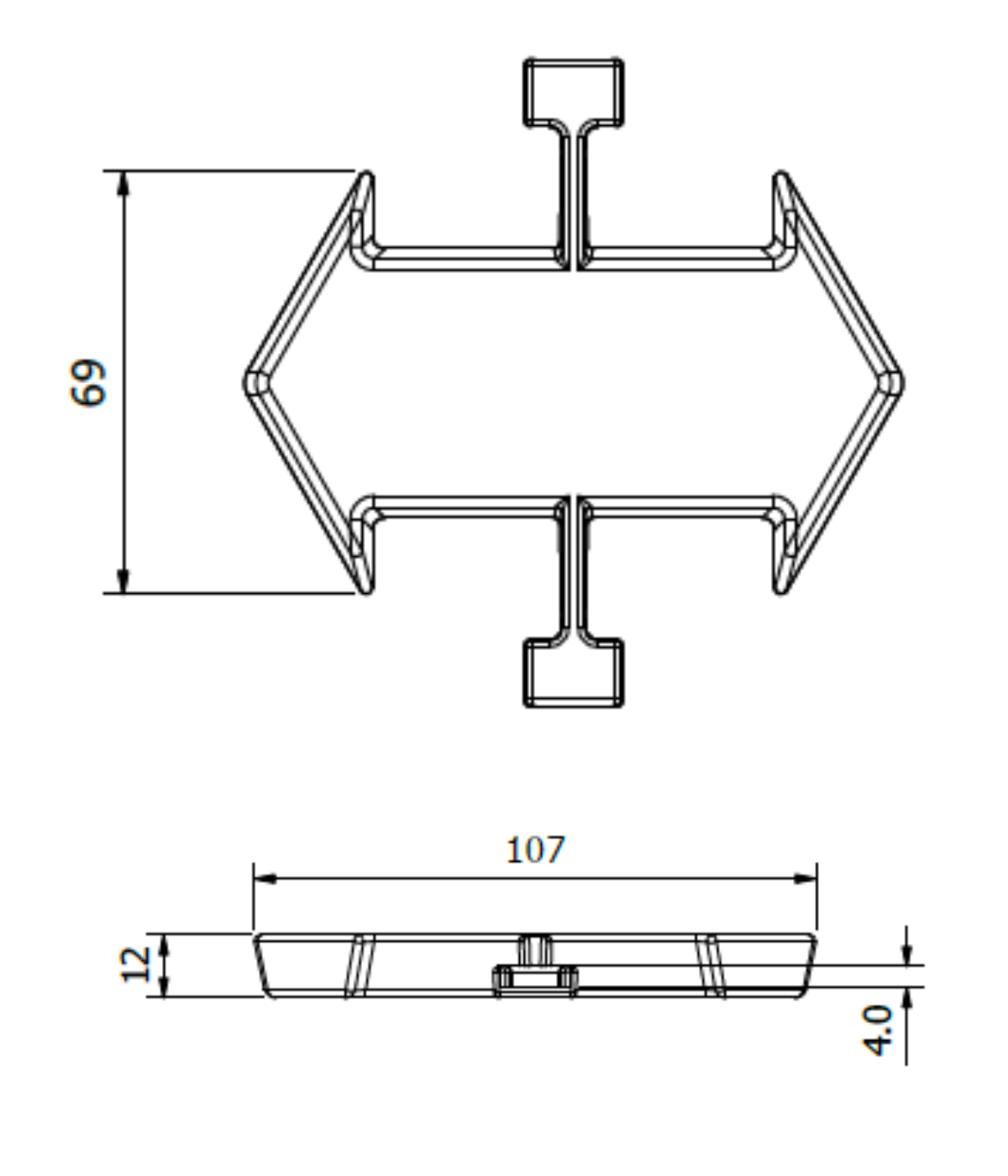

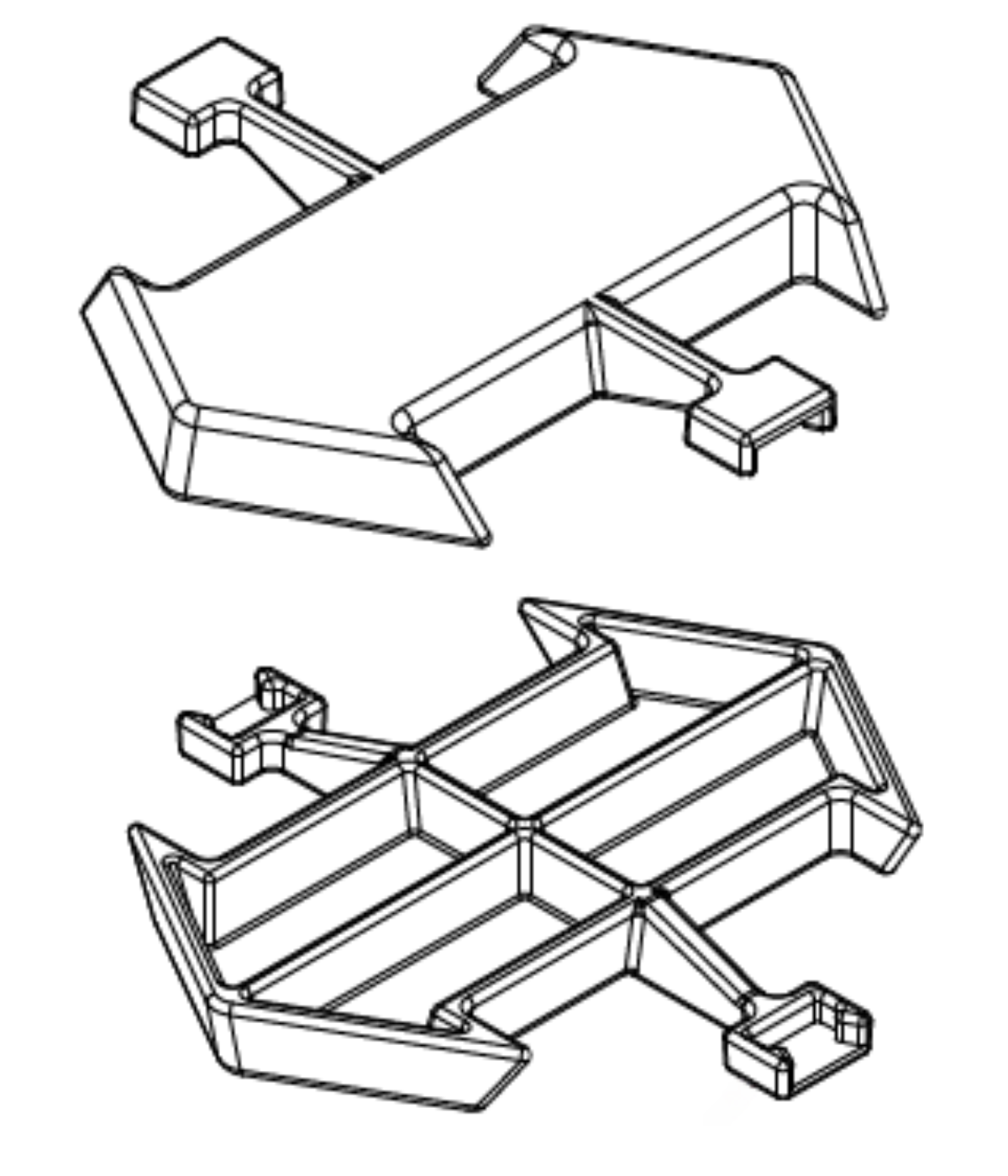

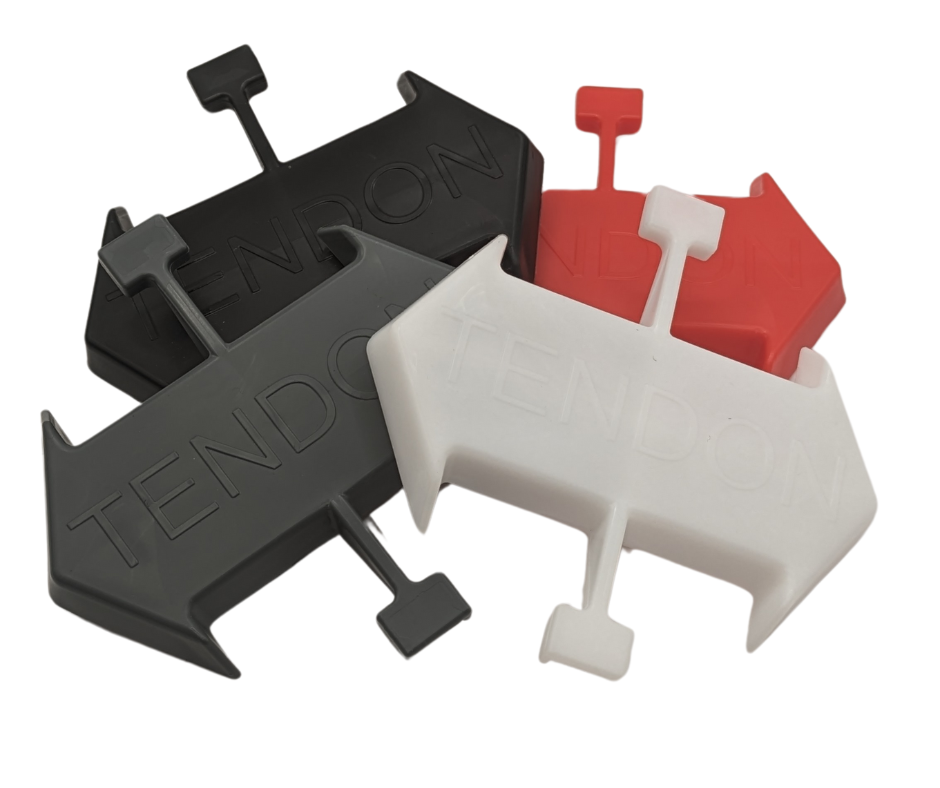

Large Strand Marker

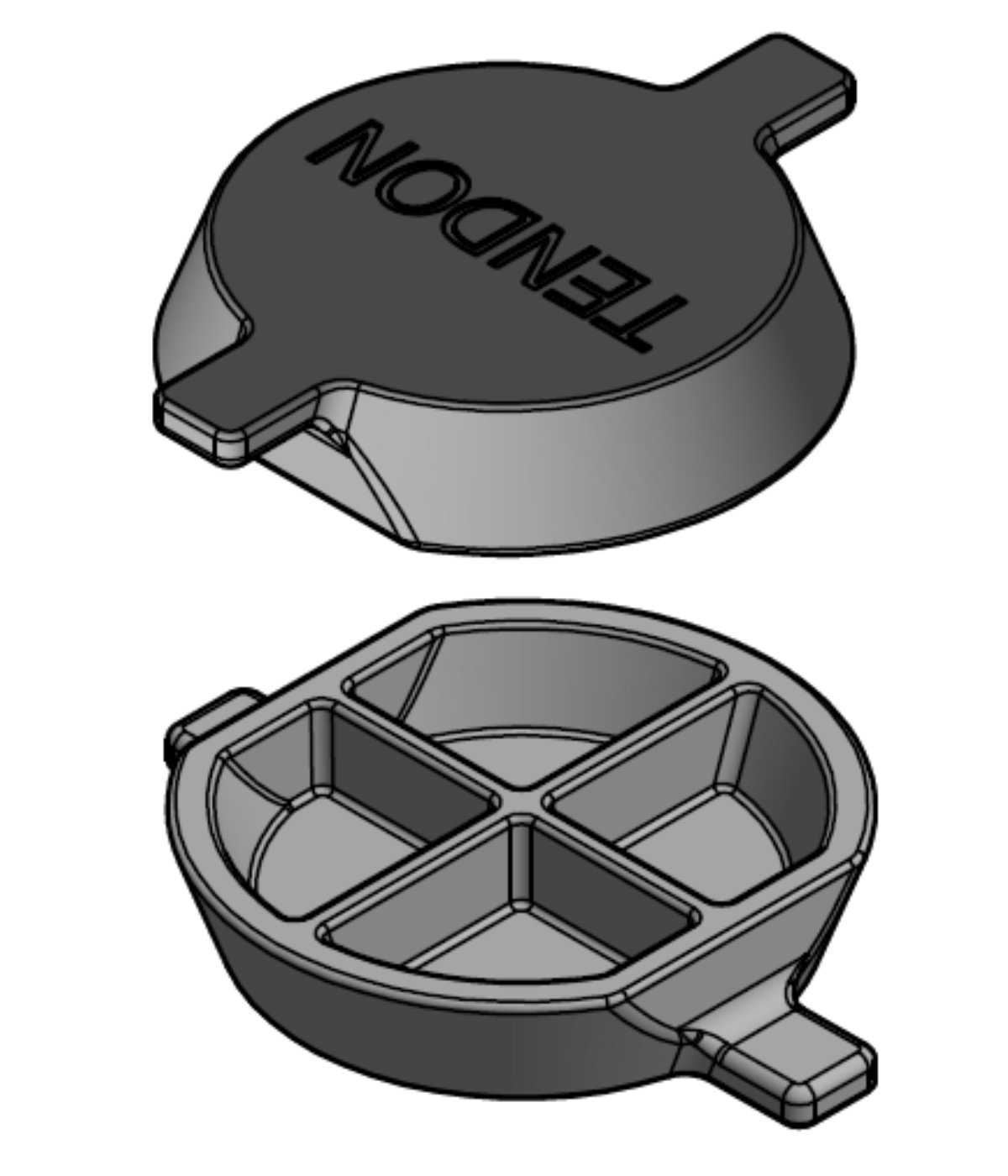

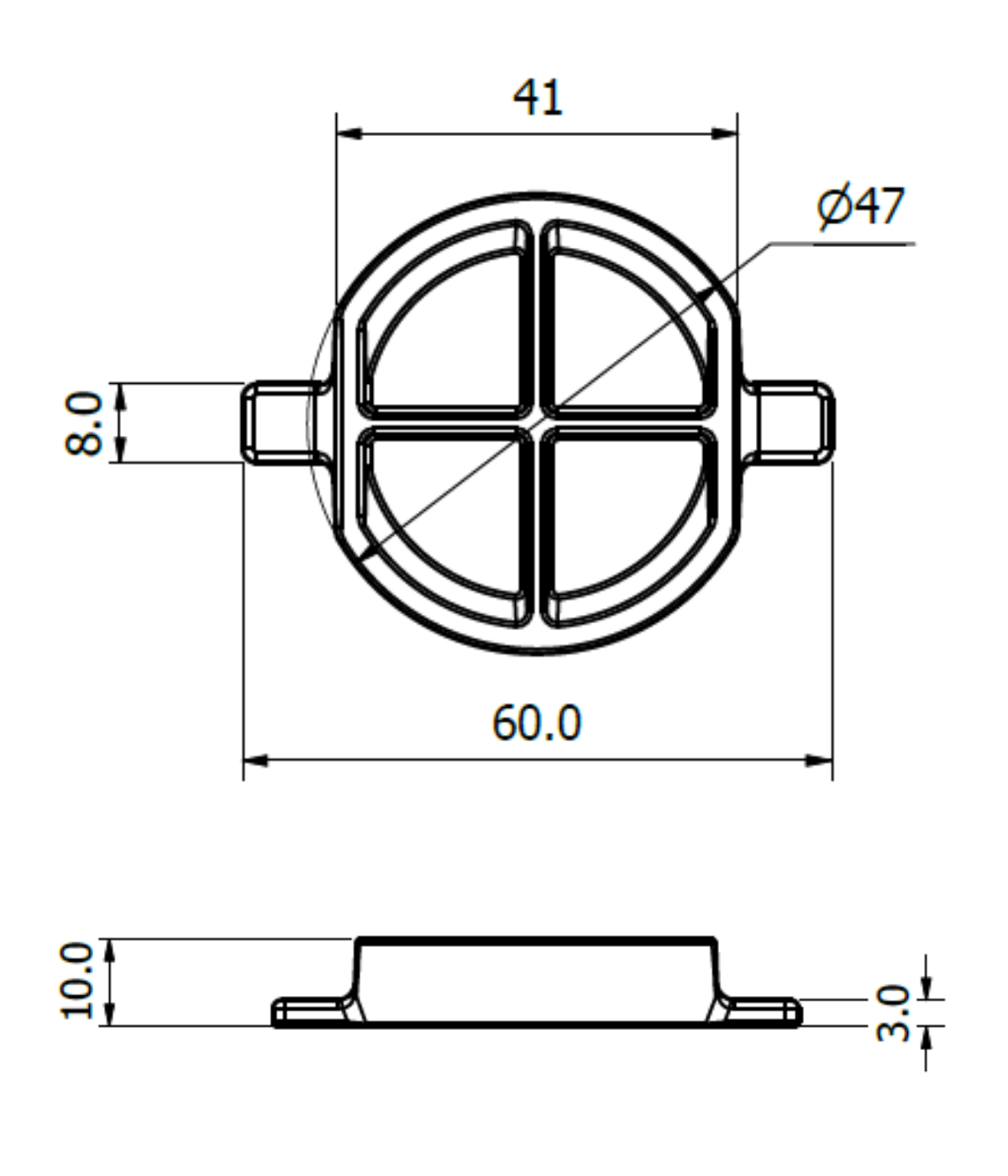

Small Round Strand Marker
Used with duct chairs to indicate tendon location.
Lance version clips onto the base of the duct chair.
Available in a range of colours.
Large or small versions available
Manufactured from polypropylene
Large version works with Ellis Duct Chairs up to (not including) 240 mm high
Designed and manufactured in the UK
Large Strand Marker
Small Round Strand Marker
| Part No. | Size | Colour |
|---|---|---|
| DCTM01-YW | Large | Yellow |
| DCTM01-BL | Large | Blue |
| DCTM01-GN | Large | Green |
| DCTM01-RD | Large | Red |
| DCTM02-YW | Small | Yellow |
| DCTM02-BL | Small | Blue |
| DCTM02-GN | Small | Green |
| DCTM02-RD | Small | Red |
