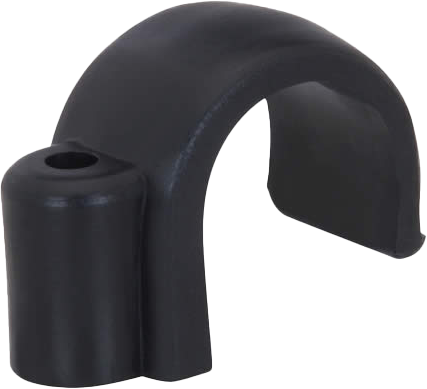

SINGLE WAY FIXING CABLE CLEAT
Data sheet DS78E
Manufactured as standard in Black Acetal (A), Black Polypropylene (B) & Grey Flame Retardant Polypropylene (FR).
A robust cleat used for securing armoured power cables.

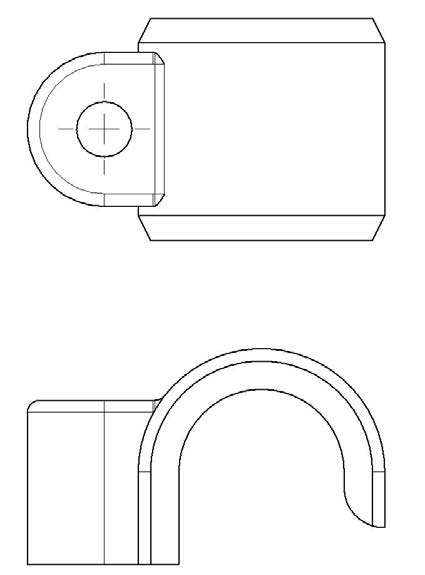

Detailed drawings can be provided on request.
| PART NO. | MATERIAL SUFFIX | CABLE Ø (mm) | FIXING HOLES (mm) | PACK QTY. | WEIGHT (g) |
|---|---|---|---|---|---|
| 10-034 | B or FR | 9.0 | 3 | 200 | 0.8 |
| 10-042 | B or FR | 10.6 | 4 | 200 | 1.9 |
| 10-046 | B or FR | 11.7 | 4 | 200 | 2.8 |
| 10-053 | B or FR | 13.5 | 4 | 200 | 2.8 |
| 10-056 | B or FR | 14.2 | 4 | 200 | 3.1 |
| 10-061 | B or FR | 15.5 | 4 | 200 | 3.1 |
| 10-065 | B or FR | 16.5 | 4 | 200 | 4.8 |
| 10-072 | B or FR | 18.2 | 4 | 200 | 4.2 |
| 10-083 | B or FR | 21.1 | 6 | 100 | 7.7 |
| 10-098 | B or FR | 24.8 | 6 | 100 | 6.4 |
| 10-106 | B or FR | 27.0 | 6 | 100 | 7.5 |
| 10-120 | A | 31.0 | 6 | 50 | 15.8 |
| 10-138 | A | 35.0 | 6 | 50 | 23.0 |
