PEGASUS® RETROFIT CABLE HANGERS
Data sheet DS41E

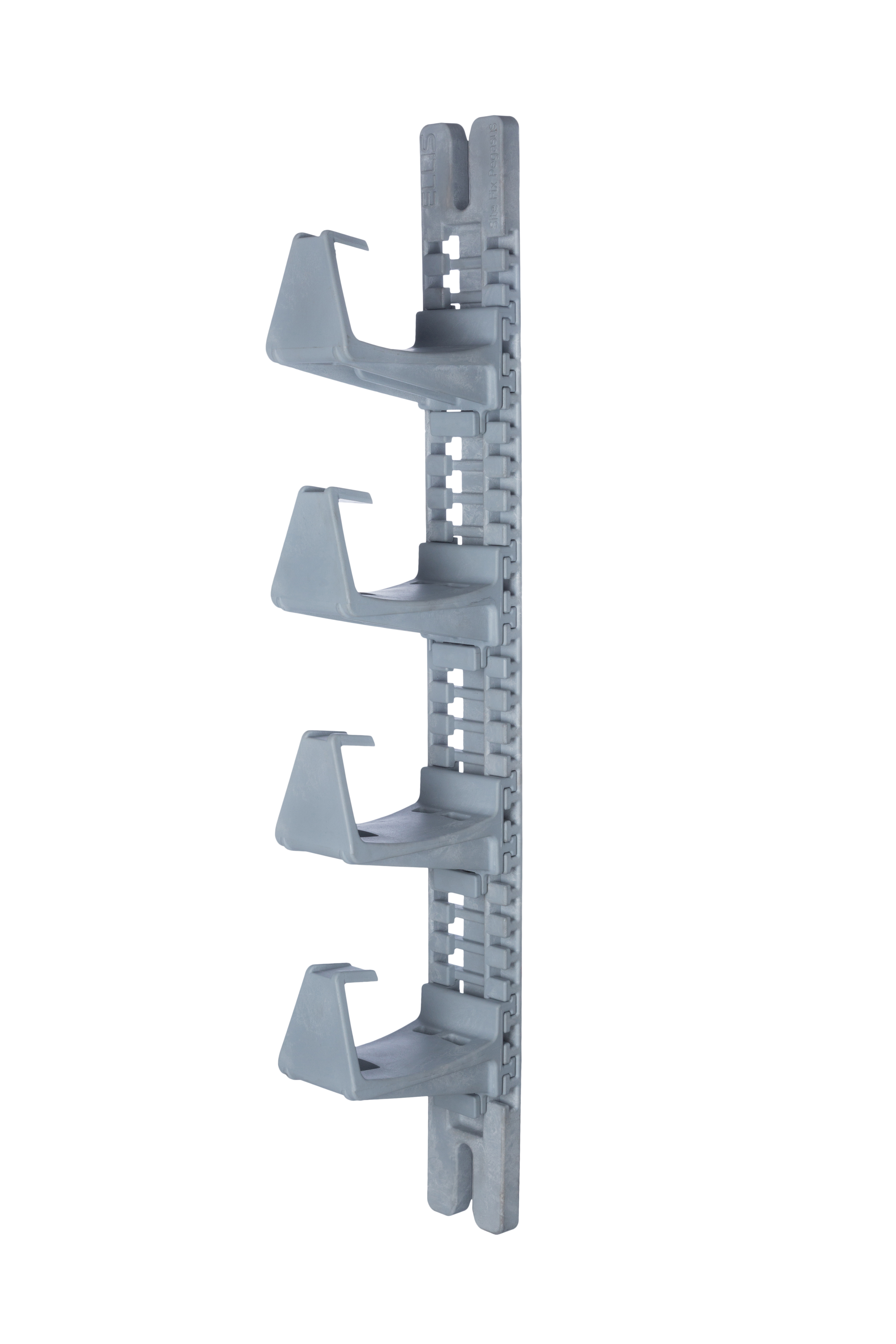

120mm Hanger (CC01)

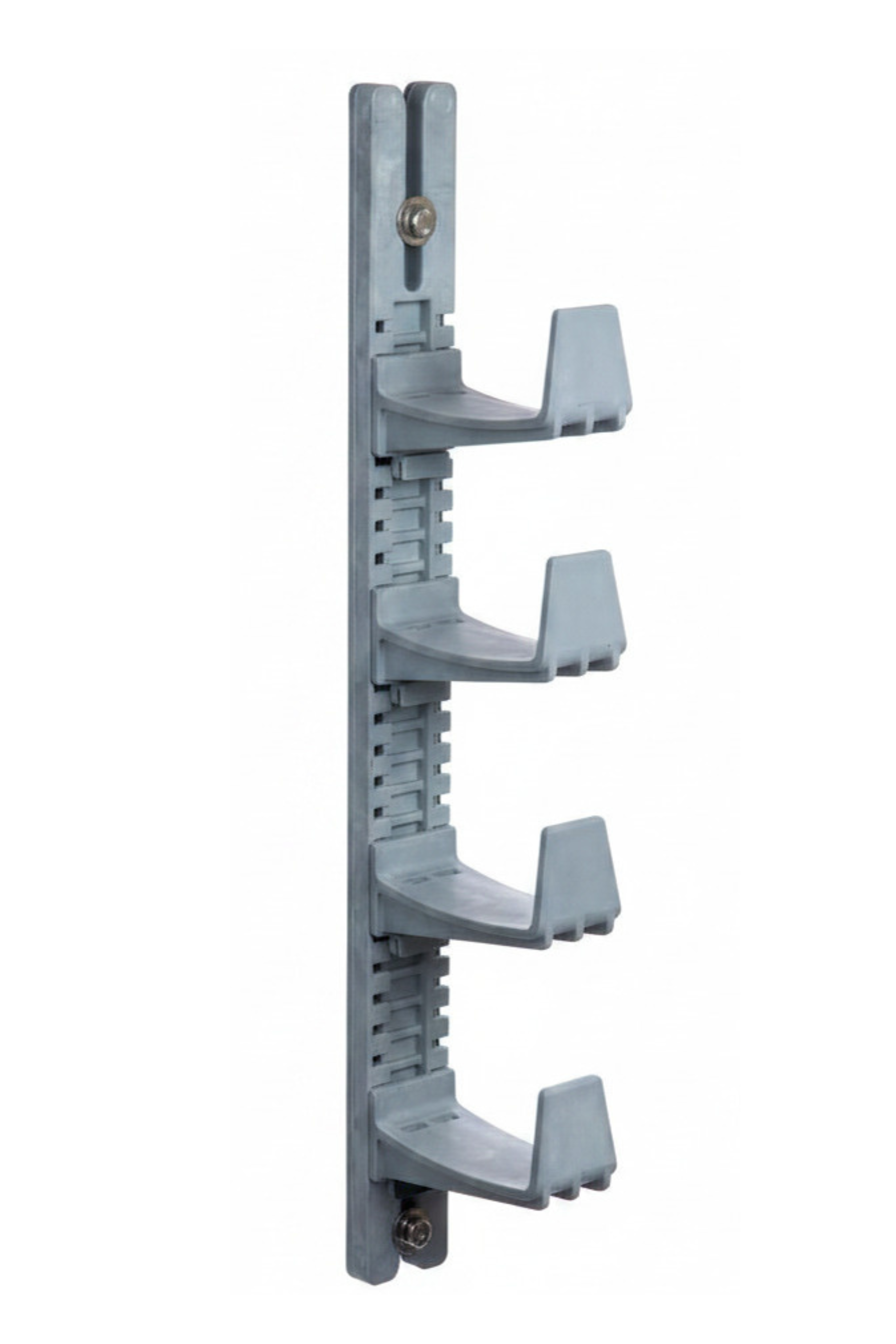

150mm Hanger (CC02)

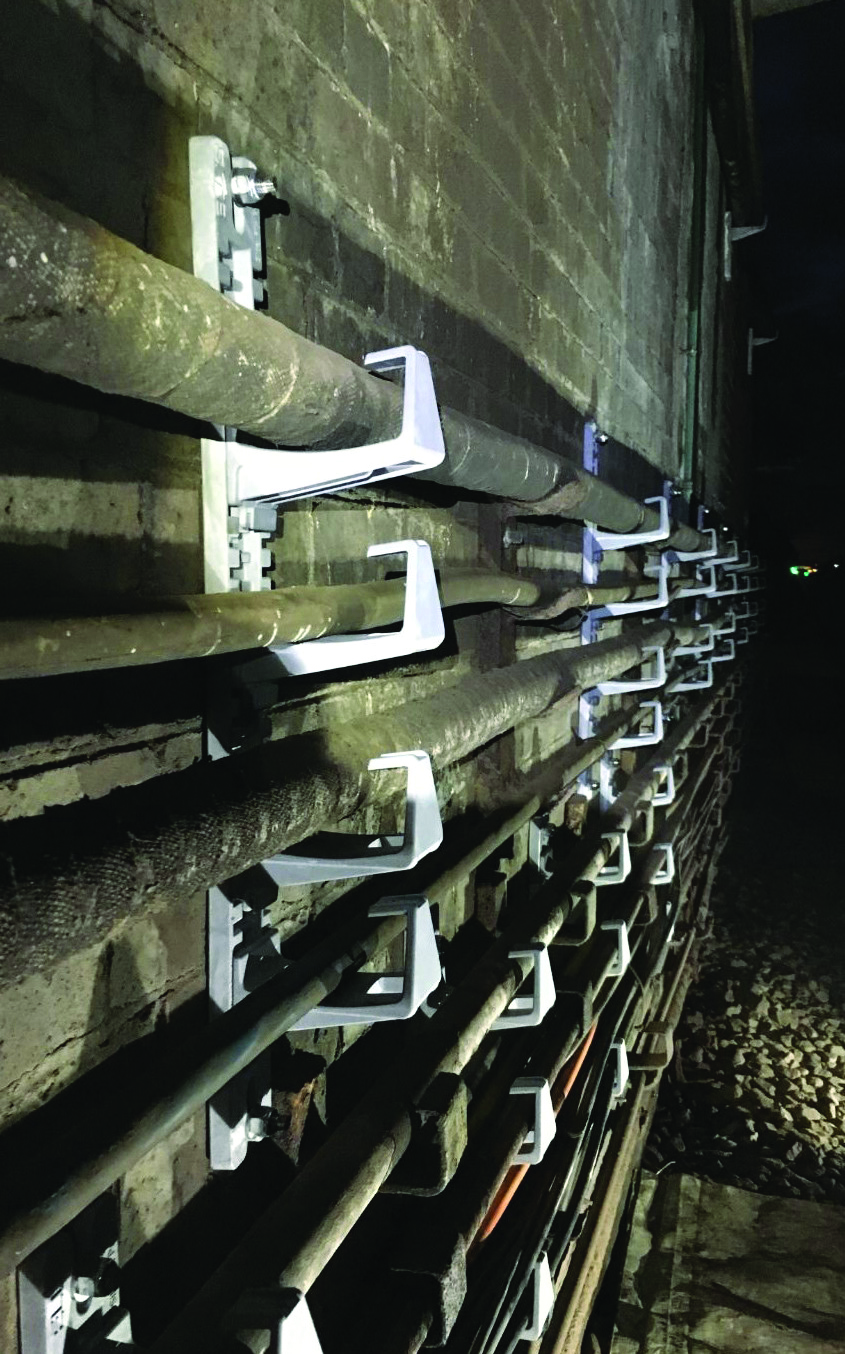

Installation on London Underground
Lightweight hanger system designed to be retrofitted into existing cable installations.
Low-profile design (only 22mm) allows the hanger backplate to be slid in behind existing cables without disturbing existing hangers
Polymer material will not rust or corrode
Insulating hanger with excellent dielectric properties; no earth bonding or grounding required
Adjustable hanger position in 20mm increments
Available with short (120mm) or long hangers (150mm)
Available in LUL 1-085 material for indoor applications or UV-stabilised material for external applications
Slide-in hangers and keepers allow rapid installation
Safe working load: 20 kg per hanger

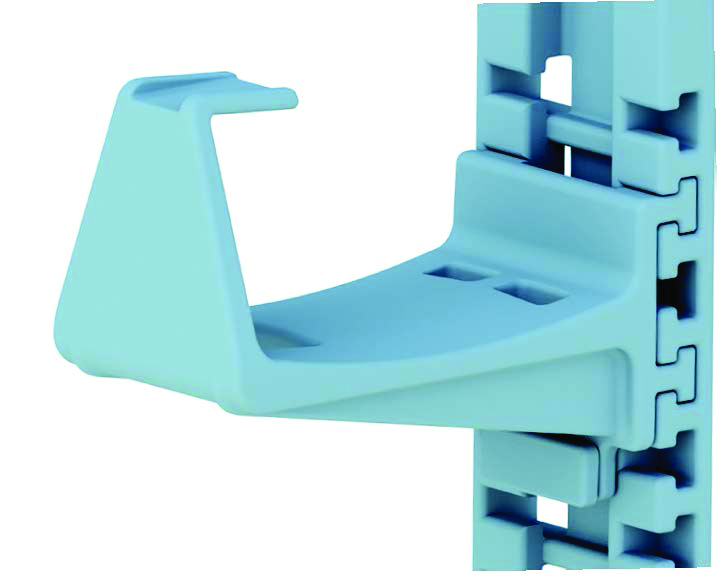

The hangers slide into the backplate and are held in position by a removable keeper. The design allows for fine adjustment of the hanger position to suit the location of the installed cable.
PEGASUS® RETROFIT CABLE HANGERS
Data sheet DS41E

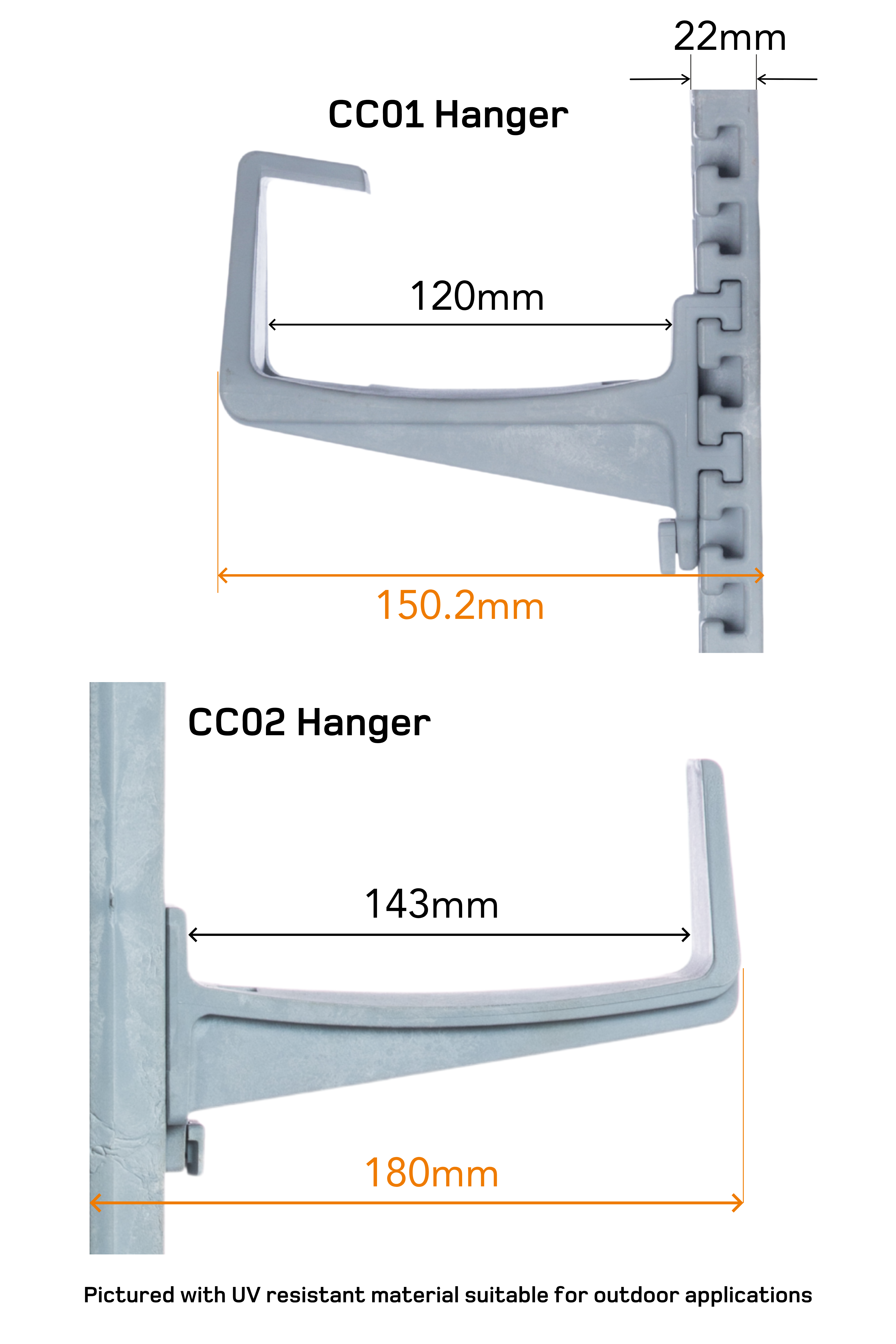

Two hanger lengths available: 120mm & 150mm
Two material options: Indoor - LUL 1-085 & Outdoor - UV-resistant

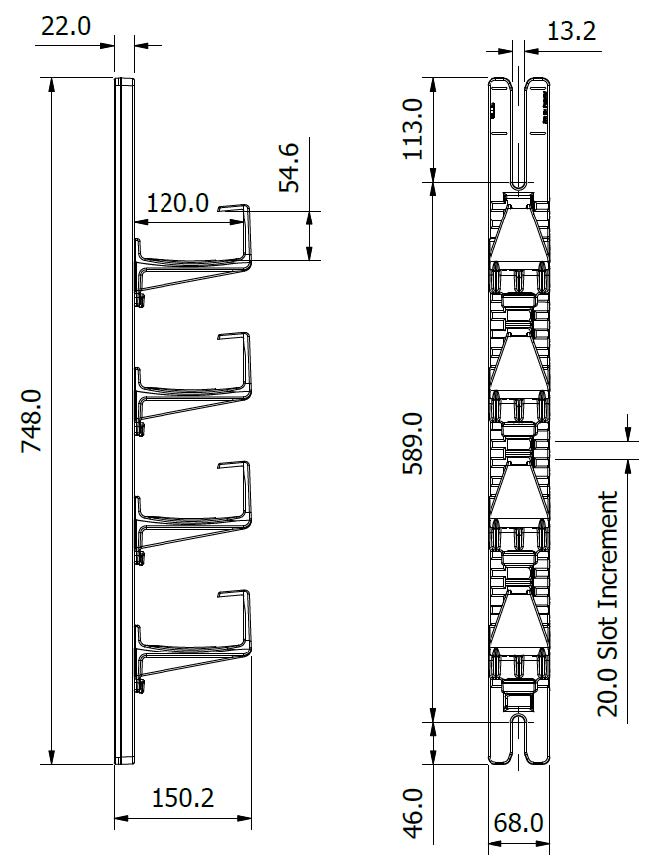

CC01 Hanger

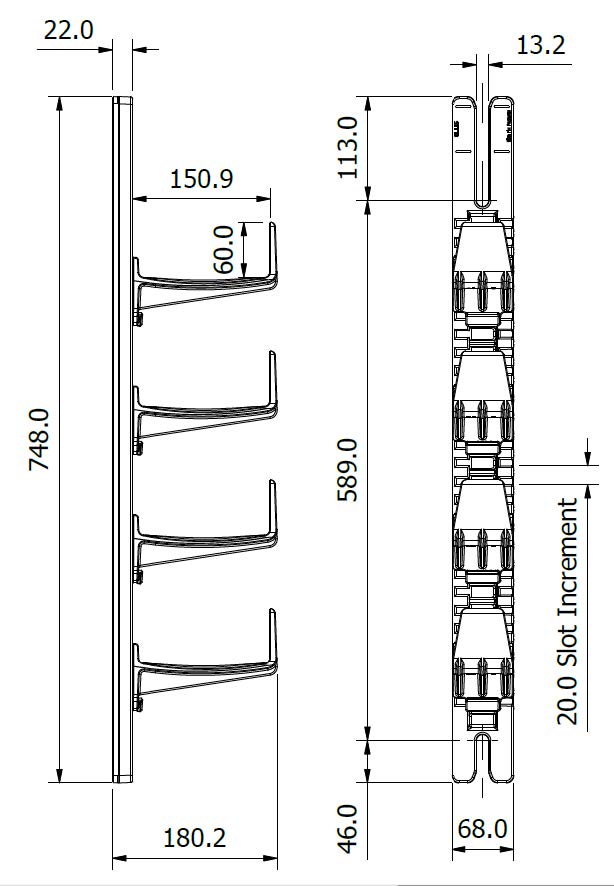

CC02 Hanger
| Part No. | Description | Dimensions (mm) | LUL Weight (g) | UV Weight (g) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||
| SFPG-BKPL748-XX | RETROFIT BACKPLATE | 748 | 589 | 113 | 20 | - | - | - | 960 | 815 |
| SFPG-CC01-XX | CC01 HANGER (120mm) & KEEPER | - | - | - | - | 120 | 54.6 | 150.2 | 260 | 230 |
| SFPG-CC02-XX | CC02 HANGER (143mm) & KEEPER | - | - | - | - | 143 | 60 | 180 | 295 | 250 |
The part numbers listed above cover both material options.
For indoor applications, where LUL 1-085 material is required, remove the -XX from the part number above.
For outdoor applications, where UV-resistant material is required, replace the -XX in the part number above with -UV
