PEGASUS® MULTI-FIX CABLE HANGERS
Data sheet DS43E

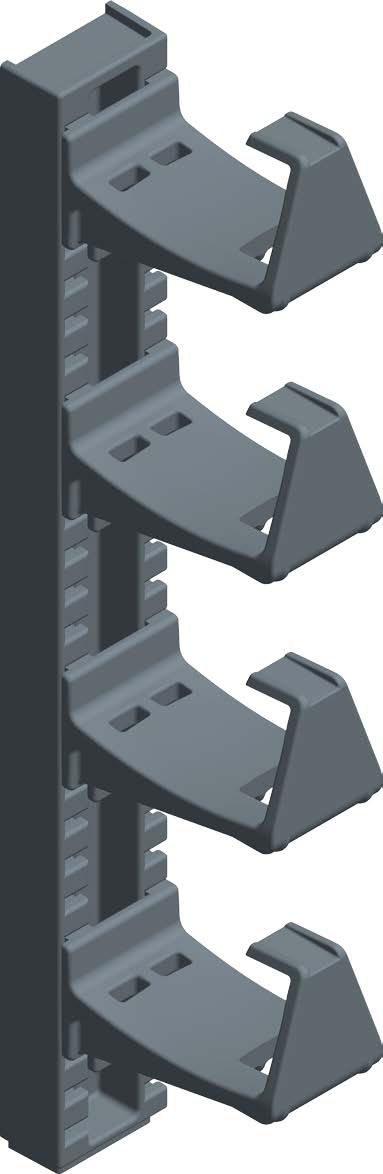

120mm Hanger (CC01)

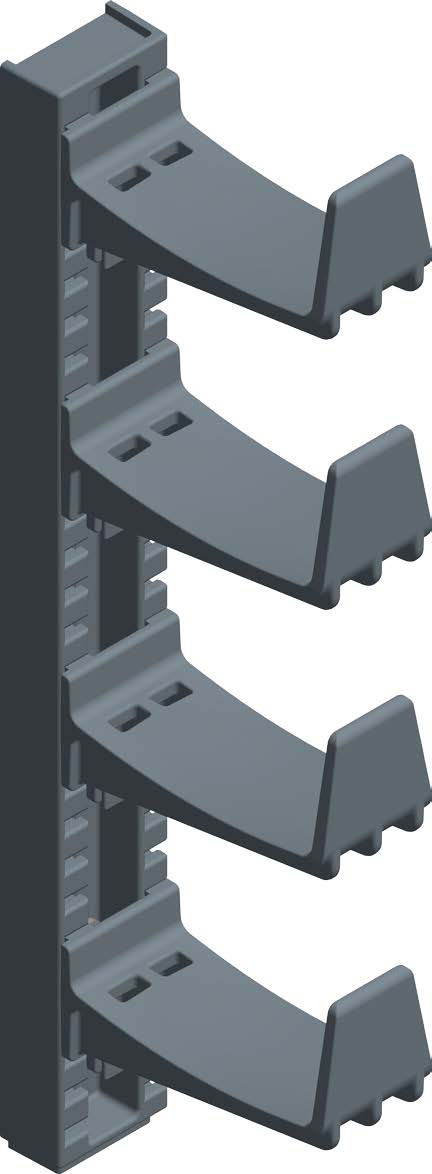

150mm Hanger (CC02)
Multi-Fix showing both hangers
Hanger system designed to be affixed to posts or walls
Low-profile design allows the hangers to be slid in behind existing cables without disturbing existing hangers
Polymer material will not rust or corrode
Insulating hanger with excellent dielectric properties; no earth bonding or grounding required
Adjustable hanger position in 20mm increments
Available with short (120mm) or long hangers (150mm)
Available in LUL 1-085 LSF material for indoor applications or UV-stabilised material for external applications
Slide-in hangers and keepers allow rapid installation
SWL 20kg per hanger

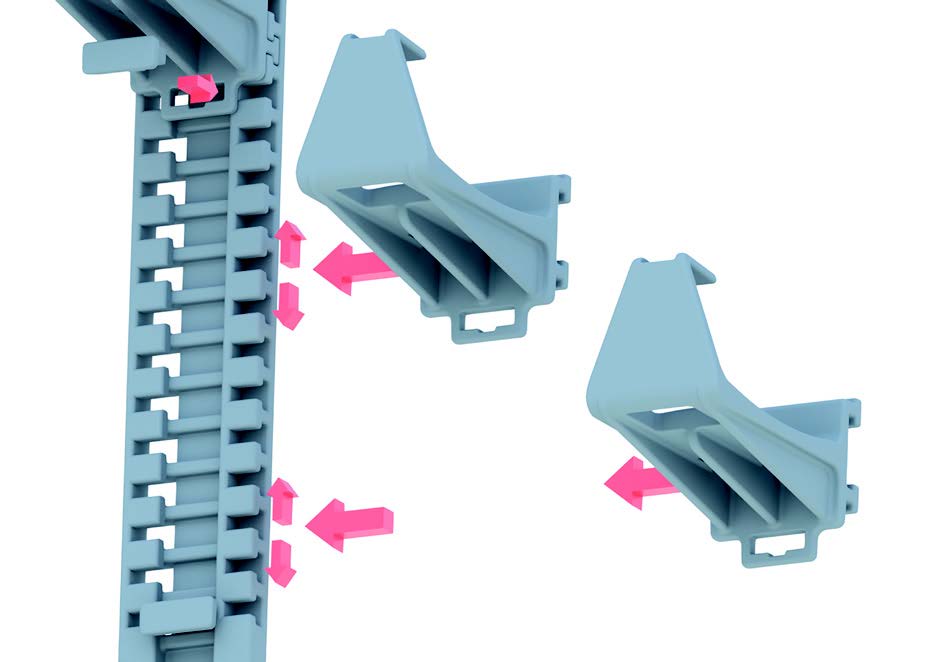

The hangers slide into the backplate and are held in position by a removable keeper. The design allows for fine adjustment of the hanger position to suit the location of the installed cable.
PEGASUS® MULTI-FIX CABLE HANGERS
Data sheet DS43E

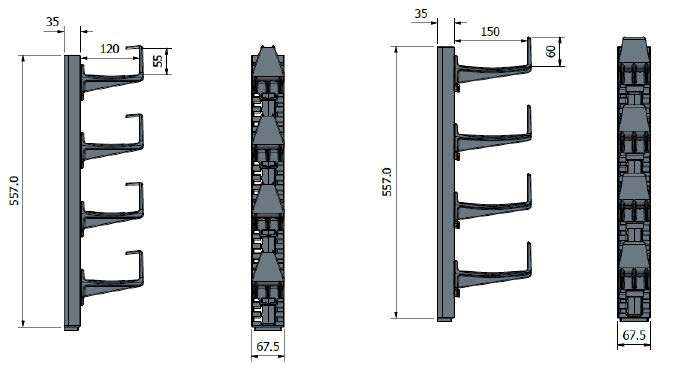

Two hanger lengths available: 120mm & 150mm
Two material options: Indoor - LUL 1-085 & Outdoor - UV-resistant
| Part No. | Description | Dimensions (mm) | LUL Weight (g) | UV Weight (g) | ||||
|---|---|---|---|---|---|---|---|---|
| H | W | D | A | B | ||||

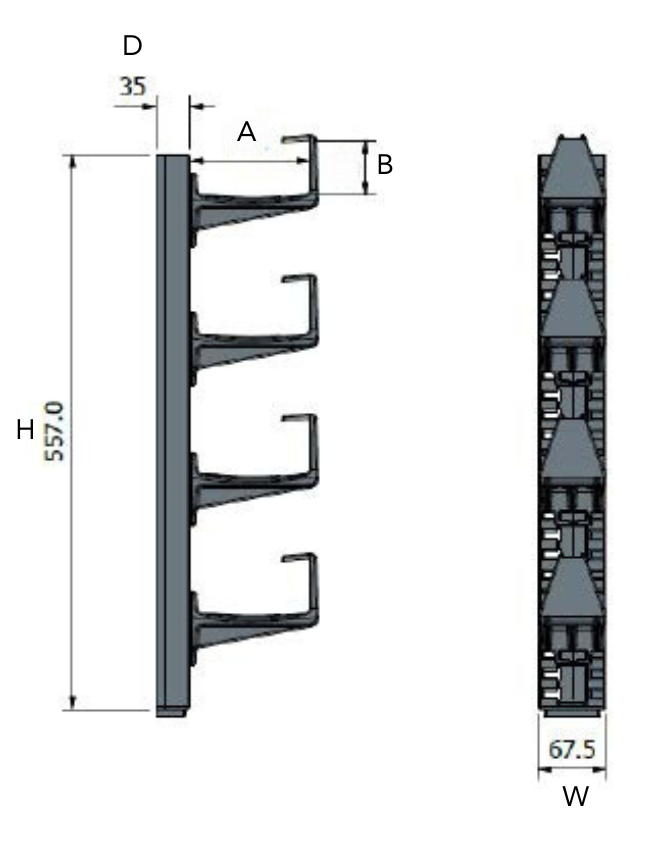

| PFPG-BKPL565-XX | MULTI-FIX BACKPLATE | 557 | 67.5 | 35 | - | - | 790 | 790 |
| PFPG-SPC01-XX | BACKPLATE SPACER | - | - | - | - | - | 19 | 19 |
| OF-PFPG-WASHER-01-4 | BACKPLATE WASHER (Stainless Steel) | - | - | - | - | - | - | - |
| SFPG-CC01-XX | CC01 HANGER (120mm) & KEEPER | - | - | - | 120 | 54.6 | 260 | 230 |
| SFPG-CC02-XX | CC02 HANGER (150mm) & KEEPER | - | - | - | 143 | 60 | 295 | 250 |
The part numbers listed above cover both material options.
For indoor applications, where LUL 1-085 material is required, remove the -XX from the part number above.
For outdoor applications, where UV-resistant material is required, replace the -XX in the part number above with -UV
1.
2.

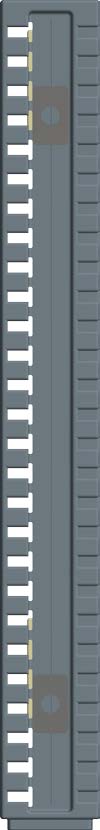

Backplates are supplied undrilled and are required to be drilled on assembly, depending on the fixing. Stainless Steel washers are required to spread the load over the backplate. Fixings are M12, and a minimum of two are required.

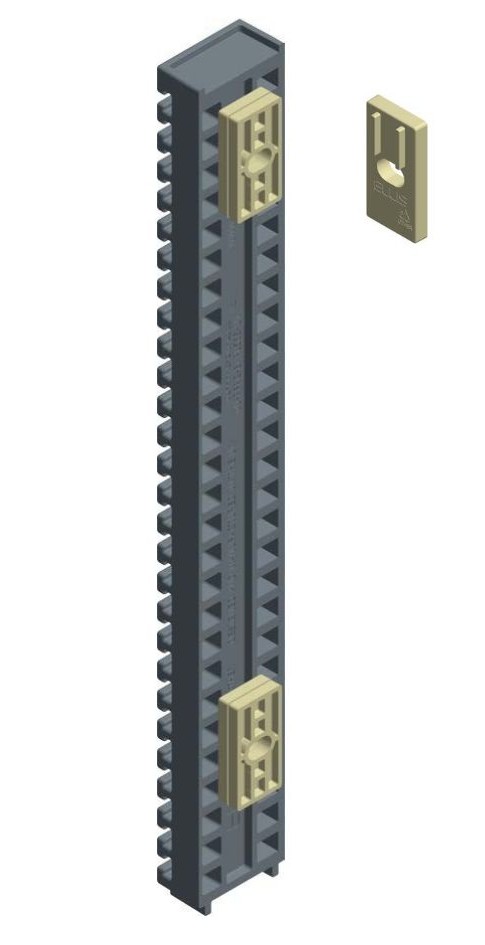

Spacers are available to space the hanger correctly if it is to be mounted in a concrete post with a slot. Spacers are 8mm thick and can be stacked.
