PEGASUS® COMPOSITE HANGER SYSTEM
Data sheet DS34E

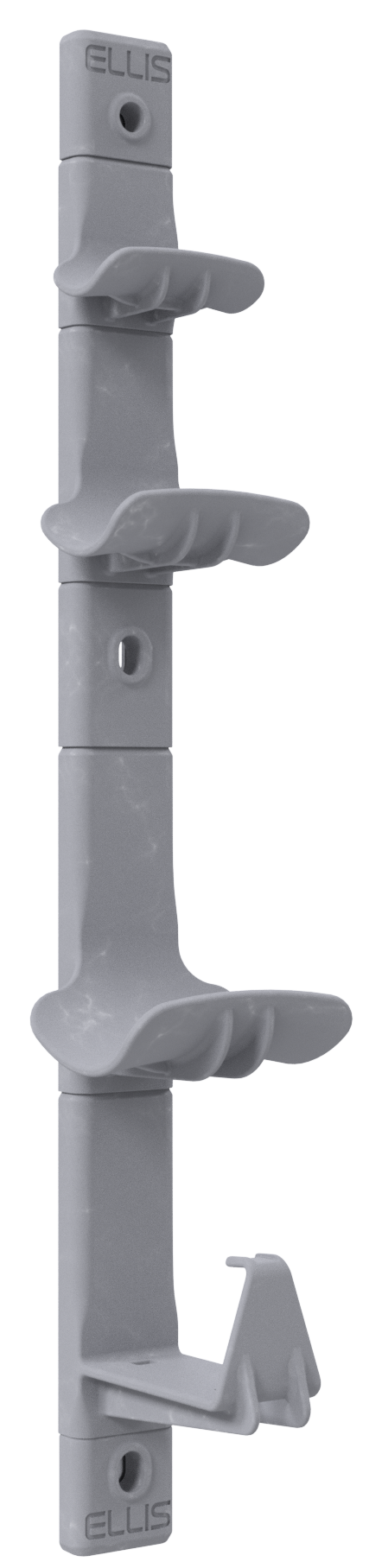

LUL 1-085 Approved Material

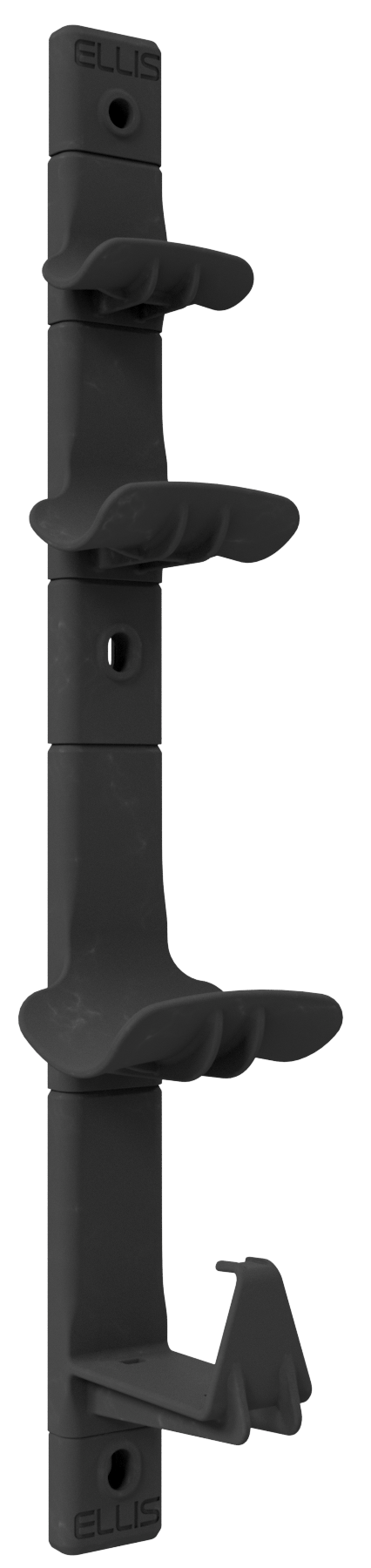

UV Stabilised Material
.jpg)
Composite cable hanger system: polymer hanger and fully enclosed, corrosion-resistant aluminium spine
Up to 50% lighter than a conventional steel system, improving installation time by reducing installer fatigue
Will not rust or corrode
Insulating hanger with excellent dielectric properties, no earth bonding or grounding required

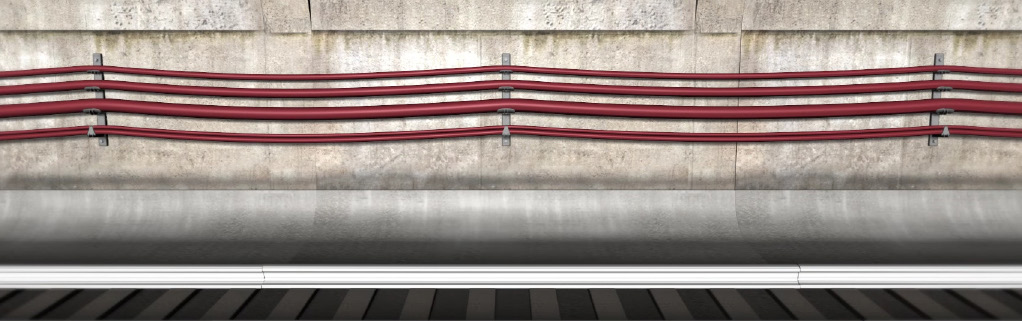

Curved profile hanger design allows natural cable sag
Multiple combinations of hangers available; curved configuration to suit tunnel walls also available
Available in LUL 1-085 LSF material for indoor applications or UV-stabilised material for external applications
Impulse tested to 30kV
Listed for use on the London Underground product register: product ID 3153

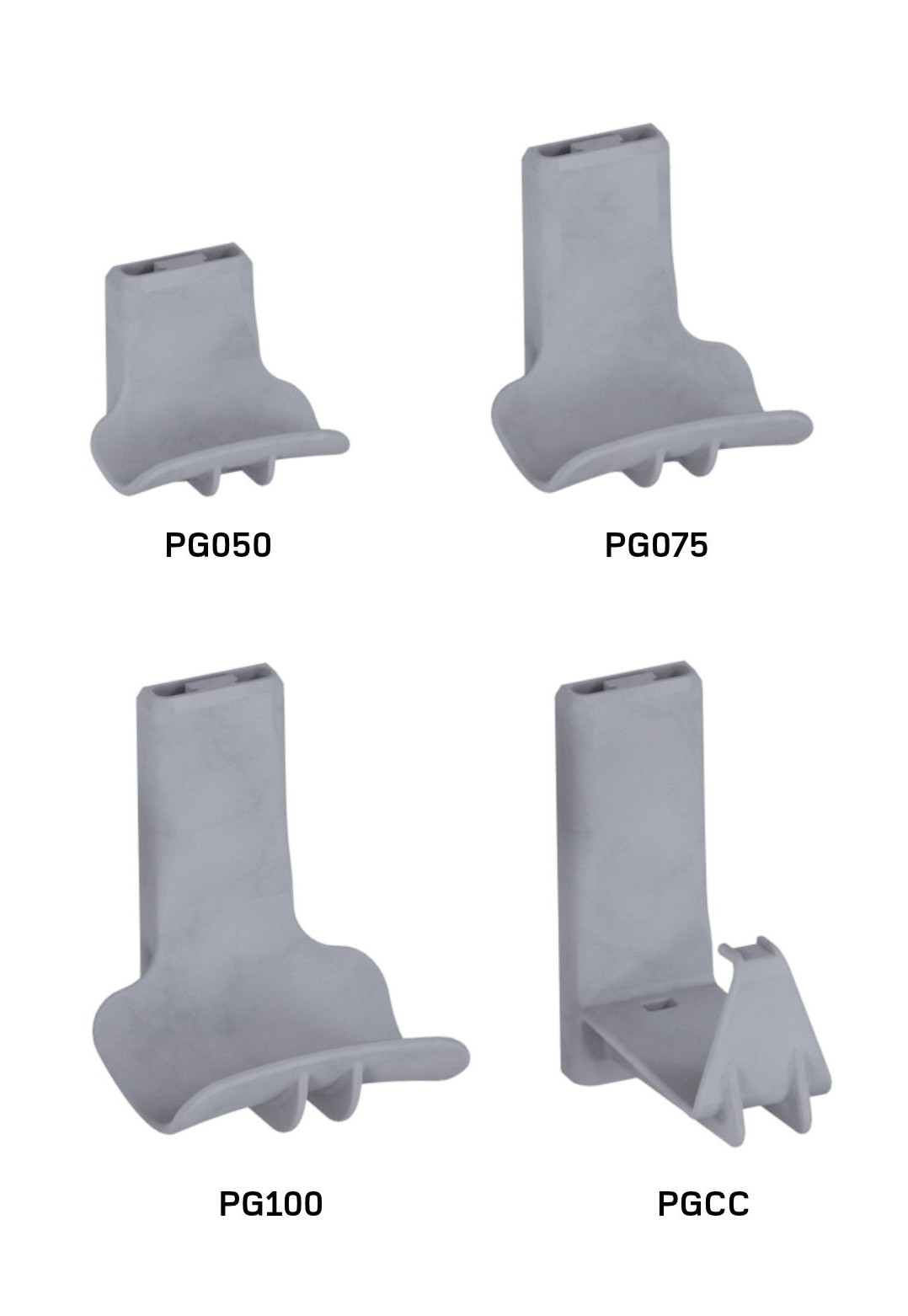

PEGASUS IS A FULLY ASSEMBLED MODULAR SYSTEM, AVAILABLE IN ANY CONFIGURATION
PART NUMBERS FOR SPECIAL CONFIGURATIONS CAN BE WORKED OUT AS FOLLOWS:
Part Number for the product shown would be: PG 50-1/75-1/100-1/CC-1
PG defines the product as Pegasus
The size and number of hangers are then listed as shown, starting from the top
Any number of hangers can be specified in any order
Standard material is suitable for tunnel applications; for UV-stabilised material, add -UV to part #
Standard product is straight but can be supplied curved; for curved option, add -C to end of part

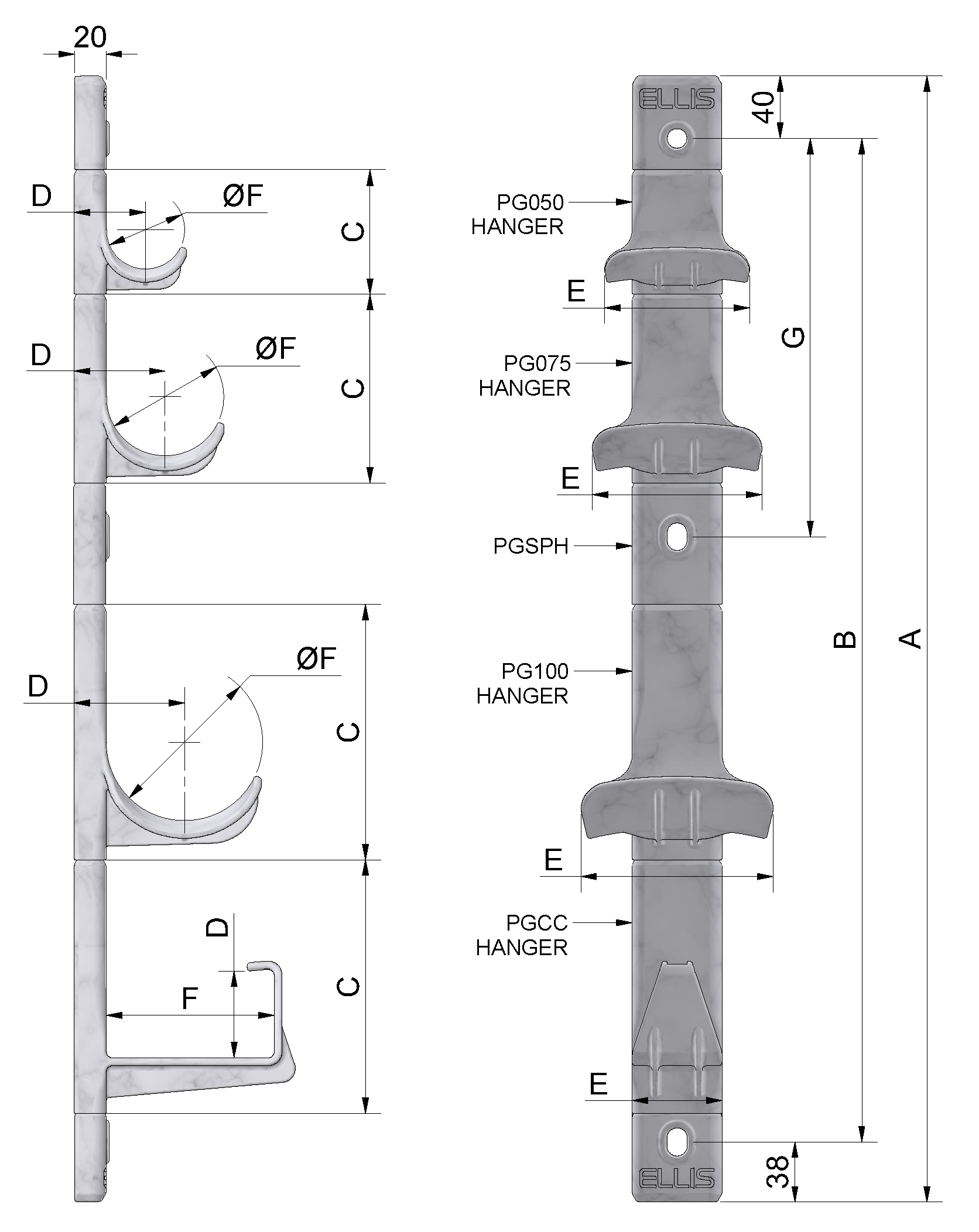

For a detailed drawing with dimensions, refer to Ellis Drawing 7294
PEGASUS® COMPOSITE HANGER SYSTEM
Data sheet DS34E

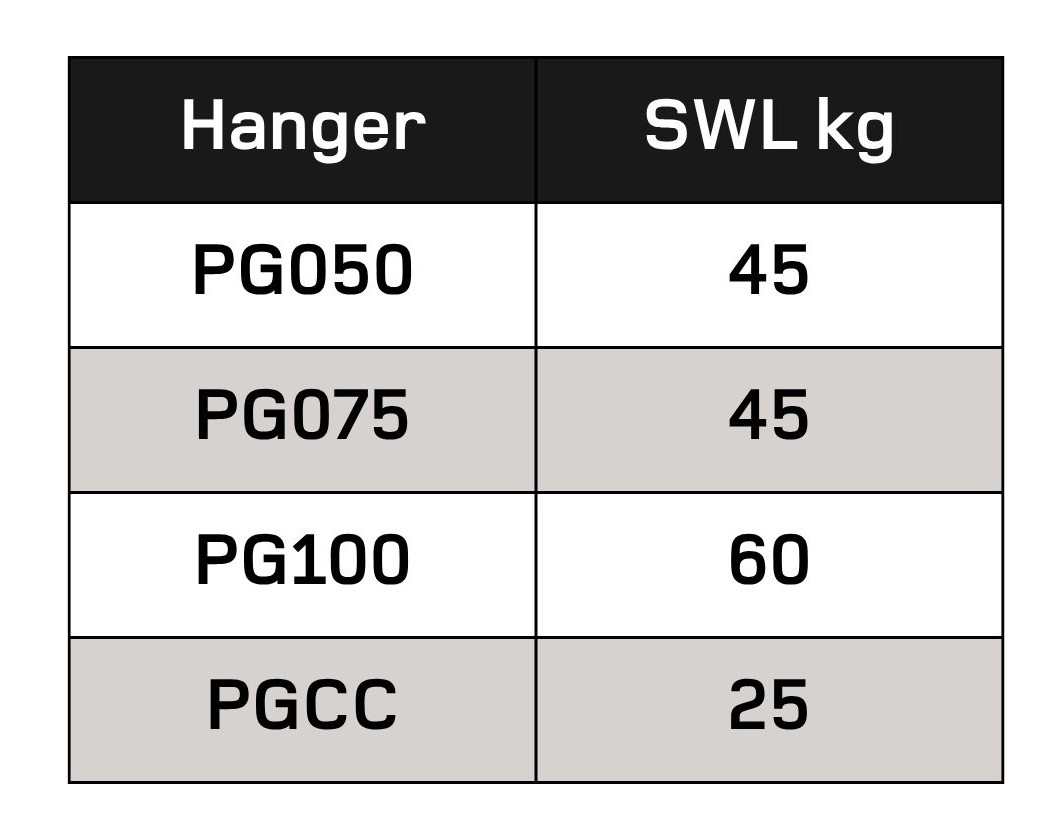

| Part No. | Ways | Dimensions (mm) | Fixing Holes | UV Weight (Kg) | LUL Weight (Kg) | SWL (Kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | ||||||
| PG050-1 | 1 | 197 | 119 | - | 46 | 92 | Ø50 | - | 2 x M12 | 0.3 | 0.38 | 45 |
| PG050-2 | 2 | 276 | 198 | 79 | 46 | 92 | Ø50 | - | 2 x M12 | 0.45 | 0.57 | 90 |
| PG050-3 | 3 | 356 | 277 | 79 | 46 | 92 | Ø50 | - | 2 x M12 | 0.61 | 0.76 | 135 |
| PG050-4 | 4 | 435 | 357 | 79 | 46 | 92 | Ø50 | - | 2 x M12 | 0.76 | 0.95 | 180 |
| PG050-5 | 5 | 514 | 436 | 79 | 46 | 92 | Ø50 | - | 2 x M12 | 0.92 | 1.14 | 225 |
| PG050-6 | 6 | 594 | 515 | 79 | 46 | 92 | Ø50 | - | 2 x M12 | 1.07 | 1.33 | 270 |
| PG075-1 | 1 | 238 | 159 | - | 58 | 108 | Ø75 | - | 2 x M12 | 0.39 | 0.49 | 45 |
| PG075-2 | 2 | 358 | 280 | 120 | 58 | 108 | Ø75 | - | 2 x M12 | 0.64 | 0.79 | 90 |
| PG075-3 | 3 | 478 | 400 | 120 | 58 | 108 | Ø75 | - | 2 x M12 | 0.88 | 1.09 | 135 |
| PG075-4 | 4 | 598 | 520 | 120 | 58 | 108 | Ø75 | - | 2 x M12 | 1.13 | 1.39 | 180 |
| PG075-5 | 5 | 718 | 640 | 120 | 58 | 108 | Ø75 | - | 2 x M12 | 1.37 | 1.69 | 225 |
| PG075-6 | 6 | 838 | 760 | 120 | 58 | 108 | Ø75 | - | 2 x M12 | 1.62 | 1.99 | 270 |
| PG075-3.SPH-1.075-3 | 6 | 917 | 839 | 120 | 58 | 108 | Ø75 | 415 | 3 x M12 | 1.95# | 2.15 | 270 |
| PG100-1 | 1 | 280 | 202 | - | 71 | 122 | Ø100 | - | 2 x M12 | 0.48 | 0.6 | 60 |
| PG100-2 | 2 | 442 | 364 | 162 | 71 | 122 | Ø100 | - | 2 x M12 | 0.82 | 1.01 | 120 |
| PG100-3 | 3 | 604 | 526 | 162 | 71 | 122 | Ø100 | - | 2 x M12 | 1.16 | 1.42 | 180 |
| PG100-4 | 4 | 766 | 688 | 162 | 71 | 122 | Ø100 | - | 2 x M12 | 1.49 | 1.83 | 240 |
| PG100-5* | 5 | 928 | 850* | 162 | 71 | 122 | Ø100 | - | 2 x M12 | 1.83 | 2.24 | 300 |
| PG100-6* | 6 | 1090 | 1012* | 162 | 71 | 122 | Ø100 | - | 2 x M12 | 2.16 | 2.65 | 360 |
| PG100-2.SPH-1.100-3 | 5 | 1007 | 928 | 162 | 71 | 122 | Ø100 | 379 | 3 x M12 | 2.27# | 2.5 | 300 |
| PG100-3.SPH-1.100-3 | 6 | 1169 | 1091 | 162 | 71 | 122 | Ø100 | 541 | 3 x M12 | 2.67# | 2.94 | 360 |
| PGCC-1 | 1 | 279 | 200 | - | - | 57 | 107 | - | 2 x M12 | 0.43 | 0.55 | 25 |
| PGCC-2 | 2 | 440 | 361 | 161 | - | 57 | 107 | - | 2 x M12 | 0.72 | 0.9 | 50 |
| PGCC-3 | 3 | 601 | 522 | 161 | - | 57 | 107 | - | 2 x M12 | 1 | 1.26 | 75 |
| PGCC-4 | 4 | 762 | 683 | 161 | - | 57 | 107 | - | 2 x M12 | 1.29 | 1.62 | 100 |
| PGCC-5* | 5 | 923 | 844* | 161 | - | 57 | 107 | - | 2 x M12 | 1.57 | 1.97 | 125 |
| PGCC-6* | 6 | 1084 | 1005* | 161 | - | 57 | 107 | - | 2 x M12 | 1.86 | 2.33 | 150 |
| PGCC-2.SPH-1.CC-3 | 5 | 1002 | 923 | 161 | - | 57 | 107 | 377 | 3 x M12 | 1.93# | 2.13 | 125 |
| PGCC-3.SPH-1.CC-3 | 6 | 1163 | 1084 | 161 | - | 57 | 107 | 538 | 3 x M12 | 2.26# | 2.47 | 150 |
*If hole spacing exceeds 750mm, Ellis recommends using the configuration with an additional fixing #Calculated weights. Dimension B is controlled during manufacture to ensure it is maintained. The lower hole is slotted to maintain tolerance during manufacture. No tolerance is provided on Dimension B. If the tolerance is required, exact dimensions can be provided post manufacture.
