1A ONE HOLE CABLE CLAMP

Data sheet DS23E

1A One Hole Cable Clamp

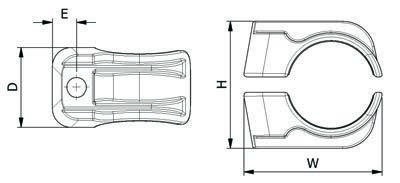

Single cable formation

Light duty cable clamp for single cable formation
Cable range of Ø10mm – Ø57mm
Cast LM6 Aluminium
Optional epoxy coating available for harsh or corrosive environments
Fixing options: one M10 fixing
Fixings are not supplied as standard but are available on request
Designed, tested and manufactured in accordance with IEC 61914

Part No.	Cable Range (mm)		Dimensions (mm)				Fixing Holes	Weight (g)
Part No.	Min	Max	W	H	D	E	Fixing Holes	Weight (g)
1A-10N	10	13	37.8	27-30	41.4	10.2	1 x M10	43
1A-11N	13	16	41.2	30-33	41.4	10.4	1 x M10	52
1A-12N	16	19	44.3	33-36	41.4	10.7	1 x M10	61
1A-13N	19	23	48.2	36-40	41.4	10.9	1 x M10	68
1A-14N	23	27	52.2	40-44	41.4	11.3	1 x M10	78
1A-15N	27	32	57.1	44-49	41.4	11.6	1 x M10	85
1A-16N	32	38	63.1	49-55	41.4	12.1	1 x M10	97
1A-17N	38	46	71.3	58-66	41.4	12.9	1 x M10	121
1A-18N	46	51	77.3	67-73	41.4	13.5	1 x M10	155
1A-19N	51	57	83.2	72-78	41.4	13.9	1 x M10	171

1A ONE HOLE CABLE CLAMP

Data sheet DS23E

Testing Summary

1A Clamps have been tested in line with the International Standard “Cable Cleats for Electrical Installations” IEC 61914. Typical results are detailed below, please note that these testing values are maximums and safety factors appropriate to your application should be used:

Property Classification	Clause IEC 61914	Units / Classification	Test Data
Cleat type	6.1.2	Metallic	-
Temp. for permanent application	6.2	°C	-40 to +90
Corrosion resistance	6.5.2	High	Aluminium is non-ferrous
Impact rating	6.3.5	Very heavy	Pass
Flame propagation test	10.0, 10.1	Application time ≥30s	N/A
Axial load rating	6.4.3, 9.4	Newtons (N)	Refer to Ellis
Lateral load rating	6.4.2, 9.3	Newtons (N)	Refer to Ellis
Resistance to electromechanical force (short circuit testing)	6.4, 6.4.5, 9.5	Cleats at 600mm intervals (withstanding more than one short circuit)	70.8kA (Report no. PDL-15.025.2) Phase spacing = 100mm Cable OD= Ø39mm

Lateral load: vertical direction

Lateral load: horizontal direction
