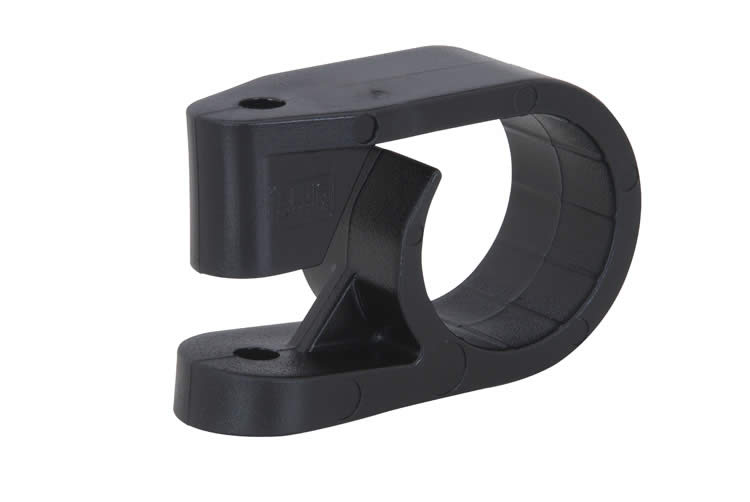

INDUSTRIAL POLYMER CABLE CLAMP
Data sheet DS29E
Used to fix power cables for indoor and outdoor applications
The clamp deforms open to accept the cable and is then closed when fixed down
Manufactured as standard in black LLDPE (B) or in London Underground approved material (LUL)

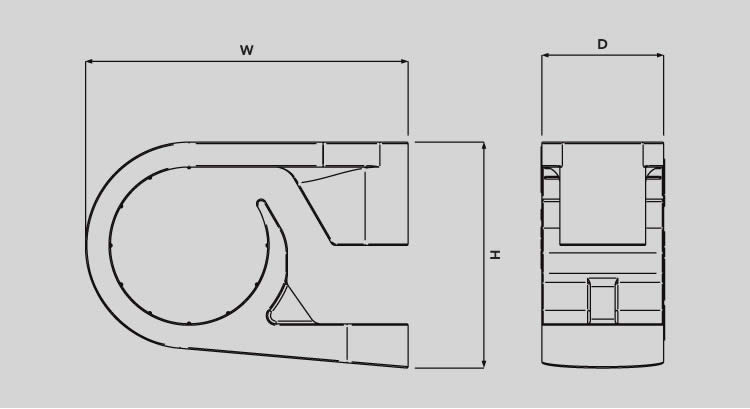

Detailed drawings can be supplied on request
| Part No. LLDPE | Part No. LUL | Cable Range Min Dia. mm | Cable Range Max Dia. mm | Dimensions W mm | Dimensions H mm | Dimensions D mm | Fixing Holes | Pack Qty | SWL kgf | Weight LLDPE g | Weight LUL g |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 17-01B | 17-01LUL | 10 | 15 | 27.8 | 17.6 | 12 | 1 x M4 | 100 | 18 | 2 | 3.5 |
| 17-02B | 17-02LUL | 12 | 17 | 32 | 20.8 | 14 | 1 x M4 | 100 | 24 | 3.3 | 5.4 |
| 17-03B | 17-03LUL | 15 | 20 | 37.1 | 25.3 | 16 | 1 x M4 | 100 | 32 | 5.2 | 8.6 |
| 17-04B | 17-04LUL | 18 | 24 | 41 | 29.6 | 18 | 1 x M4 | 100 | 39 | 7.3 | 12.2 |
| 17-05B | 17-05LUL | 22 | 29 | 52.1 | 35.4 | 20 | 1 x M6 | 50 | 52 | 11.2 | 18.6 |
| 17-06B | 17-06LUL | 26 | 34 | 58.2 | 40.9 | 22 | 1 x M6 | 50 | 66 | 16.5 | 27.9 |
| 17-07B | 17-07LUL | 32 | 42 | 69.3 | 49.2 | 25 | 1 x M6 | 25 | 79 | 25.6 | 42.9 |
| 17-08B | 17-08LUL | 39 | 51 | 81.7 | 58.5 | 26 | 1 x M6 | 25 | 93 | 36.2 | 60.1 |
LONDON UNDERGROUND
The LUL version of this clamp is compliant with the requirements of London Underground Standard 1-085. Product Register No. 365.
