HERCULES HEAVY DUTY NON-METALIC CABLE HANGER
Data sheet DS71E
GRP cable hanger system
Will not rust or corrode
Insulating hanger with excellent dielectric properties; no earth bonding or grounding required
Multiple combinations of hangers available
Manufactured from UL-listed heavy-duty glass-reinforced polymer
Resistant to UV and suitable for long-term installation in areas exposed to sunlight

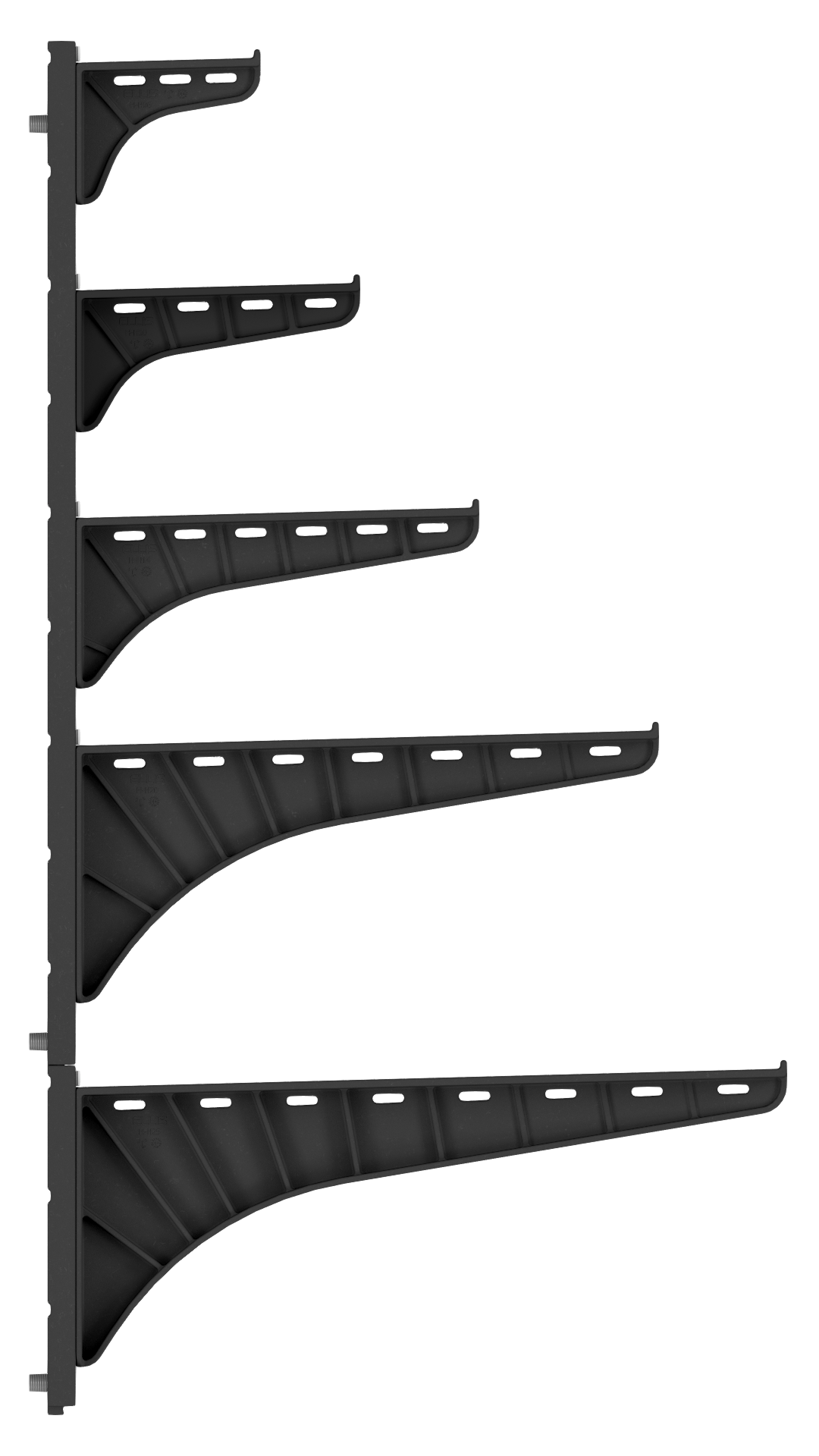

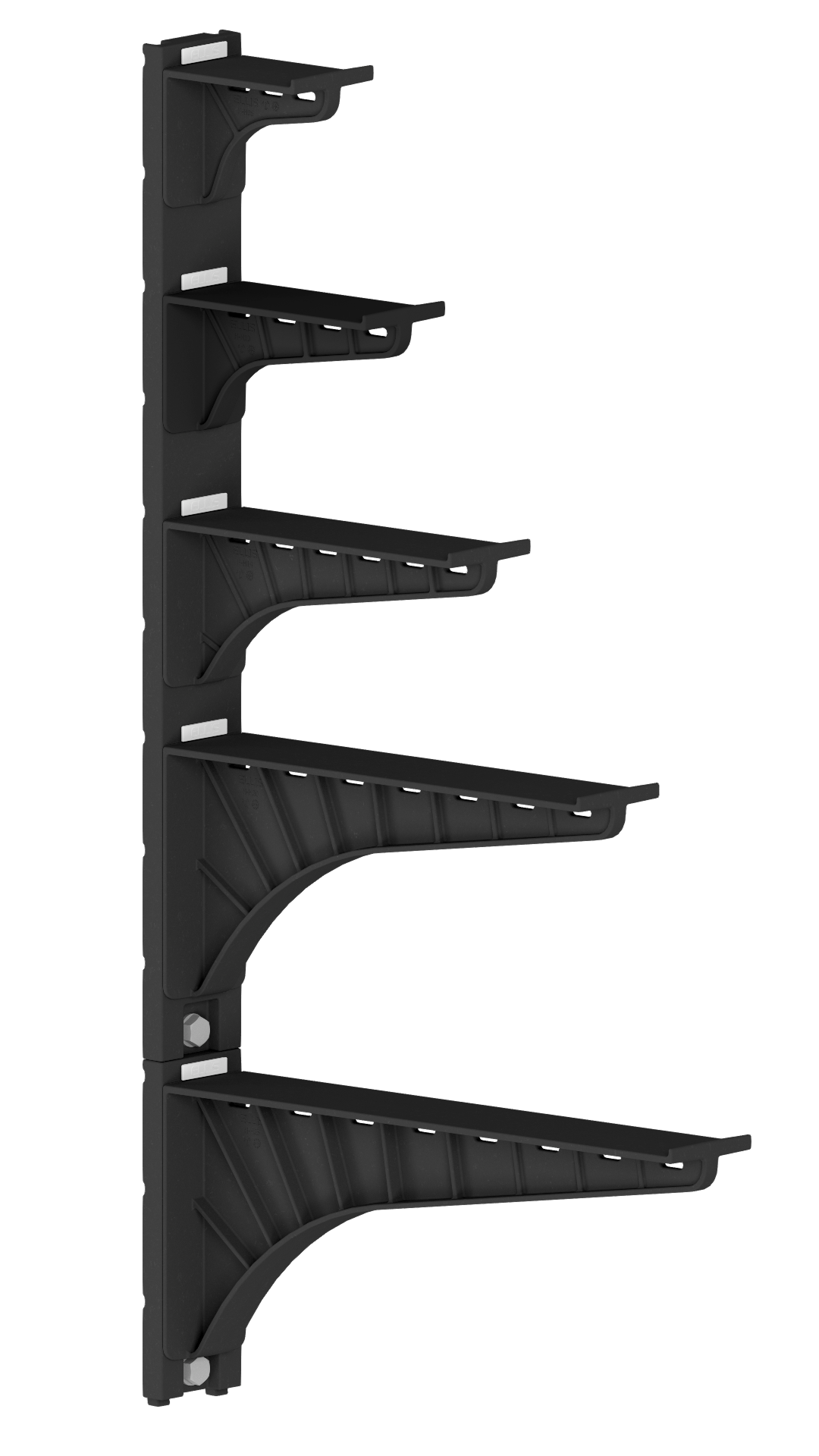

Backplates can be installed in tandem and slot into each other to achieve the required backplate height
Hanger slots into the backplate, allowing the backplate to be installed first and hangers added later as required
A keeper to lock the hangers in place is included with every hanger

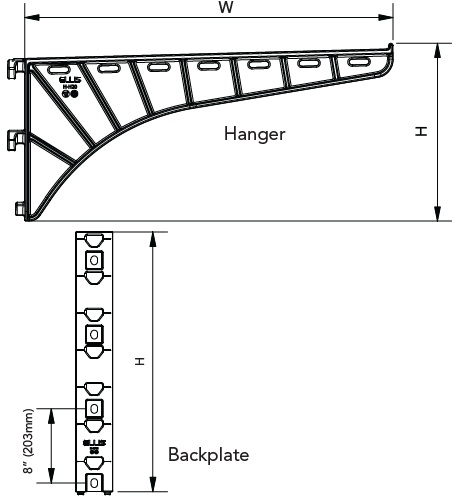

| Part No. | Description | Dimensions | Weight (lbs) | Weight (Kg) | Load Rating | Deflection | Fixings Required | |
|---|---|---|---|---|---|---|---|---|
| W | H | |||||||
| H-H06-UV | 6” Hanger | 6” (165mm) | 5.6” (143mm) | 1.00 | 0.44 | 450lb (2,000N) | 0.14" (3.5mm) | Not Applicable |
| H-H10-UV | 10” Hanger | 10” (254mm) | 5.7” (145mm) | 1.40 | 0.62 | 400lb (1,780N) | 0.29" (7.5mm) | Not Applicable |
| H-H14-UV | 14” Hanger | 14” (360mm) | 6.7” (170mm) | 2.05 | 0.91 | 350lb (1,557N) | 0.31" (7.8mm) | Not Applicable |
| H-H20-UV | 20” Hanger | 20” (521mm) | 9.8” (251mm) | 3.35 | 1.51 | 250lb (1,112N) | 0.35" (9mm) | Not Applicable |
| H-H25-UV | 25” Hanger | 25” (635mm) | 10.8” (274mm) | 4.20 | 1.91 | 250lb (1,112N) | 0.41" (10.5mm) | Not Applicable |
| H-BP12-UV | 12” Backplate | Not Applicable | 12” (305mm) | 1.25 | 0.57 | Not Applicable | Not Applicable | 2 X M12 or 2 x ½” |
| H-BP28-UV | 28” Backplate | Not Applicable | 28” (711mm) | 2.90 | 1.31 | Not Applicable | Not Applicable | 4 X M12 or 2 x ½” |
| H-BP36-UV | 36” Backplate | Not Applicable | 36” (914mm) | 3.70 | 1.66 | Not Applicable | Not Applicable | 5 X M12 or 2 x ½” |
