FLEXI-STRAP™
Data sheet DS10E
Flexi-Strap

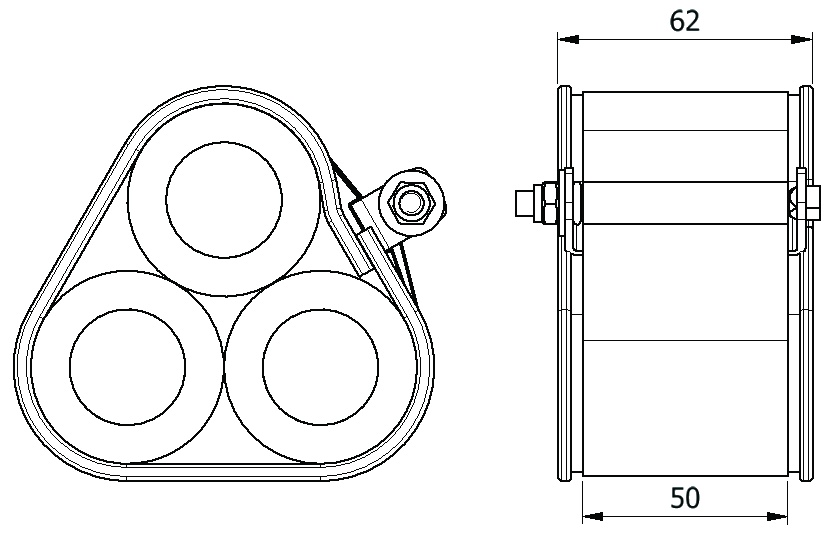

Trefoil formation
Intermediate cable strap for trefoil cables or bundled cables
Utilised between fixed cleats to offer a more cost-effective installation, whilst maintaining short circuit protection
Available in two short circuit performance levels: The Standard Duty (SDL) version and the Heavy Duty (HDL) version
Cable range of Ø24mm – Ø145mm
316L stainless steel strap with A4-70 stainless steel closure fixing
Low Smoke and Fume Zero Halogen (LSF0H), Phosphorus Free polymeric liner for increased cable protection
Designed, tested and manufactured in accordance with IEC 61914
| Part No. | Cable Range | Weight (g) | |
|---|---|---|---|
| Min Ø (mm) | Max Ø (mm) | ||
| FS24-34SDL | 24 | 34 | 190 |
| FS30-41SDL | 30 | 41 | 195 |
| FS37-47SDL | 37 | 47 | 224 |
| FS43-54SDL | 43 | 54 | 260 |
| FS50-60SDL | 50 | 60 | 273 |
| FS56-67SDL | 56 | 67 | 303 |
| FS63-73SDL | 63 | 73 | 324 |
| FS69-80SDL | 69 | 80 | 347 |
| FS72-85SDL | 72 | 85 | 364 |
| FS82-95SDL | 82 | 95 | 398 |
| FS92-105SDL | 92 | 105 | 431 |
| FS102-115SDL | 102 | 115 | 452 |
| FS112-125SDL | 112 | 125 | 499 |
| FS122-135SDL | 122 | 135 | 532 |
| FS132-145SDL | 132 | 145 | 550 |
| Part No. | Cable Range | Weight (g) | |
|---|---|---|---|
| Min Ø (mm) | Max Ø (mm) | ||
| FS24-34HDL | 24 | 34 | 219 |
| FS30-41HDL | 30 | 41 | 243 |
| FS37-47HDL | 37 | 47 | 268 |
| FS43-54HDL | 43 | 54 | 313 |
| FS50-60HDL | 50 | 60 | 344 |
| FS56-67HDL | 56 | 67 | 353 |
| FS63-73HDL | 63 | 73 | 391 |
| FS69-80HDL | 69 | 80 | 433 |
| FS72-85HDL | 72 | 85 | 438 |
| FS82-95HDL | 82 | 95 | 483 |
| FS92-105HDL | 92 | 105 | 523 |
| FS102-115HDL | 102 | 115 | 568 |
| FS112-125HDL | 112 | 125 | 633 |
| FS122-135HDL | 122 | 135 | 675 |
| FS132-145HDL | 132 | 145 | 719 |
FLEXI-STRAP™
Data sheet DS10E
Testing Summary
Flexi-Strap is also suitable for quad and multiple cable formations. Please contact Ellis directly for relevant short-circuit information in relation to this.
Ultimate flexibility
Flexi-Straps have been tested in line with the International Standard ‘Cable Cleats for Electrical Installations’ IEC61914. Typical results are detailed below, please note that these testing values are maximums and safety factors appropriate to your application should be used:
| Property Classification | Clause IEC 61914 | Units / Classification | Test Data (Standard Duty) | Test Data (Heavy Duty) |
|---|---|---|---|---|
| Cleat type | 6.1.3 | Composite | N/A | N/A |
| Temp. for permanent application | 6.2 | °C | -40 to +60 | -40 to +60 |
| Corrosion resistance | 6.5.2.2 | High | 316L stainless steel has ≥16% chromium | 316L stainless steel has ≥16% chromium |
| Impact rating | 6.3.5 | Very heavy | Pass | Pass |
| Flame propagation test | 10.0, 10.1 | Application time ≥30s | Pass | Pass |
| Resistance to electromechanical force (short circuit testing) | 6.4, 6.4.4, 9.5 | Cleats at 300mm intervals | 164kA (Report No. PDL-18.071.8) Cable OD= Ø36mm CAT1 | 206kA (Report No. PDL-23.183) Cable OD= Ø41.1mm CAT1 |
| Resistance to electromechanical force (short circuit testing) | 6.4, 6.4.5, 9.5 | Cleats at 600mm intervals | 121.8kA (Report No. 2024 10 3S 0745-7) Cable OD= Ø37.5mm CAT2 | 157kA (Report No. PDL 14.076.9) Cable OD= Ø39mm CAT2 |
