ELITE RANGE-TAKER CABLE CLAMP
Data sheet DS62E

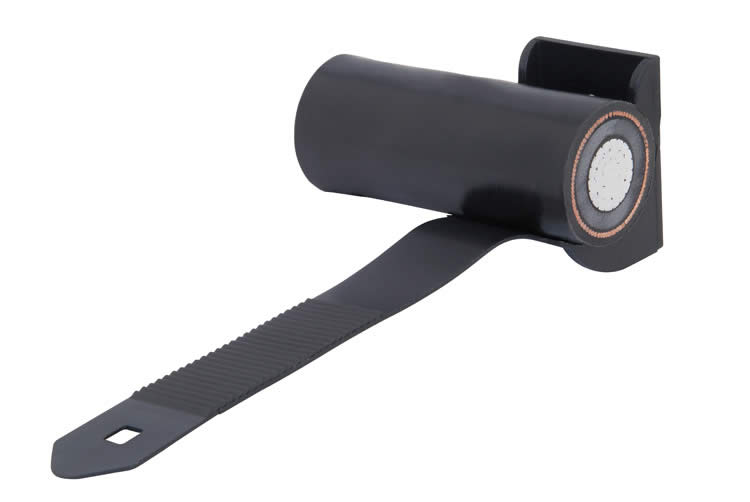

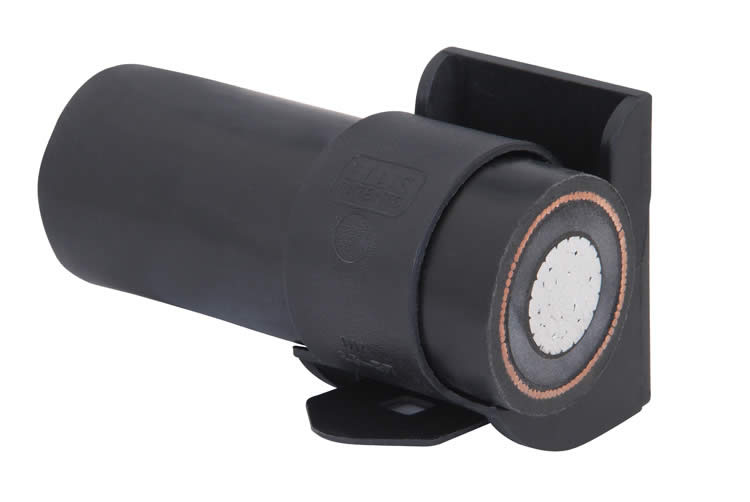

The Elite Range-Taking Cable Cleat is practical and easy to install with a screw fix to wall, skirting or tray.
Large range take with only four sizes of cleat to cover cables from 9.5mm to 52.0mm.
Fully releasable strap, allowing ease of re-installation.
Available in black or white polypropylene and black nylon (LSF)
Replace X in Part No. below for material suffix: (B) Black Polypropylene, (W) White Polypropylene, or (LSF) Black Nylon

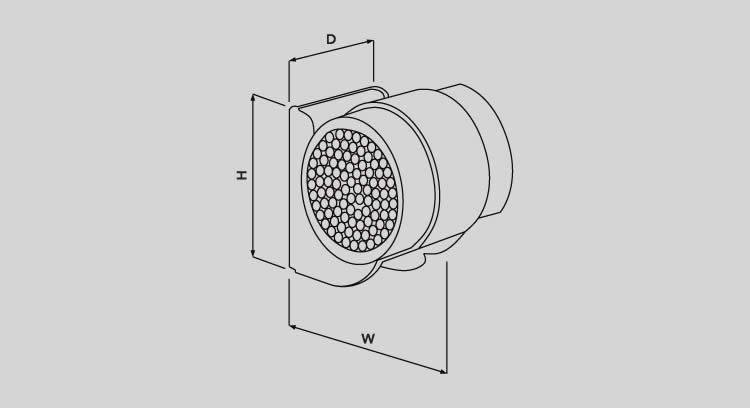

| Part No. | Cable Range Diameter (mm) | Dimensions (mm) | Fixing Hole | Pack Qty | Weight (g) | ||||
|---|---|---|---|---|---|---|---|---|---|
| MIN | MAX | W (Max) | H | D | B/W | LSF | |||
| 15.1X | 9.5 | 16.0 | 27.0 | 37.0 | 25.0 | 1 x M6 | 100 | 6.0 | 8.0 |
| 15.2X | 15.0 | 25.0 | 36.0 | 37.0 | 32.0 | 1 x M6 | 50 | 8.0 | 10.9 |
| 15.3X | 23.0 | 37.0 | 48.0 | 48.0 | 36.0 | 1 x M6 | 50 | 15.0 | 18.1 |
| 15.4X | 24.0 | 52.0 | 65.0 | 65.0 | 40.0 | 1 x M6 | 25 | 20.0 | 25.5 |
ELITE RANGE-TAKER CABLE CLAMP
Data sheet DS62E
TESTING SUMMARY
Elite Range Taking Cable Cleats have been tested in line with the European Standard of 'Cable Cleats for Electrical Installations' BS EN 50368:2003. Typical results are detailed below:
| PROPERTIES | BS EN 50368 CLASSIFICATION CLASSIFICATION CLAUSES | UNITS/ CLASSIFICATION B | UNITS/ CLASSIFICATION CLASSIFICATION LSF | TEST DATA B | TEST DATA DATA LSF |
|---|---|---|---|---|---|
| Cleat Type | 6.1, 6.1.2 | Non Metallic | Non Metallic | - | - |
| Impact Resistance | 6.2, 6.2.2, 6.2.5 | Medium 0.54kg @ 400mm to Heavy 1.7kgs @ 300mm | Light 0.27kg @ 400mm to Very Heavy 6.7kgs @ 300mm | PASS | PASS |
| Resistance to Electromechanical Force | 6.3 | Refer to Ellis | Refer to Ellis | Refer to Ellis | Refer to Ellis |
| Temperature for Permanent Application | 6.4 | oC | oC | -40 to +40 | -40 to +40 |
| Needle Flame Test | 6.5, 10 | Application Time (seconds) | Application Time (seconds) | >5 | >20 |
| Lateral Load Test | 9.2 | Newtons (N) | Newtons (N) | 150 | 325 |
| Axial Movement Test | 9.5 | Newtons (N) | Newtons (N) | 50 | 50 |
