DUCT CHAIRS
Data sheet DS55E

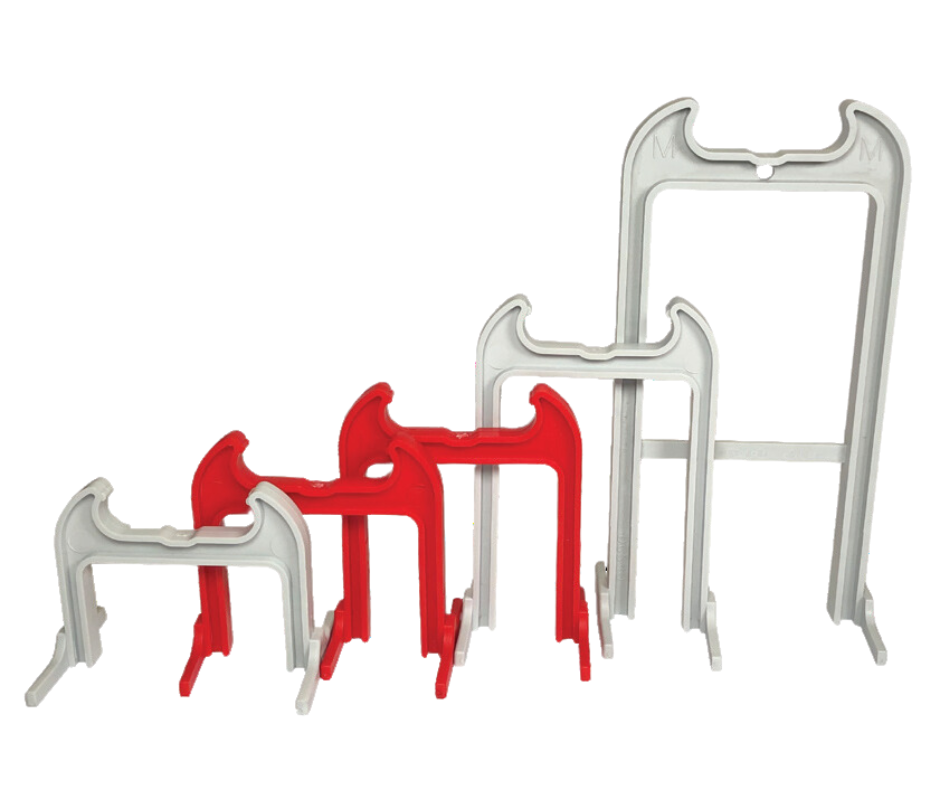

Used to support duct in the construction of post-tensioned concrete
Multiple size options with over 400 variations available to suit your requirements:
Available in 43mm, 46.5mm, 70mm and 86mm wide duct
Height options from 25 - 430mm
Grey, red or black colour options
Designed and manufactured in the UK
Stand markers are also available - see our full range of construction products

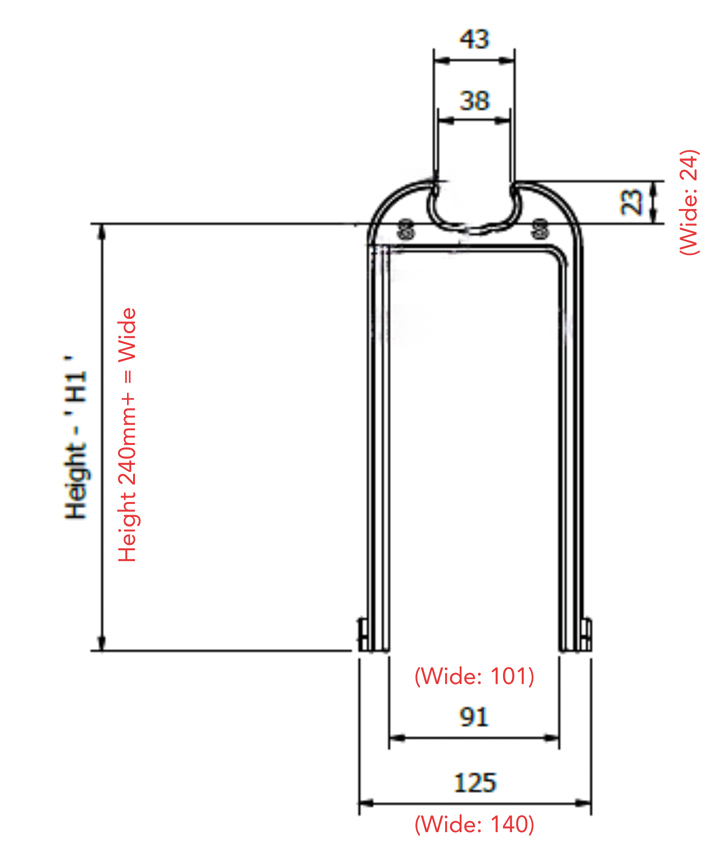

Small Duct Chair

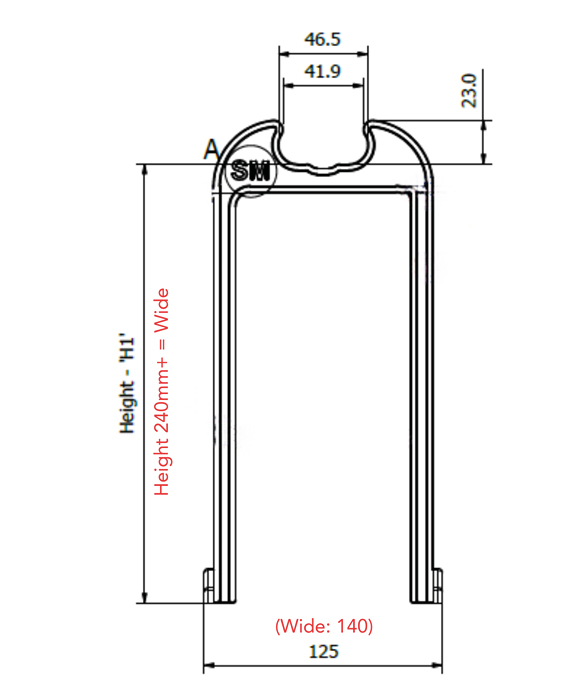

Small / Medium Duct Chair

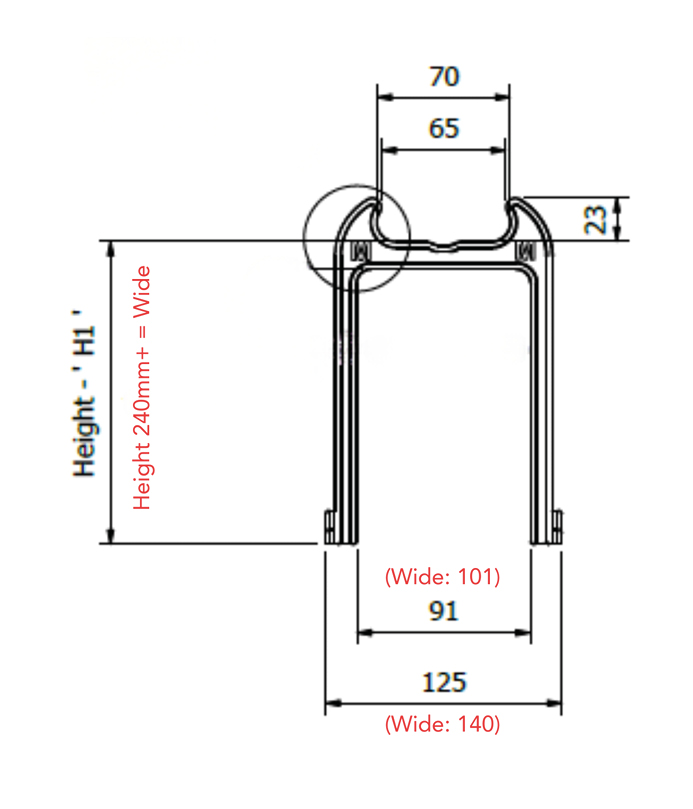

Medium Duct Chair

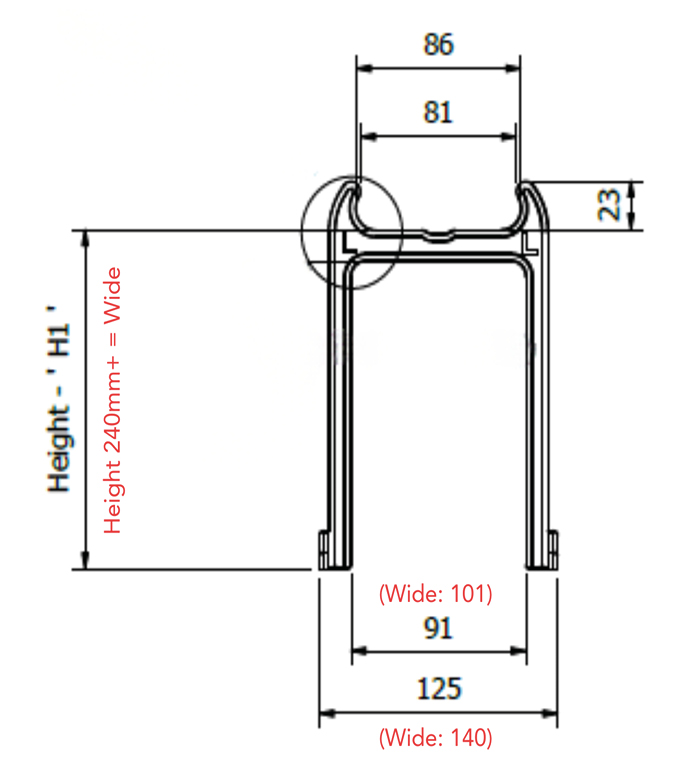

Large Duct Chair
DUCT CHAIRS
Data sheet DS55E
| Size (see p1 for width details) | Small - 43mm | Small/Medium - 46.5mm | Medium - 70mm | Large - 86mm |
|---|---|---|---|---|
| Height H1 (mm) | Part No. (small) | Part No. (small-medium) | Part No. Medium | Part No. Large |
| 25 | DC025-SG | — | DC025-MG | DC025-LG |
| 30 | DC030-SG | DC030-SMX | DC030-MG | DC030-LG |
| 35 | DC035-SG | — | DC035-MG | DC035-LG |
| 40 | DC040-SG | DC040-SMX | DC040-MG | DC040-LG |
| 45 | DC045-SG | — | DC045-MG | DC045-LG |
| 50 | DC050-SG | DC050-SMX | DC050-MG | DC050-LG |
| 55 | DC055-SG | — | DC055-MG | DC055-LG |
| 60 | DC060-SG | DC060-SMX | DC060-MG | DC060-LG |
| 65 | DC065-SG | — | DC065-MG | DC065-LG |
| 70 | DC070-SG | DC070-SMX | DC070-MG | DC070-LG |
| 75 | — | — | DC075-MG | — |
| 80 | DC080-SG | DC080-SMX | DC080-MG | DC080-LG |
| 85 | — | — | DC085-MG | — |
| 90 | DC090-SG | DC090-SMX | DC090-MG | DC090-LG |
| 95 | — | — | DC095-MG | — |
| 100 | DC100-SG | DC100-SMX | DC100-MG | DC100-LG |
| 105 | — | — | DC105-MG | — |
| 110 | DC110-SG | DC110-SMX | DC110-MG | DC110-LG |
| 115 | — | — | DC115-MG | — |
| 120 | DC120-SG | DC120-SMX | DC120-MG | DC120-LG |
| 125 | — | — | DC125-MG | — |
| 130 | DC130-SG | DC130-SMX | DC130-MG | DC130-LG |
| 135 | — | — | DC135-MG | — |
| 140 | DC140-SG | DC140-SMX | DC140-MG | DC140-LG |
| 145 | — | — | DC145-MG | — |
| 150 | DC150-SG | DC150-SMX | DC150-MG | DC150-LG |
| 160 | DC160-SG | DC160-SMX | DC160-MG | DC160-LG |
| 170 | DC170-SG | DC170-SMX | DC170-MG | DC170-LG |
| 180 | DC180-SG | DC180-SMX | DC180-MG | DC180-LG |
| 190 | DC190-SG | DC190-SMX | DC190-MG | DC190-LG |
| 200 | DC200-SG | DC200-SMX | DC200-MG | DC200-LG |
| 210 | DC210-SG | DC210-SMX | DC210-MG | DC210-LG |
| 220 | DC220-SG | DC220-SMX | DC220-MG | DC220-LG |
| 230 | DC230-SG | DC230-SMX | DC230-MG | DC230-LG |
| 240 | DC0240-SG | DC240-SMX | DC0240-MG | DC240-LG |
| 250 | DC0250-SG | DC250-SMX | DC0250-MG | DC250-LG |
| 260 | DC0260-SG | DC260-SMX | DC0260-MG | DC260-LG |
| 270 | DC0270-SG | DC270-SMX | DC0270-MG | DC270-LG |
| 280 | DC0280-SG | DC280-SMX | DC0280-MG | DC280-LG |
| 290 | DC0290-SG | DC290-SMX | DC0290-MG | DC290-LG |
| 300 | DC0300-SG | DC300-SMX | DC0300-MG | DC300-LG |
| 310 | DC0310-SG | DC310-SMX | DC0310-MG | DC310-LG |
| 320 | DC0320-SG | DC320-SMX | DC0320-MG | DC320-LG |
| 330 | DC0330-SG | DC330-SMX | DC0330-MG | DC330-LG |
| 340 | DC0340-SG | DC340-SMX | DC0340-MG | DC340-LG |
| 350 | DC0350-SG | DC350-SMX | DC0350-MG | DC350-LG |
| 360 | DC0360-SG | DC360-SMX | DC0360-MG | DC360-LG |
| 370 | DC0370-SG | DC370-SMX | DC0370-MG | DC370-LG |
| 380 | DC0380-SG | DC380-SMX | DC0380-MG | DC380-LG |
| 390 | DC0390-SG | DC390-SMX | DC0390-MG | DC390-LG |
| 400 | DC0400-SG | DC400-SMX | DC0400-MG | DC400-LG |
| 410 | DC0410-SG | DC410-SMX | DC0410-MG | DC410-LG |
| 420 | DC0420-SG | DC420-SMX | DC0420-MG | DC420-LG |
| 430 | DC0430-SG | DC430-SMX | DC0430-MG | DC430-LG |
