CONVEX CABLE HANGERS
Data sheet DS09E

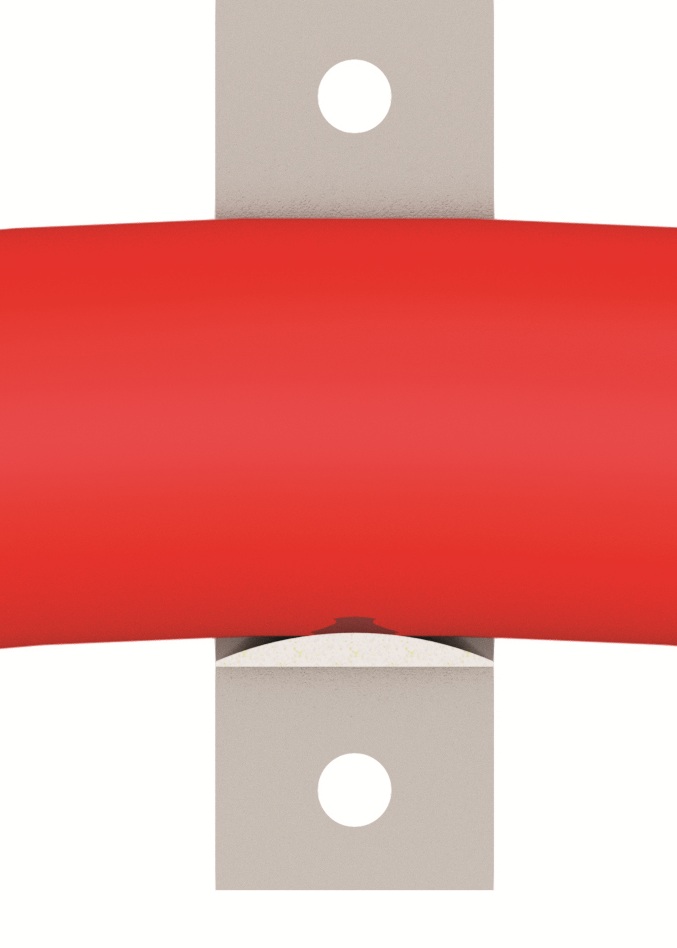

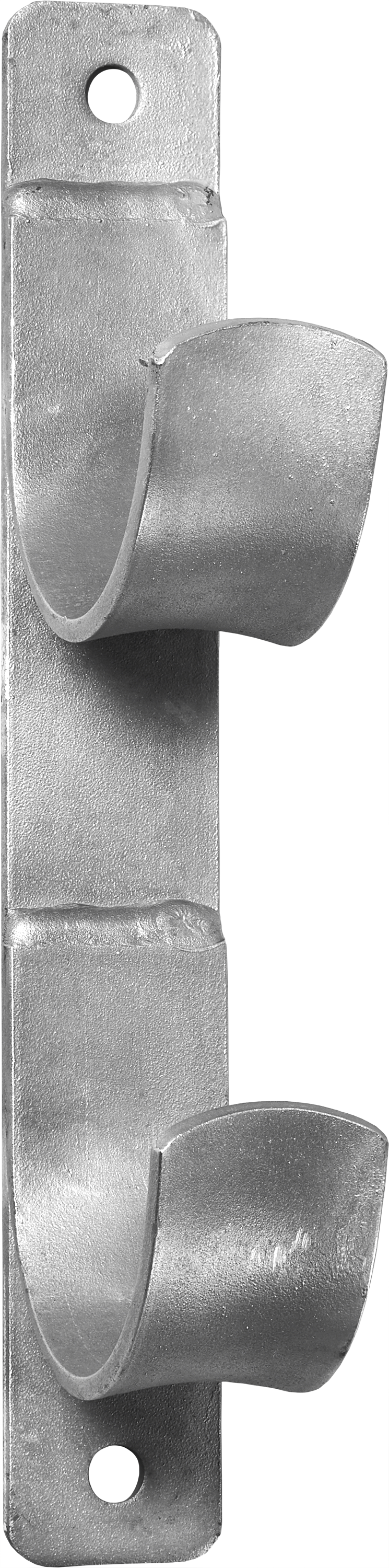

Convex Cable Hanger profile is kinder to the cable
Rounded corners reduce snagging points
Convex cable hanger profile reduces the risk of cable damage and facilitates cable sag
Spin galvanised (55micron) to BS EN ISO 1461
Wide range of sizes available
Custom designs available
Curved back plate to suit tunnel walls available
Bespoke designs and configurations can be offered
| Part Number | Cable Ø mm | No. of Hooks | Dimensions (mm) | Fixing Holes Ø (mm) | Weight (g) | SWL* (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | W | ||||||
| CH1W1 | Up to 50 | 1 | 145 | 105 | 20 | 105 | n/a | 37 | 40 | 11 | 490 | 200 |
| CH2W1 | Up to 50 | 2 | 235 | 195 | 20 | 105 | 90 | 37 | 40 | 11 | 890 | 200 |
| CH3W1 | Up to 50 | 3 | 325 | 285 | 20 | 105 | 90 | 37 | 40 | 11 | 1270 | 200 |
| CH4W1 | Up to 50 | 4 | 415 | 375 | 20 | 105 | 90 | 37 | 40 | 11 | 1670 | 200 |
| CH5W1 | Up to 50 | 5 | 505 | 465 | 20 | 105 | 90 | 37 | 40 | 11 | 2070 | 200 |
| CH6W1 | Up to 50 | 6 | 595 | 555 | 20 | 105 | 90 | 37 | 40 | 11 | 2460 | 200 |
| CH1W2 | 51-75 | 1 | 170 | 130 | 20 | 130 | n/a | 50 | 50 | 13 | 750 | 250 |
| CH2W2 | 51-75 | 2 | 295 | 255 | 20 | 130 | 125 | 50 | 50 | 13 | 1390 | 250 |
| CH3W2 | 51-75 | 3 | 420 | 380 | 20 | 130 | 125 | 50 | 50 | 13 | 2050 | 250 |
| CH4W2 | 51-75 | 4 | 545 | 505 | 20 | 130 | 125 | 50 | 50 | 13 | 2690 | 250 |
| CH5W2 | 51-75 | 5 | 670 | 630 | 20 | 130 | 125 | 50 | 50 | 13 | 3340 | 250 |
| CH6W2 | 51-75 | 6 | 795 | 755 | 20 | 130 | 125 | 50 | 50 | 13 | 3990 | 250 |
| CH1W3 | 76-100 | 1 | 185 | 145 | 20 | 145 | n/a | 62 | 50 | 13 | 870 | 250 |
| CH2W3 | 76-100 | 2 | 345 | 305 | 20 | 145 | 160 | 62 | 50 | 13 | 1670 | 250 |
| CH3W3 | 76-100 | 3 | 505 | 465 | 20 | 145 | 160 | 62 | 50 | 13 | 2490 | 250 |
| CH4W3 | 76-100 | 4 | 665 | 625 | 20 | 145 | 160 | 62 | 50 | 13 | 3290 | 250 |
| CH5W3 | 76-100 | 5 | 825 | 785 | 20 | 145 | 160 | 62 | 50 | 13 | 4100 | 250 |
| CH6W3 | 76-100 | 6 | 985 | 945 | 20 | 145 | 160 | 62 | 50 | 13 | 4900 | 250 |

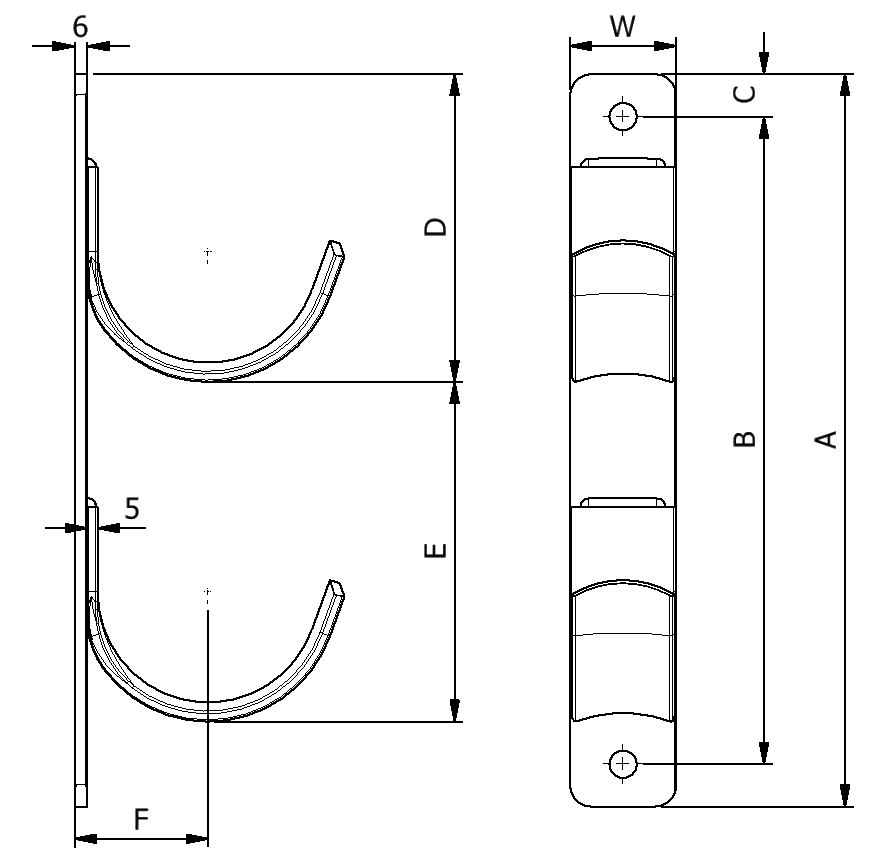

Load Capacity: Brackets with multiple hook configurations are designed to operate with all hooks carrying their maximum load. As standard, parts are spin-galvanised to BS EN 1461 (55microns); thicker galvanising options are available on request. Dimensions are provided with a tolerance; refer to detailed drawings for details.
