CONCRETE STUB TUBE

Data sheet DS48E

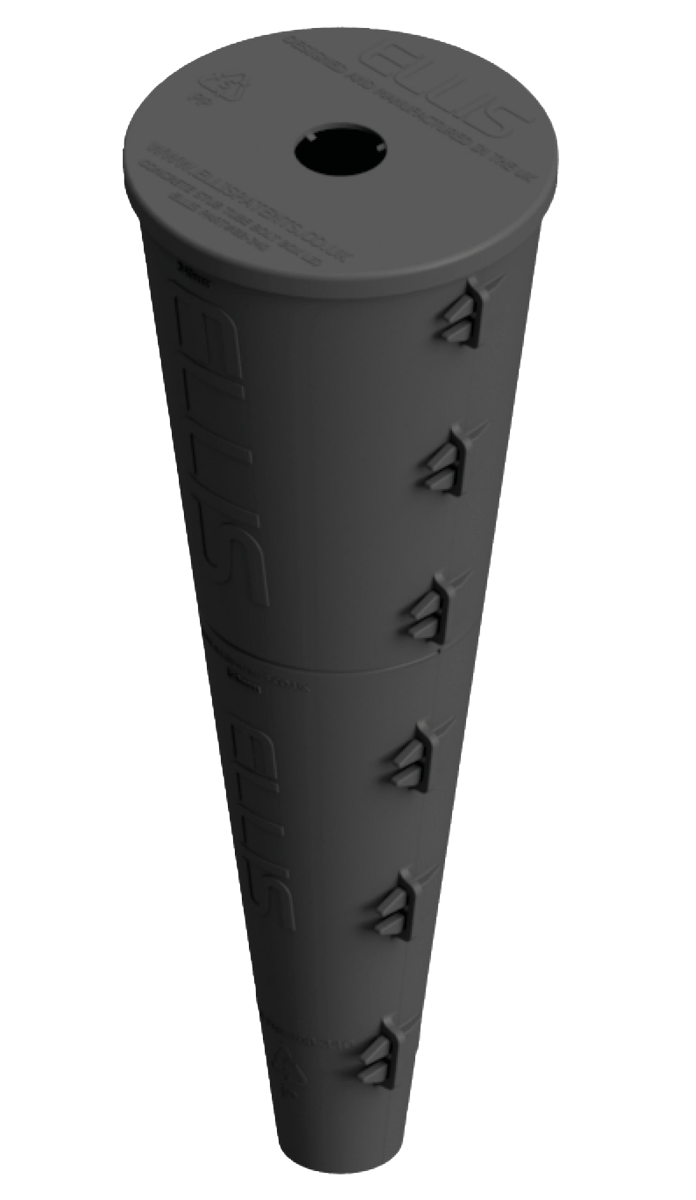

  • Ellis Stub Tube is designed to be placed over a bolt when pouring concrete slabs.

  • This forms a void, which then allows the bolt to move around once the concrete is set to make fixing steel structures in place easier.

  • The waterproof material means there is no distortion of the void which may occur if traditional cardboard tubes are used.

  • The addition of a lid also means it is highly unlikely for concrete to be accidentally poured into the void.

  • Once the steel is correctly fitted, the bolt remains firmly locked in place with the tube left in; it can then be filled with concrete or grout to be permanently fixed in place.

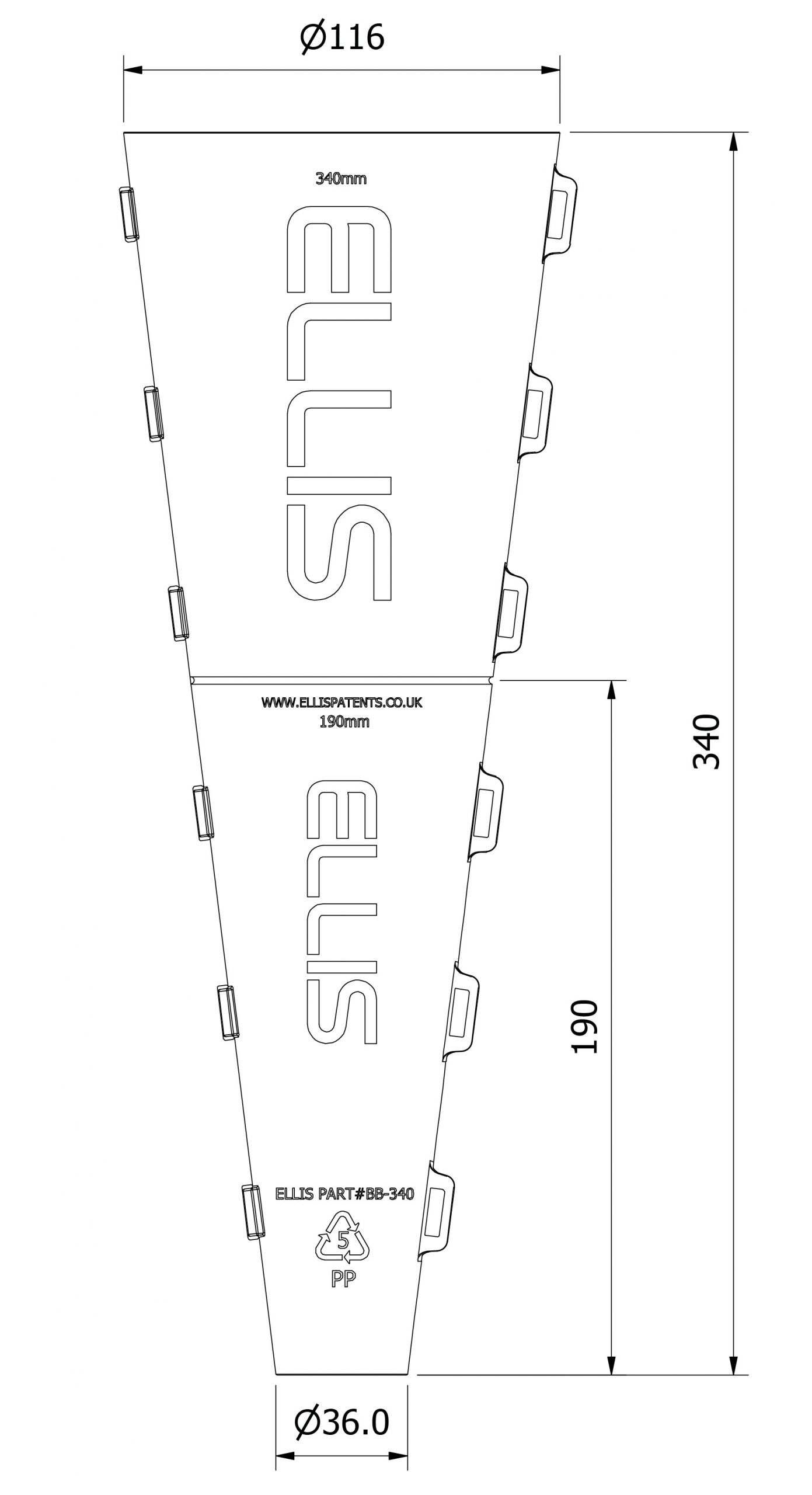

  • The stub tube is designed to accommodate a bolt up to M24 and be used at full size for 340mm fixings or cut down for 190mm fixings.

  • Manufactured in the UK from recycled, water-resistant polypropylene polymer

  • Part number BB-340

THE STUB TUBE IS ASSEMBLED WITH THE HOLD DOWN BOLT STANDING ON THE PLATE WASHER. THE TUBE IS LEFT IN PLACE WHILST THE SURROUNDING CONCRETE SETS. THE BOLT IS RETAINED BUT CAN MOVE DURING INSTALLATION OF ABOVE GROUND STEELWORK. POST INSTALLATION THE STUB TUBE CAN BE FILLED WITH GROUT.
THE STUB TUBE IS ASSEMBLED WITH THE HOLD DOWN BOLT STANDING ON THE PLATE WASHER. THE TUBE IS LEFT IN PLACE WHILST THE SURROUNDING CONCRETE SETS. THE BOLT IS RETAINED BUT CAN MOVE DURING INSTALLATION OF ABOVE GROUND STEELWORK. POST INSTALLATION THE STUB TUBE CAN BE FILLED WITH GROUT.

This data sheet is subject to change without notice. The information provided has been generated in laboratory conditions, as such results in use may vary.
