CENTAUR™ TERMINATION CLAMP
Data sheet DS60E

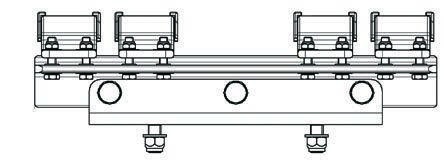

Bespoke Clamp 1 used in the Woodhead Tunnel, UK.
Bespoke Clamp 1 used in the Woodhead Tunnel, UK.
Heavy duty termination clamp for single cable formation
Specifically designed for rigid cable restraint at joints, terminations and sharp bends, where high axial thrust restraint is required
Typical axial force resistance: 10kN – 60kN but the product is designed to project specific requirements
6000 series aluminium
Low Smoke and Fume Zero Halogen (LSF0H), Phosphorus Free polymeric liner, incorporated into the over-strap, for increased cable protection
Designed, tested and manufactured in accordance with IEC 61914
Bespoke Clamp 2 used in a Hydroelectric Power Tunnel, USA.
Bespoke Clamp 2 used in a Hydroelectric Power Tunnel, USA.
Typical variable design parameters. All can be adjusted to suit load requirements and cable pressure constraints.
