CENTAUR™ SINGLE
Data sheet DS14E
Centaur Single
Single cable formation
Heavy duty cable saddle for single cable formation
Specially designed for High Voltage, sagged cable systems
Curved saddle accommodates cable thermal expansion and sag
Flared edges prevent cable damage
Cable range of Ø100mm – Ø162mm (non-standard sizes available on request)
Available in standard lengths of 400, 600 and 800mm to allow for different cable diameters and mounting centres. Non-standard lengths available on request
6000 series aluminium
A4-70 stainless steel fixings with isolation washers to prevent galvanic corrosion
Low Smoke and Fume Zero Halogen (LSF0H), Phosphorus Free polymeric liner, incorporated into the over-strap, for increased cable protection
Optional compatible cable rollers available
Designed, tested and manufactured in accordance with IEC 61914
Where :XXX add the saddle length required either 400, 600 or 800.
| Part No. | Cable Range | Dimensions (mm) | Base Fixing Type | |||
|---|---|---|---|---|---|---|
| Min Ø (mm) | Max Ø (mm) | W | H | Saddle Length | ||
| CS100-112:XXX | 100 | 112 | 244 | 205 | 400, 600 or 800 | 1 x M16 |
| CS108-122:XXX | 108 | 122 | 244 | 212 | 400, 600 or 800 | 1 x M16 |
| CS120-132:XXX | 120 | 132 | 244 | 221 | 400, 600 or 800 | 1 x M16 |
| CS128-142:XXX | 128 | 142 | 244 | 233 | 400, 600 or 800 | 1 x M16 |
| CS140-152:XXX | 140 | 152 | 272 | 240 | 400, 600 or 800 | 1 x M16 |
| CS148-162:XXX | 148 | 162 | 272 | 253 | 400, 600 or 800 | 1 x M16 |
CENTAUR™ SINGLE
Data sheet DS14E
Testing Summary
Centaur cable saddles have been tested in line with the International Standard “Cable Cleats for Electrical Installations”. As IEC 61914 is part of the low voltage directive it is not possible to follow the standard exactly and thus deviations have been made in areas. Typical results are detailed below, please note that these testing values are maximums and safety factors appropriate to your application should be used:
| Property Classification | Clause IEC 61914 | Units / Classification | Test Data |
|---|---|---|---|
| Cleat type | 6.1.3 | Composite | - |
| Temp. for permanent application | 6.2 | °C | -40 to +60 |
| UV resistance | 6.5.1.2 | UV resistant | Metallic frame shields all polymer components. |
| Corrosion resistance | 6.5.2.2 | Refer to Ellis | - |
| Impact rating | 6.3.5 | Very heavy | Pass |
| Flame propagation test | 10.0, 10.1 | Application time ≥30s | Pass |
| Axial load rating | 6.4.3, 9.4 | Newtons (N) | Refer to Ellis |
| Lateral load rating | 6.4.2, 9.3 | Newtons (N) | Refer to Ellis |
| Resistance to electromechanical force (short circuit testing) | 6.4, 6.4.4, 9.5 | Centaur Cleats at 8.4m with straps at midpoints | 163kA (Report No. KEMA 313-08) Cable=Ø140mm |
Project specific designs: Centaur can be adapted to suit specific project requirements, as such Ellis can alter the design to suit certain load or functionality requirements. Please contact Ellis for further details.

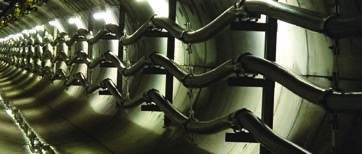

Project specific design
Project specific design
