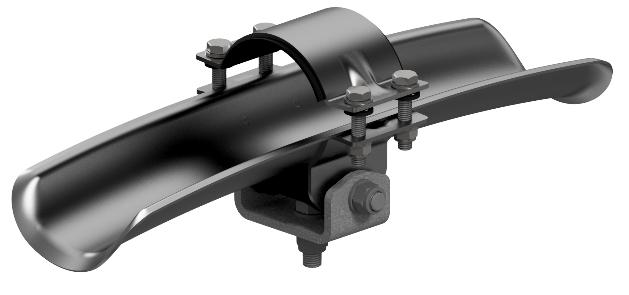

CENTAUR®+ SADDLE
Data sheet DS71E
Heavy duty cable saddle for single cable formation
Specially designed curved saddle for high-voltage, sagged cable systems
Curved saddle accommodates cable thermal expansion and sag
Pivoting base mount allows for greater installation flexibility.
Cable range of Ø85mm – Ø152mm (non-standard sizes available on request)
Available in standard length 600mm. Non-standard lengths available on request
316L Stainless steel saddle and over strap construction.
Galvanised steel pivot base and base fixings to match support structure
Low Smoke and Fume Zero Halogen (LSF0H), Phosphorus Free polymeric liner, incorporated into the over-strap, for increased cable protection
Designed, tested and manufactured in accordance with IEC 61914

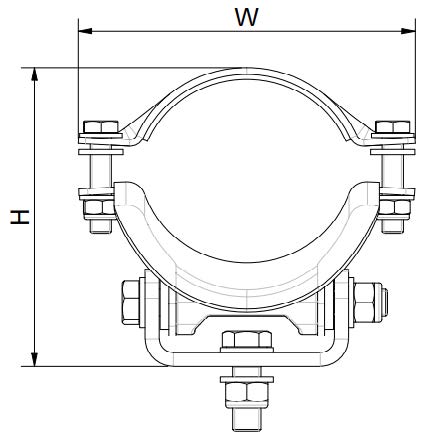

| Part Number | Cable Range | Dimensions (max) (mm) | Base Fixing | |||
|---|---|---|---|---|---|---|

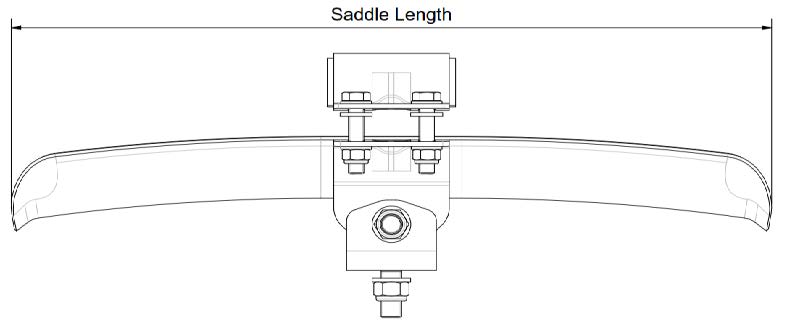

| Min Ø | Max Ø | W | H | Saddle Length | ||
| CS+1-600-4 | 85 | 107 | 175 | 176 | 600 | 1 x M16 |
| CS+2-600-4 | 100 | 122 | 190 | 191 | 600 | 1 x M16 |
| CS+3-600-4 | 115 | 137 | 205 | 206 | 600 | 1 x M16 |
| CS+4-600-4 | 130 | 152 | 220 | 221 | 600 | 1 x M16 |
CENTAUR®+ SADDLE
Data sheet DS71E
TESTING SUMMARY
Centaur®+ cable saddles have been tested in line with the International Standard ‘Cable Cleats for Electrical Installations’. As IEC 61914 is part of the low voltage directive, it is not possible to follow the standard exactly and thus deviations have been made in certain areas. Typical results are detailed below; please note that these testing values are maximums and safety factors appropriate to your application should be used:
| Property | Classification Clause IEC 61914 | Units / Classification | Test Data |
|---|---|---|---|
| Cleat Type | 6.1.3 | Composite | - |
| Temp. for Permanent Application | 6.2 | °c | Refer to Ellis |
| UV Resistance | 6.5.1.2 | UV Resistant | Refer to Ellis |
| Corrosion Resistance | 6.5.2.2 | - | Refer to Ellis |
| Impact Rating | 6.3.5 | Very Heavy | Pass |
| Flame Propogation Test | 10.0, 10.1 | Refer to Ellis | Refer to Ellis |
| Axial Load Rating | 6.4.3, 9.4 | Newtons (N) | Refer to Ellis |
| Lateral Load Rating | 6.4.2, 9.3 | Newtons (N) | Refer to Ellis |
| Resistance to Electromechanical Force (short circuit testing) | 6.4, 6.4.4, 9.5 | Spaced at 7m with intermediate strap at 3.5m. Vertical orientation. | 168kA Cat. 2 (Report No. #260218-1007)CABLE OD= Ø102mm Phase Separation =350mm |
| Resistance to Electromechanical Force (short circuit testing) | 6.4, 6.4.4, 9.5 | Spaced at 7m with intermediate strap at 3.5m. Horizontal orientation. | 153kA Cat. 2 (Report No. #260217-1007)CABLE OD= Ø102mm Phase Separation =350mm |
| Resistance to Electromechanical Force (short circuit testing) | 6.4, 6.4.4, 9.5 | Spaced at 7m with intermediate strap at 3.5m. Spaced Trefoil orientation. | 154kA Cat. 2 (Report No. #260218-1004)CABLE OD= Ø102mm Phase Separation =350mm |
