CENTAUR™ INTERMEDIATE STRAP
Data sheet DS37E

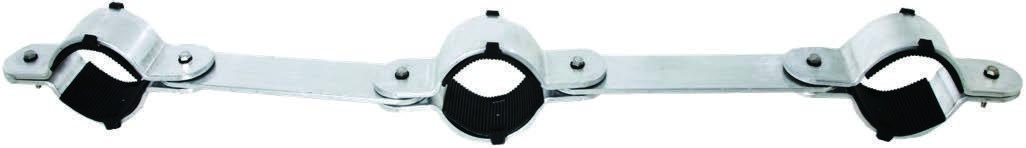

Centaur Intermediate Strap

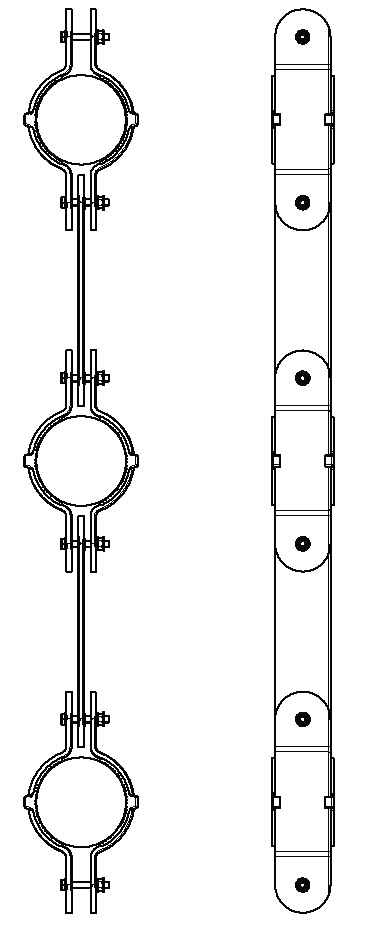

Single cable formation
Heavy duty intermediate strap, for use in conjunction with the Centaur Single Cable Saddle
Specially designed for High Voltage, sagged cable systems
Maintains phase spacing between single cables and offers additional short circuit restraint
Typical cable size range Ø100mm – Ø162mm (special sizes are available)
6000 series aluminium
Designed, tested and manufactured in accordance with IEC 61914
Consult Ellis for size and phase spacing availability

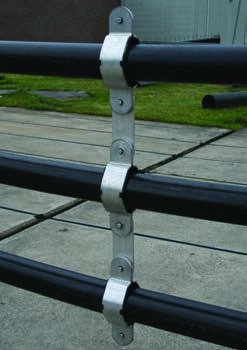

Application image

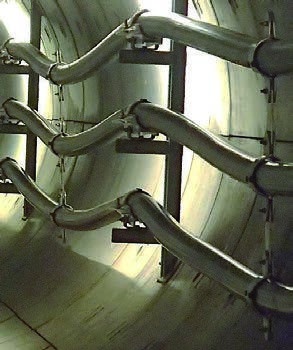

Application image
CENTAUR™ INTERMEDIATE STRAP
Data sheet DS37E
Testing Summary
Centaur cable saddles have been tested in line with the International Standard “Cable Cleats for Electrical Installations”. As IEC 61914 is part of the low voltage directive it is not possible to follow the standard exactly and thus deviations have been made in areas. Typical results are detailed below, please note that these testing values are maximums and safety factors appropriate to your application should be used:
| Property Classification | Clause IEC 61914 | Units / Classification | Test Data |
|---|---|---|---|
| Cleat type | 6.1.3 | Composite | - |
| Temp. for permanent application | 6.2 | °C | -40 to +60 |
| UV resistance | 6.5.1.2 | UV resistant | Metallic frame shields all polymer components. |
| Corrosion resistance | 6.5.2.2 | Refer to Ellis | - |
| Impact rating | 6.3.5 | Very heavy | Pass |
| Flame propagation test | 10.0, 10.1 | Application time ≥30s | Pass |
| Axial load rating | 6.4.3, 9.4 | Newtons (N) | Refer to Ellis |
| Lateral load rating | 6.4.2, 9.3 | Newtons (N) | Refer to Ellis |
| Resistance to electromechanical force (short circuit testing) | 6.4, 6.4.4, 9.5 | Centaur cleats at 8.4m with straps at midpoints | 163kA (Report no. KEMA-313-08) Cable = Ø140mm |
