CABLE GUIDE CLAMP
Data sheet DS19E
Cable Guide Clamp

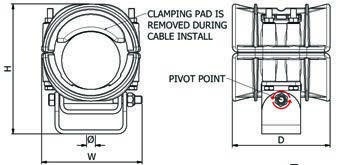

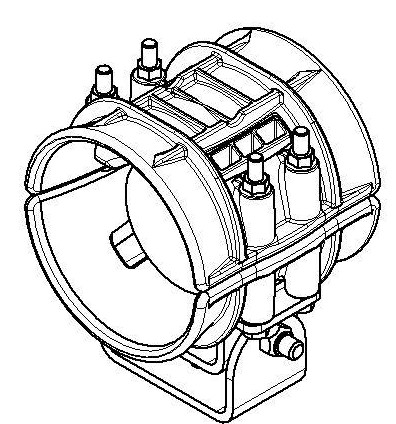

Cable guide and clamp
Single cable formation
Standard duty cable clamp for single cable formation
Unique combination of cable guide and cable clamp, designed to support HV cable pulling before offering short circuit protection once in situ
Cable range of Ø100mm – Ø170mm (non-standard sizes available on request)
High strength Glass Filled Nylon clamp (UL94 V0)
Low Smoke and Fume Zero Halogen (LSF0H), Phosphorus Free polymeric insert
Galvanised steel gimballed mount
Fixing options: one M16 fixing
Designed, tested and manufactured in accordance with IEC 61914
| Part No. | Cable Range | Dimensions (mm) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|
| Min Ø | Max Ø | W | H | D | Fixing Holes | ||
| CGC100-112-G | 100 | 112 | 185 | 260 | 200 | 1 x M16 | 5.2 |
| CGC110-122-G | 110 | 122 | 185 | 255 | 200 | 1 x M16 | 5.2 |
| CGC120-135-G | 120 | 135 | 203 | 281 | 200 | 1 x M16 | 5.5 |
| CGC130-145-G | 130 | 145 | 203 | 283 | 200 | 1 x M16 | 5.5 |
| CGC140-160-G | 140 | 160 | 262 | 324 | 250 | 1 x M16 | 6.25 |
| CGC150-170-G | 150 | 170 | 262 | 324 | 250 | 1 x M16 | 6.25 |
CABLE GUIDE CLAMP
Data sheet DS19E
Testing Summary
Cable Guide Clamp has been tested in line with the International Standard “Cable Cleats for Electrical Installations” IEC 61914. As IEC 61914 is part of the low voltage directive it is not possible to follow the standard exactly and thus deviations have been made in areas. Typical results are detailed below, please note that these testing values are maximums and safety factors appropriate to your application should be used:
| Property Classification | Clause IEC 61914 | Units / Classification | Test Data |
|---|---|---|---|
| Cleat type | 6.1.3 | Composite | - |
| Temp. for permanent application | 6.2 | °C | -40 to +60 |
| Corrosion resistance | 6.5.2.2 | High | 192h salt spray test - ISO 9227 |
| Impact rating | 6.3.5 | Very heavy | Pass |
| Flame propagation test | 10.0, 10.1 | Application time ≥30s | Pass |
| Axial load rating | 6.4.3, 9.4 | Newtons (N) | Refer to Ellis |
| Lateral load rating | 6.4.2, 9.3 | Newtons (N) | Refer to Ellis |
| Resistance to electromechanical force (short circuit testing) | 6.4, 6.4.5, 9.5 | Cleats at 1m intervals (withstanding more than one short circuit) | 114kA (Report No. PDL-15.025.1) Cable OD= Ø117mm Phase spacing = 200mm |
