CABLE CORE TWISTER

Data sheet DS74E

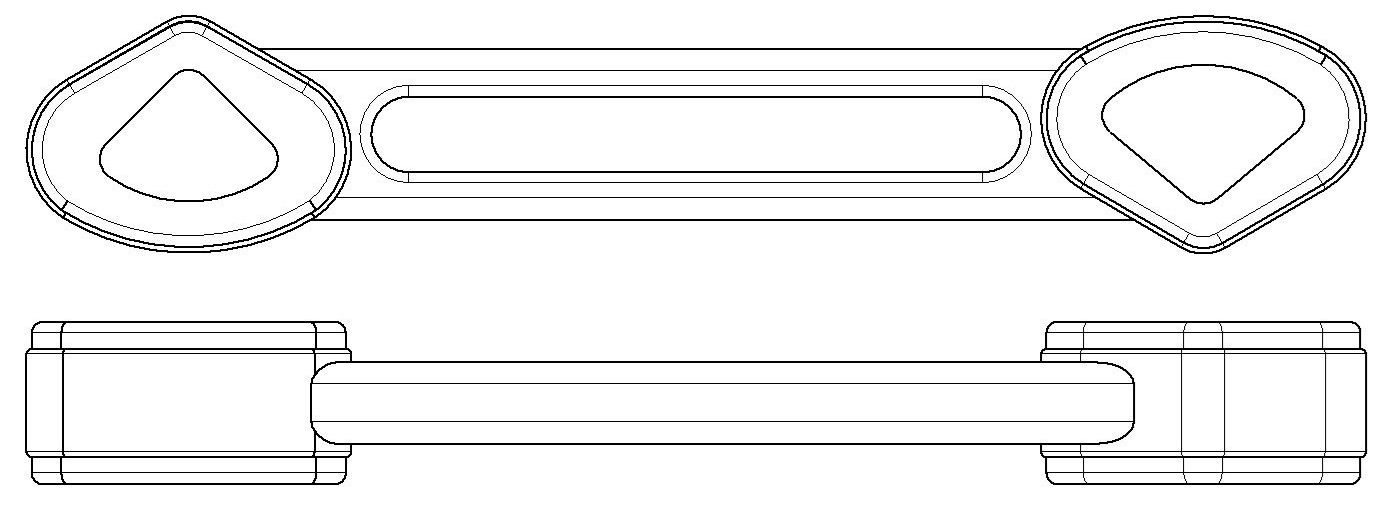

Individual part drawings can be supplied on request

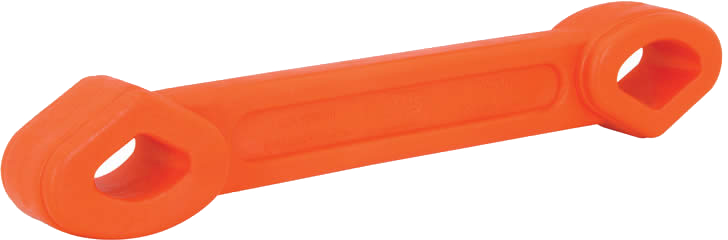

Manufactured in Acetal (International Orange)
Used to manipulate bare or insulated cable cores, aligning them prior to jointing
Recess shapes suit the different segmental profiles of 3- and 4-core cable
Supplied in accordance with IEC 60900

PART NO.	CORES	CORE RANGE SIZE (mm²)	PACK QTY.	WEIGHT (g)
110-95C	3	70 BARE X 95 BARE	10	54
110-X01C	3	95 BARE X 95 INS	10	51
110-120C	3	70 BARE X 120 BARE	10	51
110-120IC	3	70 INS X 120 INS	10	49
110-X06C	3	120 BARE X 120 INS	10	48
110-X07C	3	185 BARE X 185 INS	10	148
110-240C	3	185 BARE X 240 BARE	10	146
110-300C	3	185 BARE X 300 BARE	10	147
110-300IC	3	185 INS X 300 INS	10	139
110-X08C	3	300 BARE X 300 INS	10	138
110-X09C	3	70 BARE X 70 INS	10	53
110-X10C	3	95 BARE X 185 BARE	10	154
110-X11C	3	95 INS X 185 INS	10	149
110-X03C	3 & 4	3C 95 INS X 4C 95 INS	10	50
110-X04C	3 & 4	3C 185 INS X 4C 185 INS	10	145
110-X05C	3 & 4	3C 300 INS X 4C 240 INS	10	135
110-X12C	3 & 4	3C 300 BARE X 4C 300 BARE	10	141
110-X13C	3 & 4	3C 300 INS X 4C 300 INS	10	134
110-41C	4	95 BARE X 95 INS	10	51
110-42C	4	185 INS X 240 INS	10	142
110-43C	4	185 BARE X 240 BARE	10	150
110-44C	4	185 INS X 300 INS	10	141
110-45C	4	185 INS X 185 BARE	10	170
110-46C	4	300 INS X 300 BARE	10	160
110-48C	4	120 INS X 185 INS	10	150
110-X02C	4	185 BARE X 300 BARE	10	146
110-X14C	4	95 BARE X 185 BARE	10	155
110-X15C	4	95 INS X 185 INS	10	149
110-16C	4	95 INS STRANDED X 95 INS SOLID	10	51
110-17C	4	300 INS STRANDED X 300 INS SOLID	10	140
