APACHE PIPE CLAMPS
Data sheet DS63E

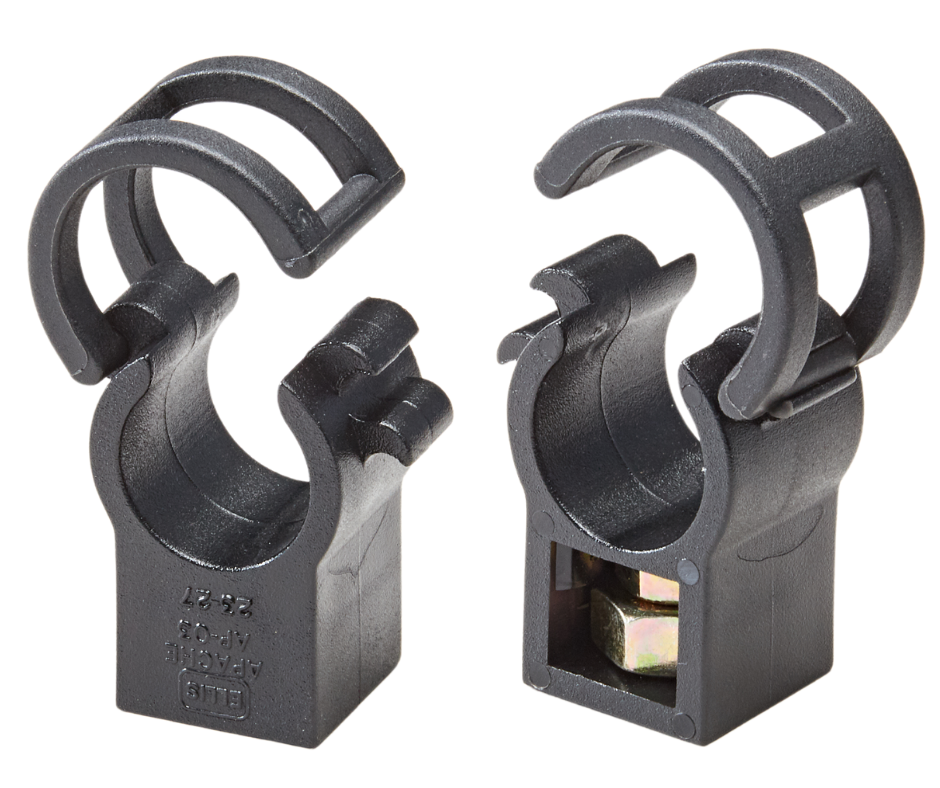

Pipe Hanger Clamps

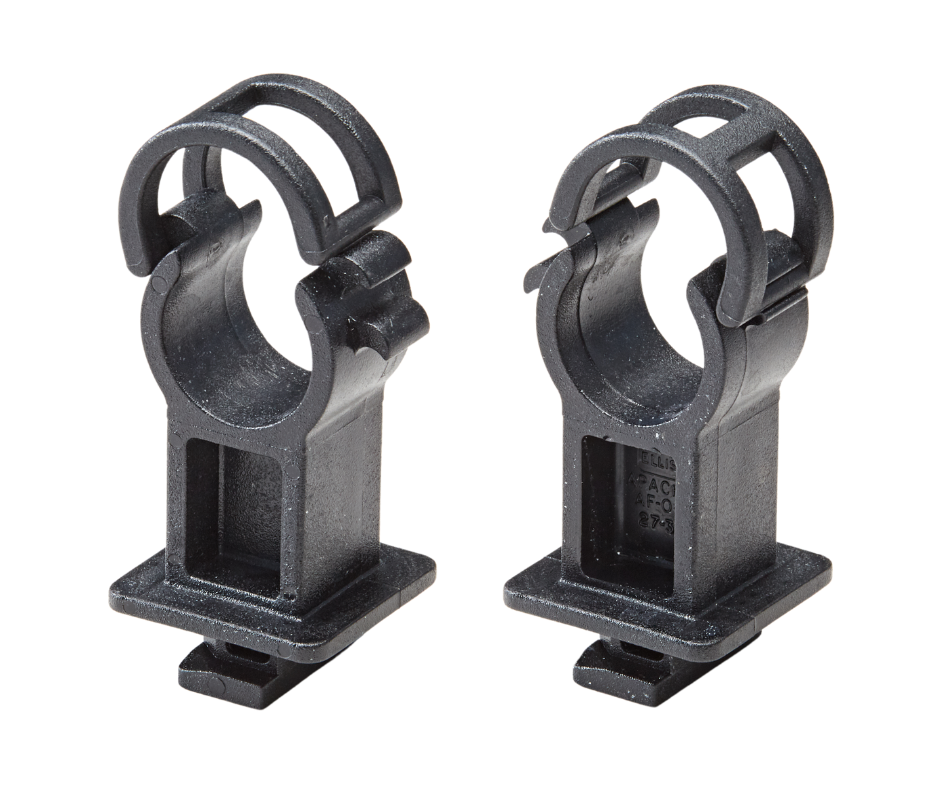

Framing Channel Clamps
Available in two product groups: Pipe Hanger Clamps & Framing Channel Clamps
For metric pipes from 15mm to 171 mm o/d and imperial pipes from 1/2” to 6” bore.
The Ratchet design enables each clamp to accommodate a range of pipe sizes.
16 clamps in each range.
Fits any standard or non-standard pipe.
No loose components; captive over-strap secures pipe.
Very rapid installation.
Good chemical resistance (apply for further details).
Robust design made from black polyamide (material data sheet available upon request).
Continuous safe working temperatures up to 82ºC.

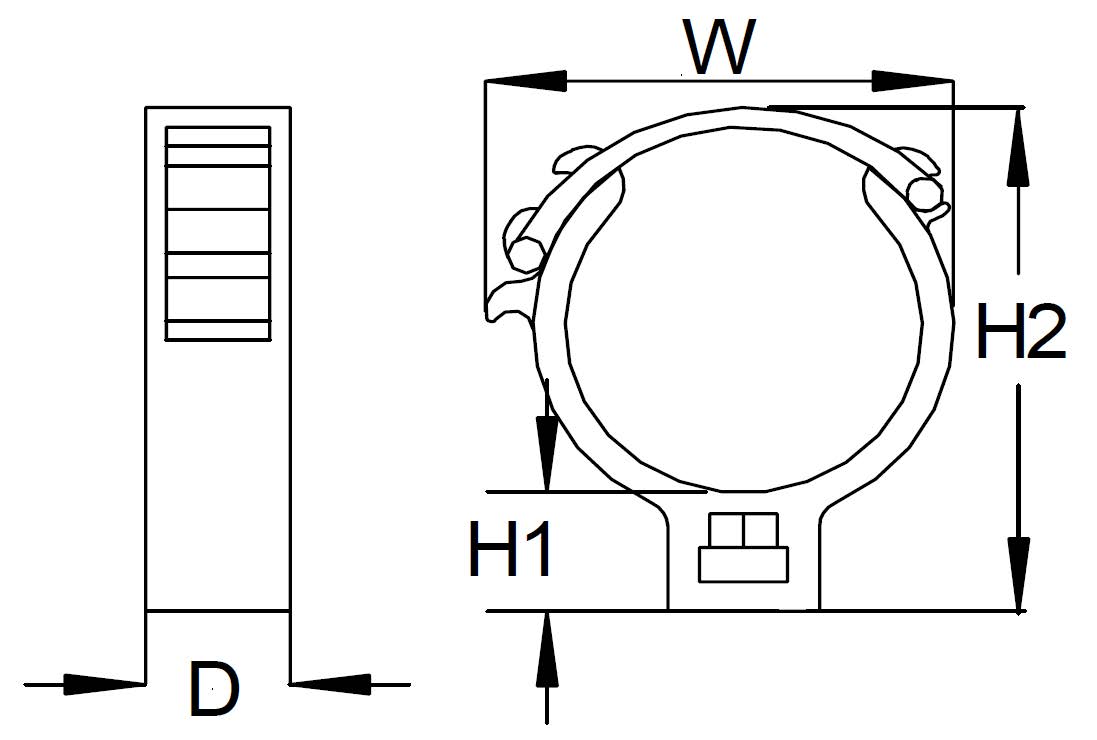

PIPE HANGER CLAMPS
Dual Bossing
15-96mm M8 + M10
96-171mm M10 + M12
| Part No. | Metric Range | Metric Size | Imperial Bore Size | H1 | H2 | W | D | Dual Boss | SWL Kgf |
|---|---|---|---|---|---|---|---|---|---|
| AP-01-00 | 15-18 | 16 | 20 | 45 | 30 | 25 | M8/M10 | 13 | |
| AP-02-00 | 19-22 | 20 | ½" | 20 | 50 | 35 | 25 | M8/M10 | 17 |
| AP-03-00 | 23-27 | 25 | ¾" | 20 | 55 | 40 | 25 | M8/M10 | 23 |
| AP-04-00 | 27-31 | 28 | 22 | 60 | 45 | 25 | M8/M10 | 23 | |
| AP-05-00 | 32-35 | 32 | 1" | 22 | 65 | 45 | 28 | M8/M10 | 31 |
| AP-06-00 | 36-44 | 40 | 1¼" | 23 | 70 | 55 | 28 | M8/M10 | 31 |
| AP-07-00 | 44-52.5 | 50 | 1½" | 23 | 75 | 65 | 28 | M8/M10 | 40 |
| AP-08-00 | 52.5-58 | 55 | 23 | 85 | 70 | 28 | M8/M10 | 47 | |
| AP-09-00 | 58-69 | 63 | 2" | 25 | 90 | 80 | 28 | M8/M10 | 47 |
| AP-10-00 | 69-81 | 75 | 2½" | 25 | 105 | 90 | 30 | M8/M10 | 59 |
| AP-11-00 | 81-96 | 90 | 3" | 28 | 120 | 105 | 30 | M8/M10 | 71 |
| AP-12-00 | 96-108 | 100 | 30 | 140 | 120 | 30 | M10/M12 | 73 | |
| AP-13-00 | 108-122 | 110 | 4" | 30 | 150 | 135 | 30 | M10/M12 | 73 |
| AP-14-00 | 122-138 | 125 | 28 | 165 | 155 | 40 | M10/M12 | 73 | |
| AP-15-00 | 138-145 | 140 | 5" | 32 | 175 | 155 | 40 | M10/M12 | 90 |
| AP-16-00 | 145-171 | 160 | 6" | 35 | 215 | 185 | 40 | M10/M12 | 91 |
APACHE PIPE CLAMPS
Data sheet DS63E

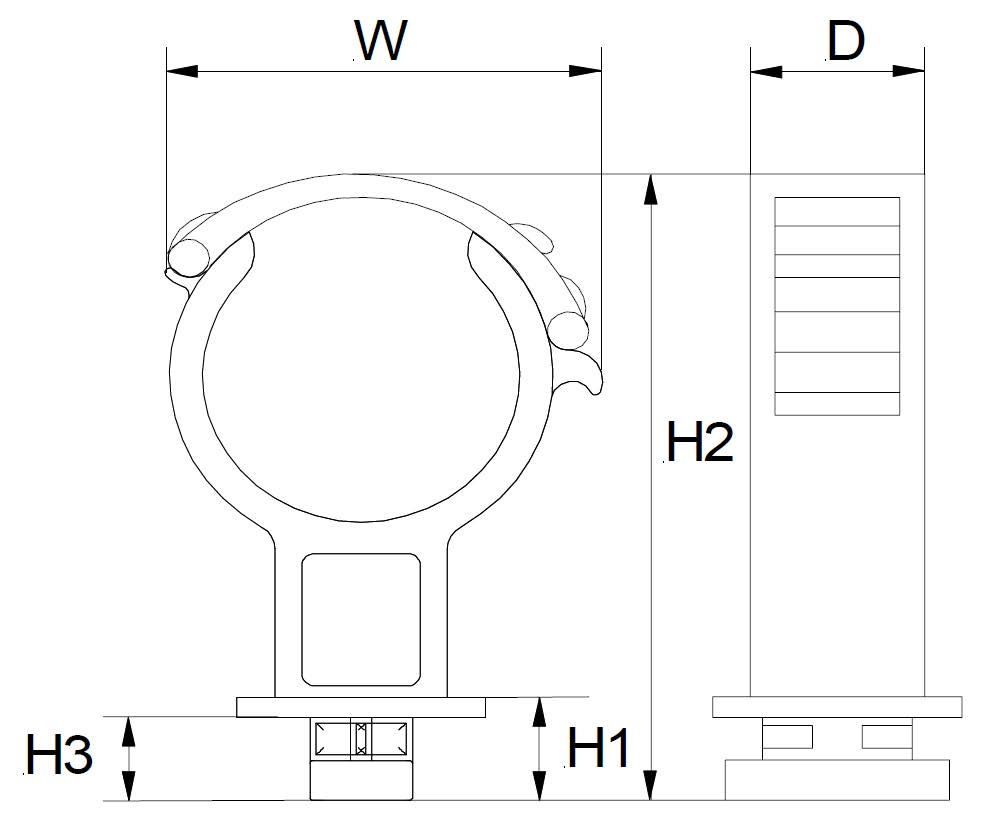

FRAMING CHANNEL CLAMPS
Simple Twist Fit
Fits standard channel 41 x 41 & 41 x 21
Available for non-standard channel upon request
| Part No. | Metric Range | Metric Size | Imperial Bore Size | H1 | H2 | H3 | W | D | Dual Boss | SWL Kgf |
|---|---|---|---|---|---|---|---|---|---|---|
| AF-01-00 | 15-18 | 16 | - | 34 | 73 | 11.5 | 30 | 25 | M8/M10 | 13 |
| AF-02-00 | 19-22 | 20 | ½" | 34 | 77 | 11.5 | 35 | 25 | M8/M10 | 17 |
| AF-03-00 | 23-27 | 25 | ¾" | 34 | 80 | 11.5 | 40 | 25 | M8/M10 | 23 |
| AF-04-00 | 27-31 | 28 | - | 34 | 85 | 11.5 | 45 | 25 | M8/M10 | 23 |
| AF-05-00 | 32-35 | 32 | 1" | 34 | 90 | 14 | 45 | 28 | M8/M10 | 31 |
| AF-06-00 | 36-44 | 40 | 1¼" | 34 | 95 | 14 | 55 | 28 | M8/M10 | 31 |
| AF-07-00 | 44-52.5 | 50 | 1½" | 34 | 105 | 14 | 65 | 28 | M8/M10 | 40 |
| AF-08-00 | 52.5-58 | 55 | - | 34 | 115 | 14 | 70 | 28 | M8/M10 | 47 |
| AF-09-00 | 58-69 | 63 | 2" | 34 | 120 | 14 | 80 | 28 | M8/M10 | 47 |
| AF-10-00 | 69-81 | 75 | 2½" | 34 | 130 | 14 | 90 | 30 | M8/M10 | 59 |
| AF-11-00 | 81-96 | 90 | 3" | 34 | 145 | 14 | 105 | 30 | M8/M10 | 71 |
| AF-12-00 | 96-108 | 100 | - | 34 | 160 | 17 | 120 | 30 | M10/M12 | 73 |
| AF-13-00 | 108-122 | 110 | 4" | 34 | 170 | 17 | 135 | 30 | M10/M12 | 73 |
| AF-14-00 | 122-138 | 125 | - | 34 | 190 | 17 | 155 | 40 | M10/M12 | 73 |
| AF-15-00 | 138-145 | 140 | 5" | 34 | 200 | 17 | 155 | 40 | M10/M12 | 90 |
| AF-16-00 | 145-171 | 160 | 6" | 34 | 225 | 17 | 185 | 40 | M10/M12 | 91 |
Apache Pipe Clamps are designed to secure the pipe whilst allowing for a small amount of expansion. However, if a ‘floating’ installation is required, as with the Mapress system, the following sizes are recommended:
